CTI 2500-C200 C200 System CPU Control Processor Module

Description

Product Introduction

The CTI 2500-C200 is a central processing unit designed for the Control Technology Inc. 2500 Series system architecture—a drop-in replacement and upgrade path for classic Texas Instruments (TI) and Siemens 505 PLCs. Operating within the 2500 Series backplane, this CPU executes ladder logic, relay control, loop algorithms, and mathematical functions with sub-millisecond scan times.

Engineered to preserve legacy 505 installations without costly recabling, the 2500-C200 features 128K of user memory and built-in communication ports for local operator interfaces, programming software, and field networks. It provides backward compatibility with existing 505 I/O modules, power supplies, and bases while delivering modern processing speeds and expanded memory headroom.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical batch chemical plant operating on a legacy Texas Instruments 545 controller. During a routine shift change, the CPU drops offline with an unrecoverable Memory Parity Fault and darkens the entire reaction deck. The OEM vendor suggests a complete hardware platform migration costing $150,000 and two weeks of downtime for panel rewiring and software translation. Dropping a CTI 2500-C200 onto the existing 505 backplane lets you reload the original program via Workshop or TISOFT software in under 30 minutes, bringing the batch reactor back online without changing a single field wire.

• Chemical & Petrochemical Processing: Controls multi-vessel batching, loop timing, and raw material metering across legacy 505 racks.
• Water & Wastewater Treatment: Handles pump station sequencing, flow totalization, and remote telemetry communication over serial and Ethernet links.
• Food & Beverage Packaging: Coordinates high-speed sorting, bottling, and palletizing conveyors using rapid digital scan execution.
• Legacy 505 Plant Modernization: Serves as a cost-effective CPU upgrade for plants replacing failed TI 505/545 CPUs while retaining existing field wiring harnesses.

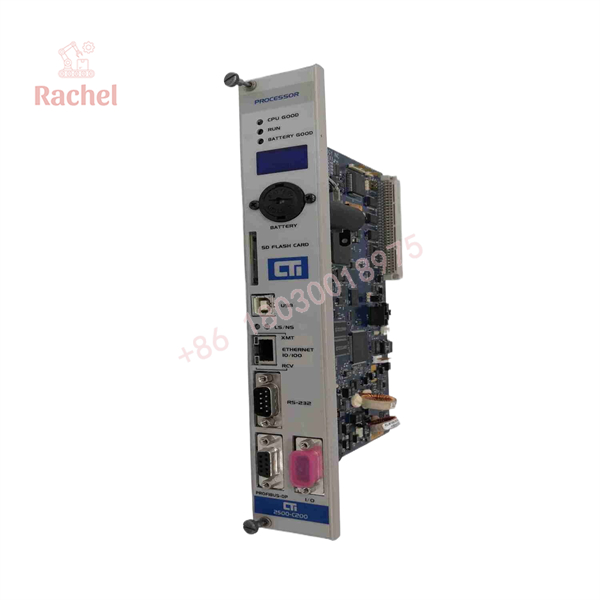

2500-C200

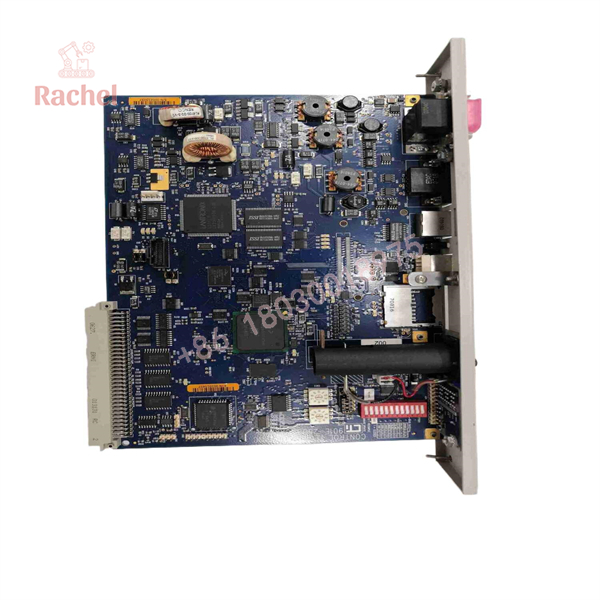

2500-C200

Transparency SOP: Quality Assurance & Testing

We test our PLC processor hardware on actual live backplane rigs. Here is how every CTI 2500-C200 CPU is qualified before dispatch:

1. Inbound Visual & Physical Audit: Inspection of gold-plated backplane connectors, faceplate latches, housing plastic, and serial port pins.
2. Power-On & Diagnostic Self-Test: Module is seated in a 2500 Series base to verify proper bootup sequences, LED status lights (RUN, HALT, BAT), and internal power rail health.
3. Memory Stress & Clear Test: Battery-backed RAM and Flash memory undergo full read/write/clear cycles to rule out memory sector corruption.
4. Logic Program Execution: A multi-loop test program is loaded via programming software to verify scan times, timer/counter execution, and math instructions under simulated load.
5. Backplane & Communication Port Verification: Serial ports are tested using active communication handshakes (Modbus/NITP) alongside discrete and analog I/O rack sweeping.
6. Anti-Static Protective Packaging: Unit is fitted with port covers, wrapped in heavy ESD shielding bags, and packed in thick foam shipping cartons.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

In our field experience, replacing legacy 505-style controllers can trip up even experienced automation engineers. Watch out for these traps:

• ⚠️ Check Memory Dip Switches / Jumper Settings: Before sliding the replacement CPU into the rack, double-check the dip switches on the side of the 2500-C200. Setting the wrong baud rate or memory configuration will prevent the CPU from communicating with your programming software.
• ❗ Backup Battery Status: Never ship or store a CPU with an old battery connected. Verify that a fresh RAM backup battery is installed before downloading your program—otherwise, a temporary power drop on site will wipe the controller memory clean!
• ⚠️ Firmware & Software Compatibility: Ensure your programming tool (e.g., FastTrak SoftWorkshop or CTI WorkShop for 505) supports the firmware revision running on the 2500-C200. Older software versions may fail to recognize expanded memory registers.
• ❗ Backplane Power Margin: If you are swapping an old TI 545 for a CTI 2500-C200, verify your 2500/505 power supply capacity. A degraded power supply that barely ran the old processor will dip under load and cause intermittent CPU watchdog resets.

Frequently Asked Questions (FAQ)

Q: Is the CTI 2500-C200 a direct drop-in replacement for a Texas Instruments 545 or Siemens 505 CPU?

A: Yes. The 2500-C200 is designed to slide directly into existing TI/Siemens 505 bases, interface with existing 505 I/O modules, and execute programs created in 505 programming software without requiring harness changes.

Q: What programming software do I need to connect to the CTI 2500-C200?

A: You can use standard 505 programming tools, including CTI WorkShop for 505, FastTrak SoftWorkshop, or legacy TISOFT / APT software packages via the serial or network interface ports.

Q: How do I recover my program if the internal RAM battery dies?

A: If the battery dies while the CPU is unpowered, volatile RAM is cleared. However, if you saved the program to non-volatile EEPROM/Flash memory, the CPU can reload the logic configuration automatically upon power restoration.

Q: What is the primary difference between CTI 2500 Series CPUs and modern Rockwell or Siemens PLCs?

A: CTI 2500 Series CPUs preserve the legacy 505 form factor and memory architecture, allowing users to maintain existing control systems without replacing field wiring or redesigning cabinets, whereas Rockwell or Siemens migrations require complete hardware overhauls.

Q: What warranty coverage comes with this CPU module?

A: We supply this unit with a full 12-month operational warranty. If it experiences any functional failure or hardware defect under standard operating parameters within one year, we provide a prompt replacement or repair.
