Description
Core Product Summary
The Delta DOP-110WS is a 10.1-inch touchscreen human-machine interface in the DOP-100 Series Advanced Narrow Frame range. It provides a programmable operator interface for machine monitoring, parameter entry, alarm handling, and production-data display. The TFT LCD has a resolution of 1024 × 600 pixels, displays 65,536 colors, and uses a four-wire resistive touchscreen.
An 800 MHz ARM Cortex-A8 processor, 512 MB RAM, and 256 MB flash memory support the HMI application. Built-in 10/100 Mbps Ethernet, serial communication interfaces, and USB host and device connections provide options for controller communication and project maintenance. The panel is configured using DOPSoft 4.0 and operates from a nominal 24 V DC supply. Its narrow-frame construction is intended for panel-mounted operator stations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Delta Electronics |
| Model | DOP-110WS |
| Product type | Touchscreen human-machine interface |
| Series / category | DOP-100 Series, Advanced Narrow Frame Type |
| Display | 10.1-inch TFT LCD |
| Resolution | 1024 × 600 pixels |
| Display colors | 65,536 |
| Active display area | 225.52 × 128.10 mm |
| Backlight | LED |
| Backlight brightness | 450 cd/m² |
| Touch technology | Four-wire resistive |
| Processor | ARM Cortex-A8, 800 MHz |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Ethernet | One port, 10/100 Mbps auto-sensing |
| Serial interface standards | RS-232, RS-422, RS-485 |
| USB | One USB 2.0 device port and one USB 2.0 host port |
| Real-time clock | Built-in |
| Supply voltage | 24 V DC, −15% to +15% |
| Power consumption | Maximum 11 W, without peripheral devices connected |
| Cooling | Natural air circulation |
| Operating temperature | 0 to +50 °C |
| Storage temperature | −20 to +60 °C |
| Ambient humidity | 10–90% RH at 0–40 °C; 10–55% RH at 41–50 °C |
| Installation environment | Pollution Degree 2 |
| Weight | Approximately 1,100 g |
| Configuration software | DOPSoft 4.0 |
The specifications above apply to the DOP-110WS within the DOP-100 Advanced Narrow Frame range.
Engineering Selection Highlights
- 1024 × 600 resolution on a 10.1-inch display → establishes the screen size and pixel layout for operator-page design.
- Four-wire resistive touch input → identifies the touch technology to use when specifying operator interaction requirements.
- One auto-sensing 10/100 Mbps Ethernet port → provides a wired network interface for supported controller communication and configured network services.
- RS-232, RS-422, and RS-485 interfaces → provide serial connection options; the electrical standard must match the connected equipment and its selected communication driver.
- Maximum 11 W consumption without peripherals → provides the HMI-only power figure; connected USB equipment must be considered separately in the power budget.
- DOPSoft 4.0 configuration → establishes the engineering environment for screen development, communication setup, alarms, and data-management functions.
- Natural cooling and a 0 to +50 °C operating range → make cabinet temperature and airflow relevant installation checks.

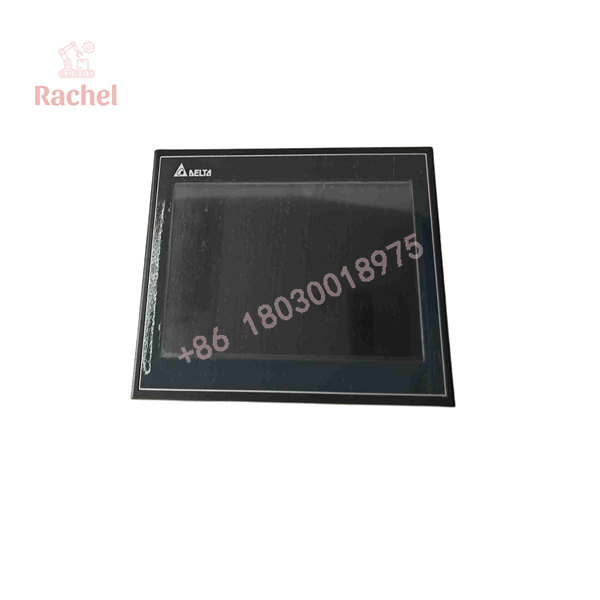

DOP-110WS

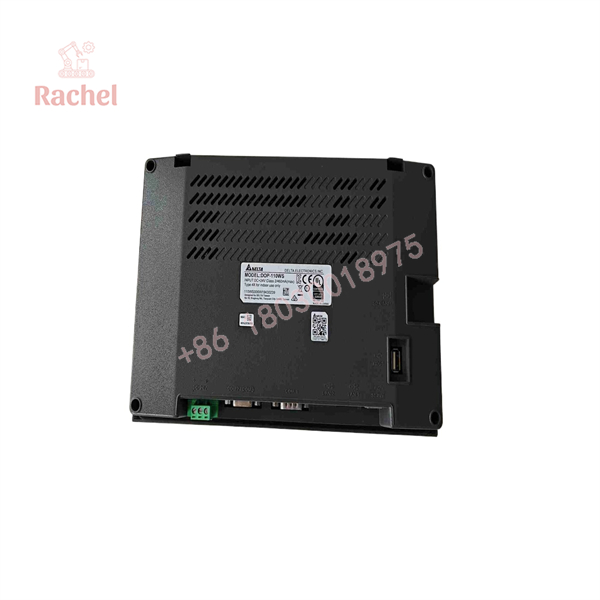

DOP-110WS
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Engineering software | DOPSoft 4.0 | Used to develop the operator interface and configure communication and application functions. |
| Ethernet connection | One 10/100 Mbps auto-sensing port | Provides the physical network connection; controller communication also depends on the configured driver. |
| Serial communication | RS-232, RS-422, and RS-485 interface options | Match the selected interface, cable connections, and communication settings to the target device. |
| USB connections | One USB 2.0 host and one USB 2.0 device port | Host and device connections have different roles and are not interchangeable. |
| Power supply | 24 V DC, −15% to +15%; isolated supply recommended | Size the supply for the HMI and any connected peripheral load. |
| Remote access | Built-in VNC server | Supports remote monitoring and operation through a VNC client when configured. |
| File services | Built-in FTP server | Supports file transfer for functions including recipe updates and historical-data backup. |
These integration relationships are documented for the Ethernet-equipped DOP-100 range, including the DOP-110WS.
Dimensions, Mounting & Connection Notes
| Item | Installation Data |
|---|---|
| Front dimensions, W × H | 270 × 180.9 mm |
| Supported panel thickness | 1.6–6 mm |
| Mounting arrangement | Panel-mounted, narrow-frame construction |
| Weight | Approximately 1.1 kg |
| Cooling method | Natural air circulation |
| Operating ambient | 0 to +50 °C |
The front dimensions describe the visible panel footprint, not the enclosure opening. The mounting arrangement must accommodate the specified panel thickness and allow the HMI to operate within its ambient-temperature limits.
The IP65 protection applies to the front case; it should not be interpreted as an IP65 rating for every exposed surface or rear connection. The unit is intended for indoor installation.
Detailed Product Overview
The DOP-110WS combines a widescreen operator display with communication and data-management functions. Its place within the DOP-100 Advanced Narrow Frame range is important for identification: it is a W-type operator panel, rather than one of the larger M-type multimedia models. Multimedia capabilities documented specifically for M-type panels should not be assumed to apply to this model.
The 1024 × 600 display resolution defines the working canvas for the HMI project. Screen layouts, navigation controls, alarm lists, and trend displays must be arranged within that pixel area. The four-wire resistive touchscreen provides the local input method, while the 65,536-color TFT display presents the configured graphics and operating values.
Communication selection requires more than identifying a connector. The panel provides Ethernet and serial interfaces, but a working connection also requires the corresponding application configuration. In engineering terms, the physical interface, selected controller driver, device addressing, and communication settings must form a consistent connection. An Ethernet port alone does not establish compatibility with every Ethernet-equipped controller.
The DOPSoft environment supports functions beyond live value display. Alarms can include trigger, recovery, and acknowledgement information; historical-data functions support recorded-data review; and recipes organize parameter sets. Account and authority settings allow access to be differentiated between users. These functions depend on how the project is configured rather than appearing automatically in every application.
For networked maintenance, the built-in VNC server supports remote viewing and operation. A documented lock function can prevent remote operation during local use while retaining remote monitoring. The FTP server provides a separate route for transferring supported files and backing up application records.
Electrical and enclosure planning remain essential boundaries. The 11 W maximum consumption figure excludes peripheral devices, and natural air circulation is the specified cooling method. The power supply and cabinet arrangement therefore need to account for connected loads and the actual temperature around the installed panel.
Applications & System Role
The DOP-110WS serves as the operator-facing interface in a machine-control architecture. Its configured screens present equipment data and provide touch-operated controls, while communication links exchange application data with connected control equipment. DOPSoft supports screen elements, alarm handling, historical-data display, recipes, and user-authority management.
A technical-fit scenario is a cabinet-mounted operator station requiring a 10.1-inch widescreen display together with Ethernet and serial connectivity. Its recipe and history functions support applications that need parameter-set management and review of recorded operating data. These are supported functional uses, not claims about specific customer installations.
FAQ
What is the Delta DOP-110WS?
The Delta DOP-110WS is a 10.1-inch touchscreen HMI in the DOP-100 Series Advanced Narrow Frame range. It provides a programmable interface for operator control, machine monitoring, alarms, and data display.
What are its display resolution and touch technology?
It has a 1024 × 600-pixel TFT LCD with 65,536 colors and a four-wire resistive touchscreen. The specified backlight brightness is 450 cd/m².
Does the DOP-110WS have Ethernet?
Yes. It has one auto-sensing 10/100 Mbps Ethernet port for supported communication and configured network functions.
Which software is used to configure it?
DOPSoft 4.0 is the documented HMI programming software. It supports screen development, communication configuration, alarms, recipes, historical data, and user-authority functions.
What power supply does it require?
It requires 24 V DC with a permitted variation of −15% to +15%. Maximum power consumption is 11 W without connected peripherals, and an isolated power supply is recommended.
Does it support remote monitoring?
Yes. Its built-in VNC server supports remote monitoring and operation through a VNC client. The lock function can restrict remote users to monitoring during local operation.
What operating temperature must the cabinet accommodate?
The operating range is 0 to +50 °C. The panel uses natural air circulation, so the temperature around the installed HMI must remain within that range.
Is the entire HMI enclosure IP65?
No. The documented IP65 protection concerns the front case, not the rear connections or every surface of the installed unit.
