Core Product Summary
The Dimetix DLS-C30 (also written DLS-C 30, part number 500621) is a non-contact laser distance sensor designed for industrial distance measurement. It measures absolute distances on natural surfaces up to approximately 65 m and on reflective foil up to 150 m.
The sensor provides typical accuracy of ±3 mm and typical repeatability of ±0.5 mm at a maximum measuring rate of 6 Hz. It features a visible red Class 2 laser, IP65 metal housing, and standard interfaces including RS-232/RS-422 and a programmable analog output. The DLS-C series reached End of Life status in 2019; successor Dimetix series are available for new projects.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Non-contact laser distance sensor |
| Manufacturer | Dimetix AG |
| Model | DLS-C30 / DLS-C 30 |
| Part Number | 500621 |
| Measuring Range (natural surfaces) | 0.05 … ~65 m |
| Measuring Range (reflective foil) | ~25 … 150 m |
| Typical Accuracy | ±3 mm |
| Typical Repeatability | ±0.5 mm |
| Resolution | 0.1 mm |
| Max. Measuring Rate | 6 Hz |
| Laser | Visible red, Class 2 (<1 mW) |
| Operating Temperature | –10 … +50 °C |
| Degree of Protection | IP65 |
| Power Supply | 9 … 30 V DC |
| Approx. Dimensions | 150 × 80 × 55 mm |
| Approx. Weight | 690 g |
| Status | End of Life (EOL) since 2019 |
Engineering Selection Highlights
- Non-contact laser distance measurement for industrial environments.
- Measuring range up to ~65 m on natural surfaces and 150 m on reflective targets.
- Typical accuracy ±3 mm with 0.1 mm resolution.
- Rugged IP65 metal housing suitable for outdoor and harsh industrial use.
- Standard serial (RS-232/RS-422) and programmable analog (0/4–20 mA) outputs.
- Digital outputs and digital input for triggering and status signaling.
- Legacy product; current Dimetix sensor families should be considered for new designs.
Detailed Product Overview
The Dimetix DLS-C30 (part number 500621) belongs to the DLS-C series of industrial laser distance sensors. It measures absolute distance without contact by means of a visible red Class 2 laser.
Key performance data from Dimetix documentation:
- Measuring range on natural surfaces: 0.05 m to approximately 65 m
- Measuring range on reflective foil: approximately 25 m to 150 m
- Typical accuracy: ±3 mm
- Typical repeatability: ±0.5 mm
- Resolution: 0.1 mm
- Maximum measuring rate: 6 Hz
The sensor is supplied in a robust metal housing with IP65 protection and operates from a 9–30 V DC supply. Standard interfaces include a serial port (RS-232 and RS-422), a programmable analog current output (0/4–20 mA), two programmable digital outputs, one error-signaling digital output, and a digital input for external trigger. Configuration and measurement commands are handled via the serial interface.
Operating temperature range is –10 °C to +50 °C. The laser is a visible red Class 2 device (<1 mW). Typical laser spot diameters are in the order of 8 mm at 10 m, 25 mm at 50 m and 40 mm at 100 m.
The DLS-C series, including the DLS-C30, was declared End of Life in July 2019. Dimetix continues to support the product family with documentation and, where available, residual stock, but new projects should use the current generation of Dimetix laser distance sensors that offer higher measuring rates, extended temperature options and updated interfaces.
Correct installation requires stable mechanical mounting, proper laser alignment to the target, and consideration of surface reflectivity, ambient light and temperature effects on measurement performance.

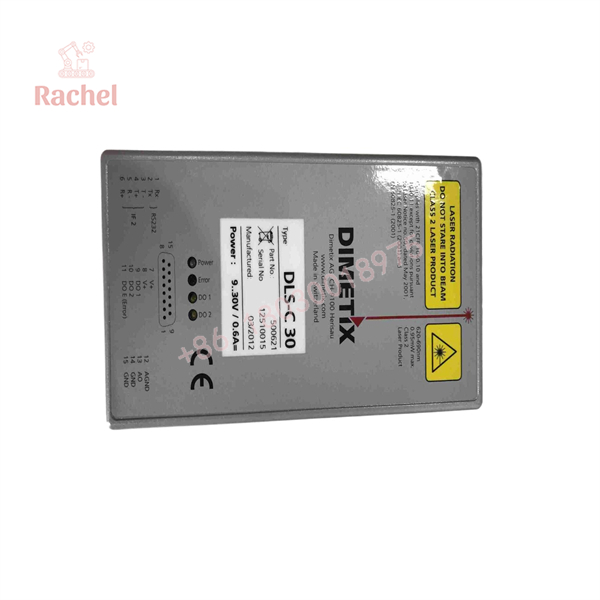

DLS-C30

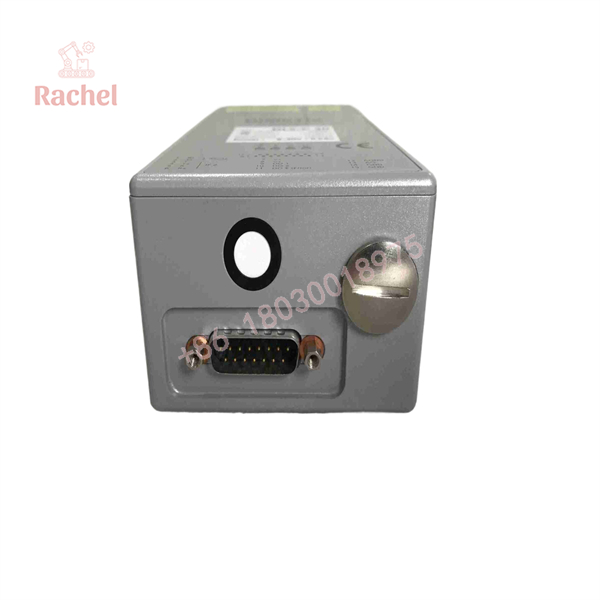

DLS-C30
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Power Supply | 9 … 30 V DC | Typical current ~0.6 A at 24 V |
| Interfaces | RS-232 / RS-422, analog 0/4–20 mA, digital I/O | Configurable via serial commands |
| Target | Natural surfaces or Dimetix reflective foil | Reflective foil extends range to 150 m |
| Mounting | Fixed mounting with laser alignment | Stable alignment required for best accuracy |
| Environment | IP65, –10 … +50 °C | Avoid direct sunlight on optics where possible |
| Successor Products | Current Dimetix laser distance sensor series | Recommended for new installations |
Dimensions, Mounting & Connection Notes
The DLS-C30 is housed in a solid metal enclosure measuring approximately 150 × 80 × 55 mm and weighing about 690 g. Mounting is performed via threaded holes; the laser beam must be aligned to the target. Electrical connection is made via connector or screw terminals for power, serial interface, analog output and digital signals. The sensor is rated IP65 for dust and water protection.
Applications & System Role
The DLS-C30 is used for non-contact distance, position, level and height measurement in industrial automation. Typical applications include crane and hoist positioning, level monitoring in silos or tanks, vehicle detection, diameter or thickness gauging, and general position feedback in material handling and process equipment.
FAQ
What is the Dimetix DLS-C30?
It is a non-contact industrial laser distance sensor (part number 500621) with measuring ranges up to 65 m on natural surfaces and 150 m on reflective foil.
What accuracy does the DLS-C30 provide?
Typical accuracy is ±3 mm with typical repeatability of ±0.5 mm and resolution of 0.1 mm.
What interfaces are available?
RS-232/RS-422 serial interface, programmable analog 0/4–20 mA output, digital outputs and a digital input.
What is the protection rating?
IP65 metal housing.
Is the DLS-C30 still in production?
No. The DLS-C series reached End of Life status in 2019. Current Dimetix sensor families should be selected for new applications.
