Product Introduction & Engineering Value
Servo drive replacement is rarely a simple swap. A machine may stop because of a failed amplifier, but restoring production depends on matching motor compatibility, feedback wiring, control parameters, and communication settings. The DYNAX MSS5A3A1XDD is built as a dedicated motion-control amplifier for AC servo applications where precise positioning is required.
For legacy automation assets, keeping an exact replacement in inventory can reduce extended downtime during unexpected failures. Maintenance teams often prioritize this type of servo driver because rebuilding existing motion hardware is usually less disruptive than redesigning the complete axis system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | DYNAX |
| Model Number | MSS5A3A1XDD |
| Device Type | AC Servo Driver / Servo Amplifier |
| Input Voltage | 200 VDC class (reference specification) |
| Output Power | Approx. 1.6 kW (reference specification) |
| Maximum Torque Capability | Approx. 24 Nm (application dependent) |
| Control Method | Closed-loop servo control |
| Compatible Motors | DYNAX AC servo motor family |
| Communication Interface | Model-dependent servo communication interface |
| Protection Rating | IP20 enclosure |
| Installation Style | Panel-mounted industrial drive |
| Cooling Method | Natural convection / forced cooling depending on cabinet design |
Published aftermarket references identify the MSS5A3A1XDD as a DYNAX servo driver with approximately 200 VDC operation, 1.6 kW output capability, IP20 protection, and industrial motion-control applications. Verify exact electrical ratings against the equipment nameplate and original documentation before replacement.

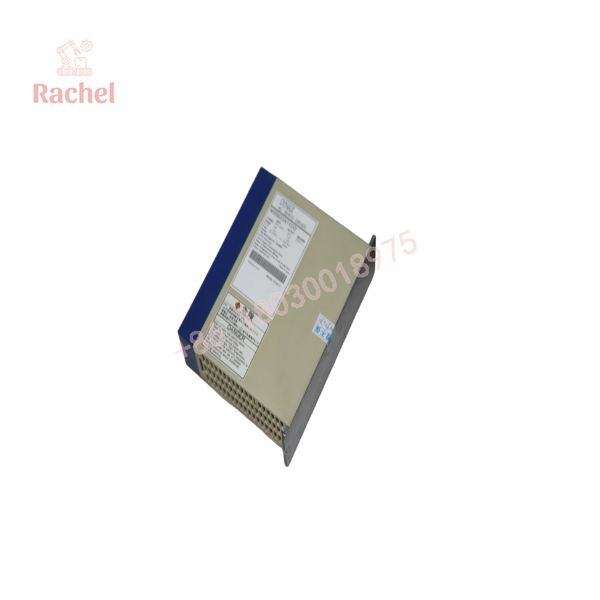

MSS5A3A1XDD

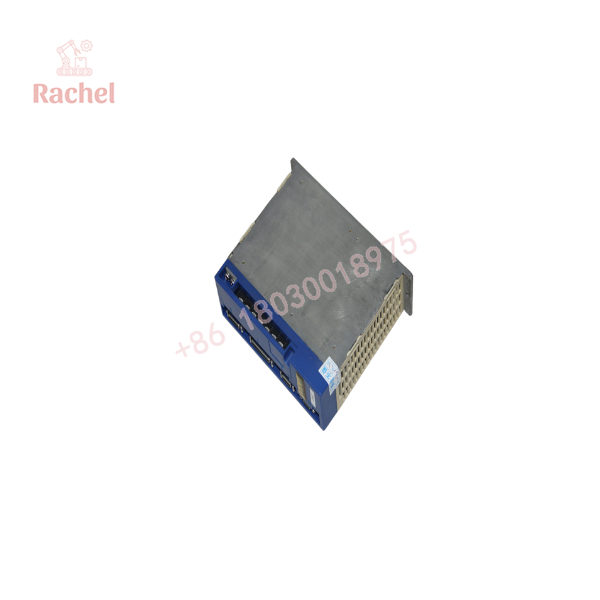

MSS5A3A1XDD
Field Application & The “Trench” Experience
A semiconductor equipment maintenance team faced an unexpected wafer handling axis failure during scheduled production. The servo amplifier showed intermittent positioning alarms, causing repeated machine stops. The original DYNAX MSS5A3A1XDD had been operating for years, and the plant had no spare available.
After sourcing a replacement unit, engineers verified motor feedback wiring, restored drive parameters from backup records, and performed low-speed axis testing before returning the machine to production.
Common application scenarios include:
- Precision wafer handling and inspection equipment motion axes
- Automated assembly machines requiring repeatable positioning
- CNC auxiliary feed systems and indexing mechanisms
- High-cycle pick-and-place equipment
Transparency SOP: QA & Testing
Before a New Surplus or Refurbished MSS5A3A1XDD unit is released, a practical inspection process should include:
1. Physical verification
- Confirm model marking and nameplate information.
- Inspect terminals, connectors, housing, and mounting points.
- Check for corrosion, contamination, or storage damage.
2. Electrical inspection
- Verify power input section condition.
- Check internal components for visible degradation.
- Measure insulation and circuit condition where applicable.
3. Functional testing
- Power-up verification.
- Alarm and display check.
- Servo communication and output testing when compatible test equipment is available.
A refurbished servo amplifier should include documented inspection history, repair details if applicable, and warranty terms provided by the supplier.
The Veteran’s Tech Trap Guide
⚠️ Trap 1: Replacing the drive without checking motor parameters
A servo amplifier is not only a power device. Motor characteristics, encoder feedback, and tuning parameters directly affect axis performance.
PRO TIP: Save the original parameter set before removing a working drive whenever possible.
⚠️ Trap 2: Assuming similar MSS models are interchangeable
MSS series drives may look physically similar while having different motor compatibility or control configurations.
Verify:
- Motor rated current
- Encoder type
- Feedback connector wiring
- Control interface
⚠️ Trap 3: Ignoring storage condition on surplus units
Older servo drives may sit unused for years. Capacitor aging, contamination, and connector oxidation can create failures after installation.
A visual inspection alone is not enough.
Dynamic FAQ
Q1. What is the DYNAX MSS5A3A1XDD used for?
The MSS5A3A1XDD is an AC servo driver used to control servo motors in industrial motion applications requiring accurate speed and position control.
Q2. Is MSS5A3A1XDD still available as a new OEM product?
Availability depends on remaining inventory channels. Many units on the secondary market are supplied as surplus, used, or refurbished industrial spare parts.
Q3. Can I replace MSS5A3A1XDD with another DYNAX MSS series drive?
Not automatically. Confirm motor compatibility, feedback configuration, wiring, and stored machine parameters before substitution.
Q4. What information should be provided when requesting a replacement?
Provide:
- Complete model number: MSS5A3A1XDD
- Equipment manufacturer and machine model
- Existing alarm codes
- Motor model connected to the drive
- Photos of labels and connectors
Q5. Are refurbished MSS5A3A1XDD units tested before shipment?
A qualified supplier should perform inspection and functional verification before shipment. Buyers should request testing details and warranty coverage documentation.
Q6. What warranty should industrial buyers expect?
Warranty periods vary by supplier and condition category. New surplus, repaired, and refurbished units should have clearly stated coverage terms before purchase.
