Eaton MPB2-TP Communication Module

Description

Product Introduction & Engineering Value

The Eaton MPB2-TP communication module addresses a common challenge in legacy automation systems: connecting operator panels with different PLC platforms without replacing existing control hardware. Installed in compatible MICRO PANEL devices, it provides serial communication capability for industrial equipment integration.

Maintenance engineers often encounter MPB2-TP modules in machine control systems where the HMI remains functional but communication faults interrupt operator access. A verified replacement module can restore PLC-to-panel communication while keeping the original application configuration intact.

Technical Specifications

The MPB2-TP and MPB1-TP share the same general communication card design, while MPB2-TP adds Siemens MPI support. Only one communication interface should be active at a time to avoid communication conflicts.

Field Application & The “Trench” Experience

A food processing facility had several operator stations built around Eaton XV400 MICRO PANEL units connected to older PLC equipment. After years of operation, one HMI stopped exchanging data with the controller. The display was working, but production parameters could no longer be monitored or adjusted.

The maintenance team traced the issue to the communication expansion card. A replacement Eaton MPB2-TP was installed, the original communication driver settings were restored, and the operator panel resumed communication without changing the PLC program.

Typical application scenarios include:

1. Packaging machines using XV400 panels connected to Siemens S7 controllers through MPI communication.
2. Legacy production equipment requiring RS485 PLC communication links.
3. Machine retrofit projects integrating existing PLC systems with Eaton operator interfaces.

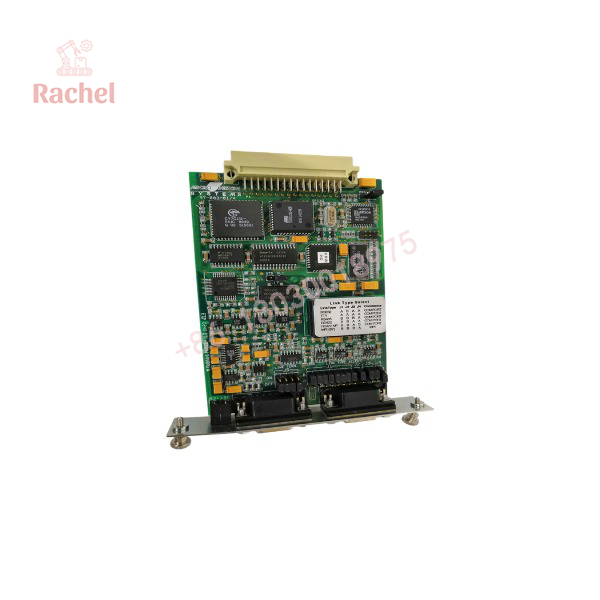

MPB2-TP

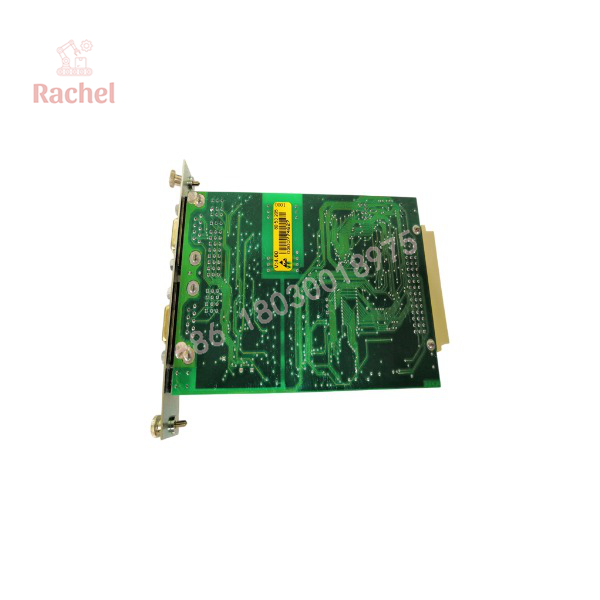

MPB2-TP

Transparency SOP: QA & Testing

A reliable MPB2-TP replacement should go through a controlled inspection process.

Inspection Checklist

• Confirm Eaton identification label and module markings.
• Inspect connector pins and PCB condition.
• Check for corrosion, contamination, or physical damage.

Functional Validation

• Verify module recognition in the compatible XV400 panel.
• Test serial communication interfaces.
• Confirm PLC driver operation.
• Verify stable data exchange during extended runtime testing.

Documentation Review

• Record firmware version where available.
• Confirm communication protocol settings.
• Document final test results before shipment.

The Veteran’s Tech Trap Guide

⚠️ Firmware matters more than many engineers expect.
The available PLC drivers depend on the firmware version installed on the communication module. An older card may not support the required controller protocol.

⚠️ Do not activate two interfaces simultaneously.
The MPB2-TP contains multiple communication interfaces, but they are not designed to operate linked together at the same time. Doing so can create unpredictable communication conflicts.

⚠️ Parameter backup is essential.
Replacing the hardware does not automatically restore communication settings. Record PLC type, baud rate, station address, and driver configuration before removal.

PRO TIP: Photograph the original communication settings screen before replacing the module. It is often faster than searching through old machine documentation.

Dynamic FAQ

Q1: What is the Eaton MPB2-TP used for?

The Eaton MPB2-TP is a communication expansion module used with compatible Eaton MICRO PANEL XV400 devices to connect with PLC systems.

Q2: What is the difference between MPB1-TP and MPB2-TP?

Both modules support similar PLC communication functions, but MPB2-TP additionally supports Siemens SIMATIC S7 MPI communication.

Q3: Which communication protocols can the MPB2-TP support?

Supported protocols depend on firmware and driver availability. The module family supports multiple PLC communication drivers, including Siemens MPI on MPB2-TP versions.

Q4: Can I replace an MPB2-TP without changing the HMI program?

Usually, yes, if the replacement module matches the original hardware configuration and the communication parameters are restored correctly.

Q5: Is the Eaton MPB2-TP still manufactured?

The MPB2-TP is considered a legacy industrial communication module. Availability is typically through surplus inventory, repaired units, or tested replacement stock.

Q6: What warranty is provided for a tested MPB2-TP module?

Warranty coverage depends on the supplier. Industrial automation spare-part suppliers commonly provide limited functional warranty coverage after inspection and testing.
