Description
Product Introduction
The Eaton XV-152-D6-10TVRC-10 (Article No. 150611) is a heavy-duty 10.4-inch industrial HMI panel PC designed for demanding automation environments. Featuring an anodized metal housing and a resistive touch screen, it combines human-machine visualization with integrated soft-PLC (CoDeSys) execution capabilities.
Equipped with a 400 MHz 32-bit RISC processor running Windows CE 5.0, the XV-152 series supports comprehensive fieldbus connectivity. Onboard interfaces include Ethernet, RS232, RS485, CANopen, and SmartWire-DT master networking. Its fanless passive cooling and IP65 front protection ensure long service life in high-vibration or high-dust industrial setups.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | Eaton (Eaton Moeller / Micro Innovation) |
| Model / Part Number | XV-152-D6-10TVRC-10 |
| Article / Order Number | 150611 |
| Product Series | XV150 / XV-152 Series |
| Display Size & Type | 10.4-inch Color TFT Display |
| Resolution & Colors | VGA 640 x 480 pixels (64k colors) |
| Touch Technology | 4-Wire Resistive Touch Screen (Glass with film) |
| Processor & Memory | 400 MHz 32-bit RISC CPU, 64 MB DRAM, 64 MB NAND Flash, 125 kB NVRAM |
| Onboard Communication | 1x Ethernet (10/100 Mbps), 1x RS232, 1x RS485, 1x CANopen, 1x SmartWire-DT |
| USB & Expansion | 1x USB Host 2.0, 1x USB Device, 1x SD Memory Card Slot |
| Supply Voltage | 24 V DC (19.2 to 30.0 V DC operating range) |
| Enclosure Material | Heavy-Duty Anodized Metal Housing |
| Front Protection Class | IP65 / NEMA 4X (When flush-mounted) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:00 AM on a critical production shift at a food processing plant. A washdown crew accidentally breaches an aging panel seal, causing liquid to short out the display board on a batch mixing machine. The machine stops completely, holding thousands of gallons of product that will spoil if agitation and temperature controls aren’t restored within the hour. Swapping in a pre-inspected XV-152-D6-10TVRC-10 (150611) replacement, loading the project backup via SD card, and securing the heavy-duty metal bezel into the NEMA 4X cutout restores line operation with time to spare.
- Heavy OEM Industrial Machinery – Serves as both the primary operator display and local motion controller on metal stamping presses and CNC auxiliary systems.
- SmartWire-DT Cabinet Architectures – Functions as a centralized SmartWire-DT master unit, controlling motor starters, pilot devices, and pushbuttons directly without complex point-to-point wiring.
- Severe Environment Processing – Installed on processing skids where the rugged metal enclosure and IP65 front protection resist vibration and ambient dust.
Transparency SOP: Quality Assurance & Testing
Every unit undergoes testing prior to shipment:
- Housing & Metal Bezel Audit: Structural check of the anodized metal front plate, glass touch substrate, rear connectors, and perimeter sealing gasket.
- Power Supply & Voltage Sweep: Powered on a precision DC bench supply and swept across 19.2V to 30.0V DC to verify internal power regulation, inrush current handling, and boot stability.
- Resistive Touch Screen Calibration: Multi-point calibration matrix test verifying touch responsiveness and accuracy across all screen quadrants.
- Fieldbus & Port Stress Test: Communication verification across Ethernet, RS232, RS485, CANopen, and SmartWire-DT ports to ensure reliable data transmission.
- ESD Cleaning & Secure Packaging: Static discharge treatment, vacuum sealing in anti-static ESD bags with desiccant, and custom foam packaging.
XV-152-D6-10TVRC-10

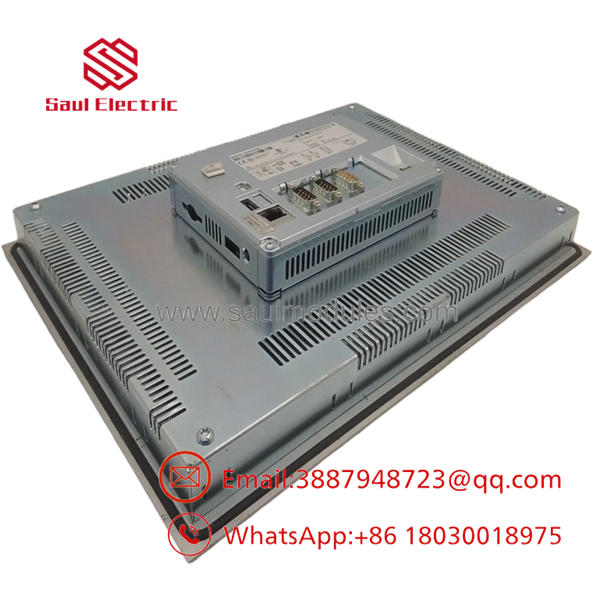

XV-152-D6-10TVRC-10
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify SmartWire-DT Power Wiring Configuration!
The XV-152-D6-10TVRC-10 contains onboard SmartWire-DT master circuitry. Pay attention to the separate power terminals (U_{POW} and U_{AUX}). Wiring U_{AUX} incorrectly will fail to power contactor coils on the SmartWire line, throwing field bus supply faults.
- ❗ Confirm Metal Housing Cutout Depth & Weight Clearance
Unlike plastic-housed XV100 units, the XV-152 model features a solid metal enclosure weighing nearly 3 kg (6.5 lbs). Ensure cabinet doors have sufficient structural rigidity and mounting depth (D \ge 54 mm) to support the panel without sagging or bowing the sheet metal.
- ⚠️ Observe 24V DC Earth Grounding Guidelines
Connect a dedicated, low-impedance ground strap from the metal frame grounding stud to the enclosure earth rail. Poor grounding can introduce noise into the 4-wire resistive touch overlay, causing touch drift or unresponsiveness.
- ❗ Backup Retain Memory (NVRAM) Data
This model includes 125 kB of non-volatile NVRAM for retained PLC variables. When replacing an active unit, ensure you upload recipes, machine parameters, and retain variables using XSoft-CoDeSys or Galileo software before decommissioning.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the exact difference between part number XV-152-D6-10TVRC-10 and article number 150611?
A: They refer to the exact same product. XV-152-D6-10TVRC-10 is the functional model code detailing screen size (10.4″), display type (TFT VGA), and communication interfaces, while 150611 is Eaton’s unique 6-digit ordering code.
Q: Which software packages program this unit?
A: HMI graphics are configured using Eaton’s Galileo software. If using the integrated soft-PLC function, programming is handled via XSoft-CoDeSys-2 or XSoft-CoDeSys-3.
Q: Does this unit include a SmartWire-DT interface?
A: Yes, the RC suffix in the model number indicates built-in support for SmartWire-DT master communication alongside standard CANopen interfaces.
Q: Can this 10.4″ panel replace smaller XV100 screens?
A: Functionally yes, provided the project application is recompiled in Galileo for the VGA (640×480) screen resolution and the cabinet panel cutout is enlarged to accommodate the 345 mm x 260 mm frame dimensions.
