Eaton XV-102-D8-57TVRC-10 5.7″ HMI PLC Touch Panel

Description

Product Introduction

The Eaton XV-102-D8-57TVRC-10 is a member of the XV100 HMI/PLC family, combining a 5.7-inch color touchscreen with an integrated CoDeSys PLC runtime in a single compact device. It is commonly installed on OEM machinery, packaging equipment, material handling systems, and process automation skids where both visualization and machine logic are required.

Unlike a standard operator panel, this model includes onboard PLC capability and native PROFIBUS-DP communication, allowing one device to manage operator interaction and machine control. That reduces cabinet space and simplifies wiring, but it also means firmware compatibility should be verified before replacing an existing unit.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a familiar situation.

A packaging line is running three shifts. The touchscreen suddenly freezes after years of continuous service. The PLC logic is built into the HMI, so replacing only the display isn’t an option. Production stops because one failed device has taken down both visualization and machine control.

That is exactly where the XV-102-D8-57TVRC-10 usually appears.

Typical Applications

• Packaging Industry — Cartoners and case packers — Integrated HMI and PLC reduce cabinet space.
• Material Handling — Conveyor control systems — Native PROFIBUS communication simplifies fieldbus integration.
• Food & Beverage — Filling and labeling machines — Fanless design handles enclosed control cabinets.
• Machine Builders — OEM equipment — CoDeSys runtime supports customized machine logic.
• Water Treatment — Local operator stations — Combines process visualization with equipment control.

Field Experience

One automotive supplier had a twelve-year-old assembly station fail during a weekend shift. The touchscreen remained dark, and the machine refused to execute its startup sequence because the PLC runtime was inside the HMI. After installing an identical XV-102-D8-57TVRC-10 with the correct application backup and firmware revision, production resumed without modifying the existing PROFIBUS network. Downtime was measured in hours instead of weeks.

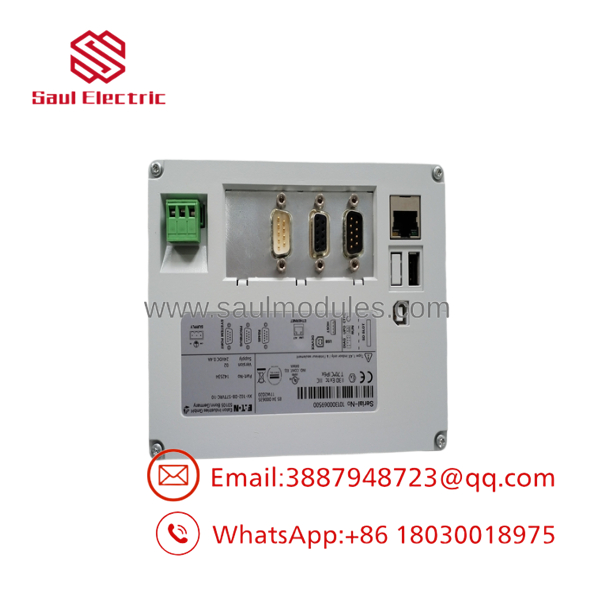

XV-102-D8-57TVRC-10

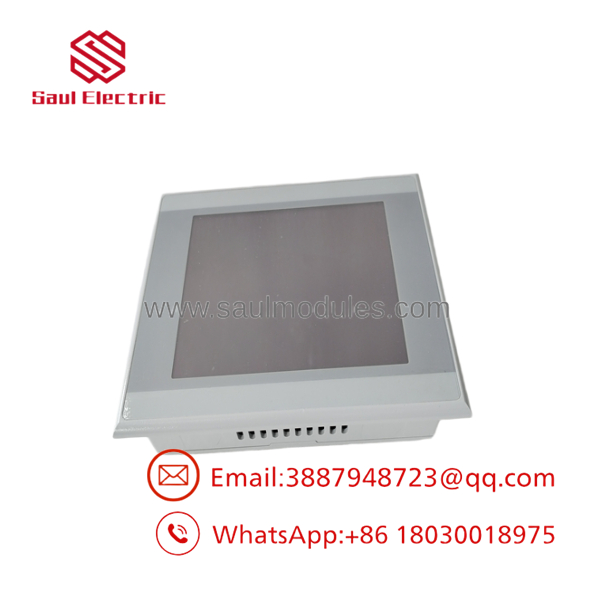

XV-102-D8-57TVRC-10

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Eaton hardware whenever practical.

• Inbound Inspection
  • Verify Eaton labels and catalog number.
  • Inspect LCD, touchscreen, connectors, and enclosure.
  • Check for signs of moisture or cabinet contamination.
• Live Rig Testing
  • Power-on verification using a regulated 24 VDC supply.
  • LCD brightness and touchscreen calibration.
  • Ethernet, USB, and serial interface communication checks.
• Electrical Parameter Checks
  • Power consumption verification.
  • Internal voltage rail inspection.
  • Connector continuity testing.
• Firmware Verification
  • Record firmware revision.
  • Verify CoDeSys runtime version.
  • Confirm boot sequence and operating system integrity.
• Final QC & Packaging
  • Final functional inspection.
  • Anti-static protection.
  • Shock-resistant industrial packaging.
  • Serial number documentation before shipment.

The Veteran’s Tech Trap Guide

⚠️ Back up the project before removing the HMI.

Many OEMs store the application inside the panel. Installing a blank replacement may leave you with a working display and a machine that won’t run.

❗ Firmware matters.

A CoDeSys project created for one runtime revision may not load correctly into another. Verify firmware compatibility before installation.

⚠️ Don’t assume every XV100 panel is interchangeable.

The D6 and D8 versions differ in communication interfaces. Check whether your machine uses CANopen or PROFIBUS before ordering.

❗ Take photos of communication settings. Trust me.

Record the PROFIBUS node address, Ethernet configuration, and serial parameters before disconnecting the old unit. It saves hours during commissioning.

Frequently Asked Questions (FAQ)

Q1. Does the XV-102-D8-57TVRC-10 include a PLC?

A: Yes. This model includes an integrated CoDeSys PLC runtime in addition to its HMI functionality.

Q2. Can it be hot-swapped?

A: No. Disconnect system power before replacing the unit. Removing it while energized can interrupt fieldbus communication and machine control.

Q3. Does it support PROFIBUS-DP?

A: Yes. This specific D8 variant includes a built-in PROFIBUS-DP/MPI interface along with Ethernet, RS-232, and RS-485.

Q4. Can I restore my existing machine program?

A: Usually yes, provided you have the original project backup and the firmware versions are compatible. Verify the runtime version before downloading the application.

Q5. Why is surplus inventory less expensive than ordering from the OEM?

A: Most surplus units originate from canceled projects, factory inventory reductions, or spare-part stock. The lower price reflects the supply chain rather than inferior hardware.

Q6. Is this model still manufactured?

A: It is generally considered a legacy product, so availability depends on surplus inventory and refurbished stock. Planning a spare strategy is advisable for facilities still operating XV100-based machines.

Q7. What should be verified before installation?

A: Confirm:

• Exact catalog number (XV-102-D8-57TVRC-10)
• Firmware and CoDeSys runtime version
• Machine application backup
• PROFIBUS node address
• Ethernet configuration
• Power supply (24 VDC)
• OEM wiring and connector pinout

One thing to watch out for is assuming that every XV100 panel is identical. The communication interfaces, runtime license, and fieldbus configuration vary across the XV100 family. Always verify the exact catalog number and compare it with the OEM documentation before energizing the replacement unit.
