Eaton XV-152-E6-84TVRC-10 8.4-Inch HMI Touch Panel Display

Description

Product Introduction

The Eaton XV-152-E6-84TVRC-10 (Article No. 166702) is an 8.4-inch industrial HMI panel PC designed to bridge mid-size machine visualization with powerful PLC control. Housed in an anodized metal chassis with a glass-backed resistive touch screen, it delivers real-time graphic displays, parameter editing, and fieldbus orchestration directly at the machine console.

Powered by a 400 MHz 32-bit RISC processor executing Windows CE 5.0, this model supports both Galileo visualization software and XSoft-CoDeSys soft-PLC runtimes. Featuring onboard Ethernet, RS485, CANopen, and a built-in SmartWire-DT master interface, the XV-152-E6-84TVRC-10 streamlines panel layout by replacing centralized PLC racks and complex control wiring with a single, compact HMI controller.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 10:45 PM on a weekend shift at a plastics extrusion facility. An operator panel on the main extruder line experiences a total screen freeze due to power supply noise degrading the internal DC-DC converter on an old 8.4″ display. With temperature zones drifting out of tolerance and raw material burning in the barrel, every minute of delay means hours of cleanup and lost resin. Having a pre-inspected XV-152-E6-84TVRC-10 (166702) ready on the shelf allows maintenance staff to rapidly replace the failed terminal, reload the project via SD card, and re-establish SmartWire-DT fieldbus links to get the extruder back online before thermal breakdown occurs.

• SmartWire-DT Motor Control Centers – Acts as the primary operator terminal and SmartWire-DT bus master, managing contactors, variable frequency drives, and soft starters with minimal control cabinet wiring.
• Plastics & Extrusion Machinery – Manages multi-zone temperature control loops, hydraulic pressure curves, and feeder speed settings on medium-sized extrusion or blow-molding machines.
• Material Handling & Conveyor Skids – Manages sorter routing, photo-eye monitoring, and motor drive interlocks via CANopen or Modbus/RTU fieldbus networks.

XV-152-E6-84TVRC-10

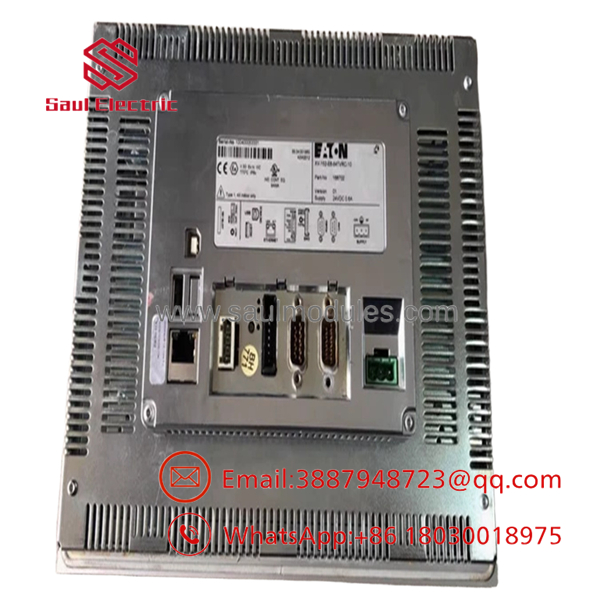

XV-152-E6-84TVRC-10

Transparency SOP: Quality Assurance & Testing

Every unit passes a multi-point bench audit prior to shipment:

1. Housing & Structural Integrity Inspection: Visual audit of the anodized metal front bezel, glass touch panel substrate, rear terminal connectors, and continuous perimeter sealing gasket.
2. 24V DC Power Sweep & Burn-In: Unit connected to a precision DC power supply and swept between 19.2V and 30.0V DC to verify internal voltage regulator stability, boot cycles, and backlight brightness.
3. Resistive Touch Calibration Test: Full-surface touch grid test verifying 100% responsiveness and accuracy across all quadrants to eliminate drift or dead zones.
4. Fieldbus & Port Stress Audit: Active communication verification across Ethernet, RS485, CANopen, and SmartWire-DT master ports under simulated network load.
5. Anti-Static Cleaning & ESD Packaging: Cleaned with non-abrasive optical solvent, sealed in static-shielding ESD bags with fresh desiccant, and packaged in high-density custom foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Confirm Model Code Suffixes (“E6” vs “D6”)!

  The E6 in XV-152-E6-84TVRC-10 indicates the 8.4-inch VGA display option. Do not confuse this with D6 (10.4-inch) or C6 (5.7-inch) models. While software projects compiled in Galileo can be resized, physical cabinet cutout dimensions differ significantly across screen sizes.

• ❗ Observe SmartWire-DT Power Isolation Rules

  When using the integrated SmartWire-DT master interface, ensure the auxiliary U_{AUX} supply (24V DC for contactor coils) and gateway power U_{POW} are wired from clean, regulated power supplies. Voltage dips on U_{AUX} during heavy contactor actuation can trigger SmartWire bus communication dropouts.

• ⚠️ Torque Cabinet Clamps Hand-Tight Only

  When securing the metal frame into a panel cutout using the supplied tension clamps, tighten screws evenly in a diagonal pattern by hand. Over-tightening with power tools will distort the perimeter frame, preventing the IP65 seal from making uniform contact with the cabinet sheet metal.

• ❗ Verify NVRAM Retain Variable Allocation

  If utilizing the integrated XSoft-CoDeSys soft-PLC, critical machine parameters (counters, recipe setpoints, calibration constants) are stored in the 125 kB non-volatile NVRAM. Always export or back up the retain variable data before replacing an operational unit.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between model number XV-152-E6-84TVRC-10 and article number 166702?

A: They identify the exact same physical product. XV-152-E6-84TVRC-10 is the descriptive type code detailing the series, 8.4″ screen size, VGA resolution, and interface options. 166702 is Eaton’s unique 6-digit ordering/article number.

Q: Which software applications are used to program this panel?

A: Graphic visualization screens are configured using Eaton Galileo. When using the built-in soft-PLC runtime, logic programming is handled via XSoft-CoDeSys-2 or XSoft-CoDeSys-3.

Q: Can this unit function as a SmartWire-DT master?

A: Yes. The RC suffix denotes built-in hardware support for both CANopen and a SmartWire-DT master interface, allowing direct connection to SmartWire-DT field modules without an external gateway.

Q: Is the front glass splash-proof for washdown environments?

A: When correctly installed into a clean, flat cabinet door cutout with all mounting clamps secured, the front face achieves an IP65 / NEMA 4X rating, protecting internal electronics against dust ingress and low-pressure water splashes.
