Description
Product Introduction & Engineering Value
Few components test an engineer’s patience like a failing touch screen in a high-grit environment. Standard resistive screens degrade rapidly under repetitive physical pressure, grease, or heavy chemical washdowns, resulting in unresponsive zones and missed operator inputs. The Eaton XV-440-10TVB-1-10 addresses this vulnerability directly by deploying an infra-red touch matrix behind laminated safety glass, ensuring that operator inputs register reliably even when gloves are thick and the environment is unforgiving.
This HMI bridges the gap between machine visualization and logic execution by providing embedded PLC options alongside specialized communication protocols like CANopen and Ethernet. Its legacy architecture remains critical for maintaining long-term operations without forcing a costly, multi-week panel redesign. By providing exact physical drops and stable hardware runtimes, this module protects infrastructure from unnecessary downtime.
Technical Specifications
Because this hardware functions as a critical processing nodes and communication hub, its physical and protocol parameters are highly descriptive:
- Display Matrix: 10.4-inch active color TFT matrix featuring 640 x 480 VGA resolution.
- Touch Input Technology: Infra-red scanning matrix utilizing a hardened, scratch-resistant laminated glass surface interface.
- Embedded Processor Architecture: 32-bit RISC CPU running at 400 MHz for deterministic processing.
- Onboard Interfaces: 1 x Ethernet (10/100 Mbit), 1 x RS232, 1 x CANopen master port, and 2 x USB host ports.
- Memory Configuration: 64 MB internal RAM supplemented by specialized slot expansions for CompactFlash storage.
- Enclosure Rating: IP65 front protection barrier against high-velocity water jets and fine particulate ingress.
- Operating Voltage: 24V DC nominal input range with a standard power consumption profile of approximately 22 Watts.

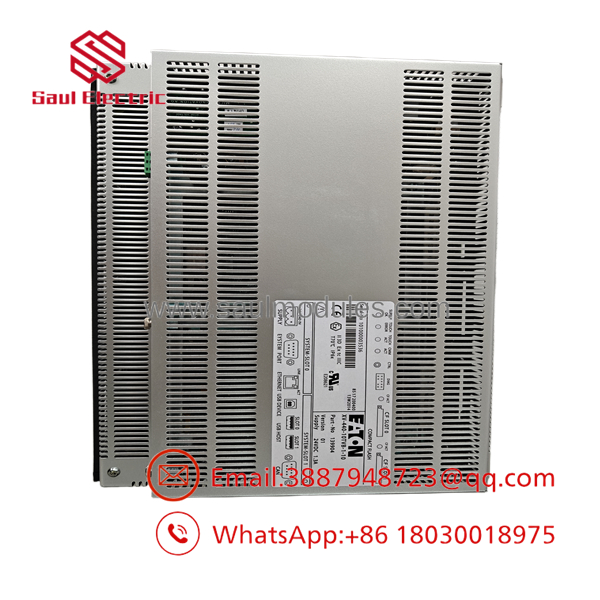

- XV-440-10TVB-1-10

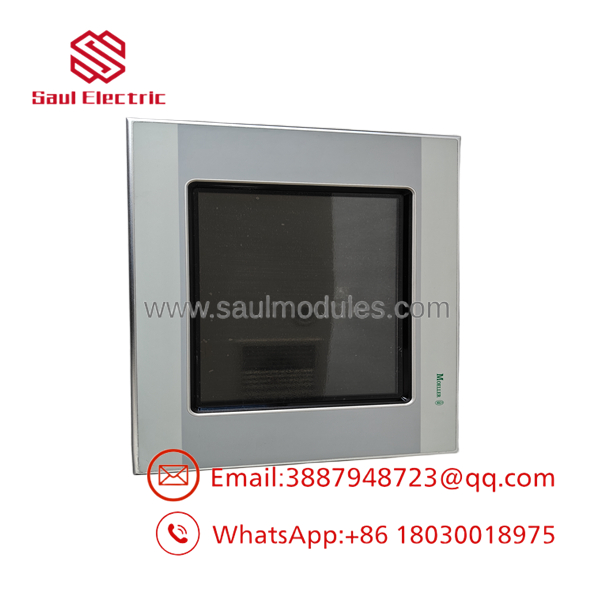

- XV-440-10TVB-1-10
Field Application & The “Trench” Experience
During a winter mid-shift at a municipal wastewater processing facility, the primary sludge dewatering centrifuge ground to a halt. The legacy HMI screen had suffered a fatal impact crack, locking out operator control and threatening a complete plant backup. The system relied heavily on a localized CANopen token ring to manage exact variable speed drives. Dropping in a clean, new surplus XV-440-10TVB-1-10 panel restored the complete physical bus and visual interface in under forty-five minutes, averting a critical environmental violation.
Niche Application Environments:
- Reciprocal Pumping Station Telemetry: Manages remote pump control clusters via integrated CAN networks.
- Aggregates Crushing Plant Control Cabinets: Deploys in high-vibration control desks where standard touch overlays peel or delaminate.
- Chemical Batching Emulsion Mixing: Provides thick-glove operation for chemical batch recipes using infra-red light interruption instead of physical surface flexing.
Transparency SOP: QA & Testing
Our inventory engineering team subjects every incoming inventory unit to a rigorous testing regimen to guarantee immediate field readiness:
- Physical Surface Evaluation: Inspecting the laminated safety glass and front bezel seals under high-intensity lighting to check for hairline stress fractures or degradation of the outer gasket.
- Infra-Red Grid Characterization: Powering up the display and executing a point-by-point grid diagnostic across all coordinate axes to verify that no IR transmitters or receivers are blind or non-responsive.
- Communication Bus Verification: Stress-testing the Ethernet, RS232, and CANopen physical ports by transmitting live data packets to an active controller node to confirm packet integrity.
- Thermal Stress Cycles: Executing prolonged 12-hour burn-in procedures inside localized testing cabinets to ensure voltage regulators remain stable under normal industrial ambient heat profiles.
The Veteran’s Tech Trap Guide
⚠️ CRITICAL RETROFIT WARNINGS
- The IR Bezel Trap: Unlike standard resistive panels, the infra-red array relies on clean optical paths across the front bezel overlay. If fine grease or dark carbon dust accumulates inside the recessed frame edge, the light beams break continuously, resulting in phantom touch points or complete screen lock. Always clean the outer frame track with a non-abrasive solution before condemning the hardware.
- CompactFlash Formatting Constraints: The underlying OS is picky about storage media. Using a standard, modern high-capacity card often results in a boot failure or file system error. Stick strictly to industrial-grade CompactFlash cards formatted specifically to FAT16 file structures.
- Gasket Pinch During Sealing: When tightening the rear mounting clamps down against the cutout panel, torque them evenly in a star pattern. Over-tightening one side twists the display frame, which can misalign the internal IR array and trigger constant input faults.
Dynamic FAQ
- Q: Can this unit handle visual screen navigation if the operator is wearing heavy, grease-covered leather gloves?
- A: Yes. Because the infra-red array senses physical interruption of light beams rather than electrical capacitance or mechanical pressure, any object breaking the plane will register an input, including gloved hands or styluses.
- Q: How do I transfer my project files if the original CompactFlash card is corrupted?
- A: Project recovery requires target compilation through Galileo or CoDeSys programming software. You can download the compiled project directly via the Ethernet interface or by writing an identical directory structure onto a clean, industrial-grade CompactFlash card.
- Q: What is the exact warranty coverage on your New Surplus inventory for this model?
- A: Every single New Surplus and Refurbished unit ships backed by our comprehensive 12-month operational warranty. If a component fails under standard operating conditions within one year, we provide an immediate replacement or full credit return.
- Q: The XV-440 features integrated PLC capabilities; does this unit include the license out of the box?
- A: The “-10” trailing suffix signifies specific target hardware configurations. Please verify your system backup requires an embedded runtime license key, as some implementations use the panel strictly for data display while others activate the onboard logic controller.
