Eaton XV-303-70-B00-A00-1C HMI XV300 Operator Panel

Description

Product Introduction & Engineering Value

The Eaton XV-303-70-B00-A00-1C is a 7-inch XV300-series HMI designed for local operator visualization and control. The XV300 platform is intended for applications where operators need graphical process information, alarm handling, parameter entry, and direct interaction with machine-control functions.

The complete model designation matters during replacement. Do not select a substitute solely because it has the same screen size. Communication interfaces, power requirements, project compatibility, mounting dimensions, and firmware/software support all need to match the existing installation.

Technical Specifications

Engineering note

The B00-A00-1C configuration suffix should remain part of the procurement specification. Eaton XV300 models can differ in communication, memory, power, and interface capabilities. Exact electrical and environmental specifications should be confirmed against the documentation for this particular configuration.

Field Application & the “Trench” Experience

A common HMI replacement mistake is to focus on the physical cutout and screen size while overlooking the communication layer.

Consider a packaging machine running an older XV300 panel. The replacement fits the cabinet perfectly, but the PLC connection fails because the communication configuration or project is not compatible. The panel itself is fine. The commissioning plan was incomplete.

Before removing the original XV-303-70-B00-A00-1C, back up the application project and document the controller connection, network settings, screen configuration, and user-access settings.

Specific application scenarios

• Packaging machine operator stations with recipe management, alarms, counters, and production status.
• Material-handling control panels for conveyor, motor, and actuator monitoring.
• Machine-tool operator interfaces requiring graphical status displays, parameter entry, and alarm diagnostics.

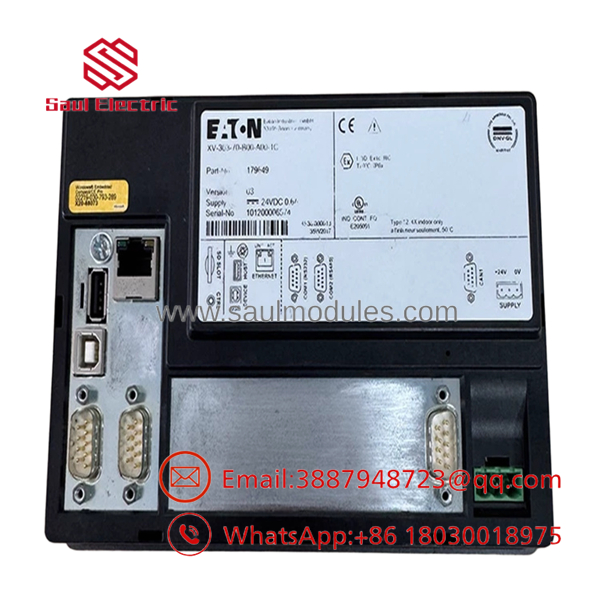

XV-303-70-B00-A00-1C

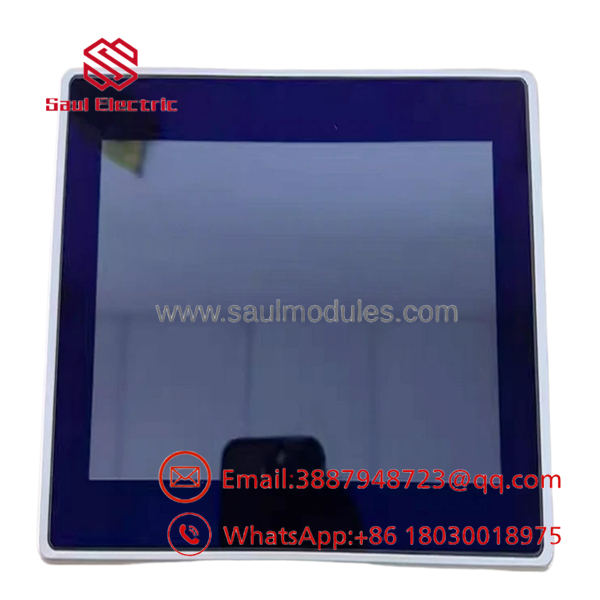

XV-303-70-B00-A00-1C

Transparency SOP: QA & Testing

For New Surplus XV-303-70-B00-A00-1C, a useful QA sequence is:

Identity → Display → Touch → Connections → Power → Communications → Project

• Verify the exact model marking on the physical unit.
• Inspect the 7-inch display for cracks, scratches, dead pixels, or discoloration.
• Test touchscreen response across the active area.
• Inspect rear connectors and mounting hardware.
• Power the unit under controlled conditions.
• Verify communication with the applicable controller when test equipment is available.
• Confirm whether application software is included.

A supplier claiming “tested” should be able to explain what was actually tested. A boot test alone is not a complete HMI functional test.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching the 7-inch display and stopping there

Physical dimensions are only one part of compatibility. Confirm the complete XV-303 configuration and communication requirements.

⚠️ Trap #2 — Forgetting the application project

The replacement may arrive with factory software or no customer-specific project. Back up the existing application before starting the replacement.

PRO TIP: Photograph the existing HMI’s rear label and all connected cables. Record the PLC address and communication settings before disconnecting the old unit.

⚠️ Trap #3 — Ignoring firmware compatibility

A project created for one hardware or firmware revision may require conversion or validation before it can run correctly on replacement hardware. Test this before the production outage whenever possible.

Dynamic FAQ

What is Eaton XV-303-70-B00-A00-1C?

It is a 7-inch Eaton XV300-series touchscreen HMI/operator panel designed for industrial machine and process-control applications.

Is the XV-303 a PLC?

The XV-303 is primarily an operator interface/HMI platform. Do not assume PLC functionality based only on the family designation; verify the exact model configuration and application requirements.

What should I verify before ordering a replacement?

Confirm the complete XV-303-70- model, display characteristics, power supply, communication interfaces, mounting requirements, software compatibility, and controller connection.

Does a New Surplus unit include the machine’s HMI project?

Not necessarily. New Surplus generally describes the hardware condition, not the availability of customer-specific application software. Confirm this separately.

Can another 7-inch unit be substituted?

Only after verifying the complete hardware and software requirements. Similar screen size and family designation do not establish full interchangeability.

How can I verify New Surplus authenticity?

Request actual-unit photographs showing the model label and physical condition. Confirm whether the unit is unused, previously installed, refurbished, or repaired, and ask for available test documentation.

What warranty should I request?

For a production-critical HMI, confirm the warranty period, functional-test scope, hardware condition, software/project status, and return terms in writing before purchase.
