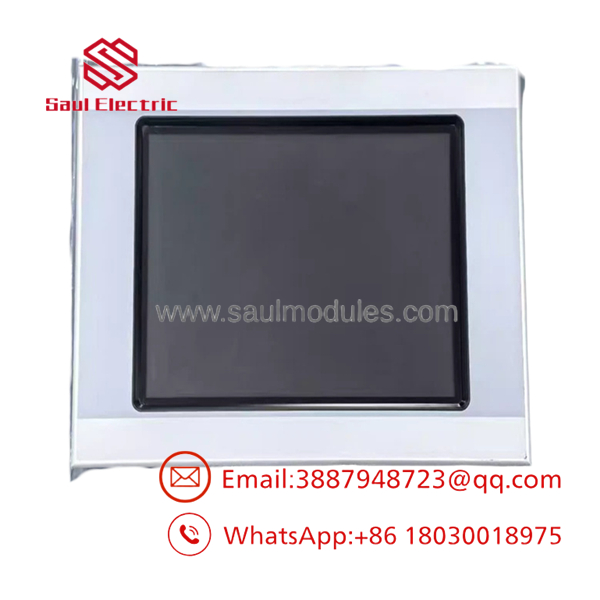

Eaton XV-363-12-C02-A00-1B HMI XV300 Operator Panel

Description

Product Introduction & Engineering Value

The Eaton XV-363-12-C02-A00-1B is a larger-format XV300-series operator panel intended for applications where operators need substantial screen area for process graphics, alarms, equipment status, and control functions. The XV300 platform is suited to machine and plant-floor visualization rather than simple text-only operator terminals.

Replacement work needs more than a dimensional match. The exact C02-A00-1B configuration, communication interfaces, power requirements, application software, mounting arrangement, and firmware compatibility should be checked against the existing installation before the unit is approved as a substitute.

Technical Specifications

Engineering note

The complete model designation should be used for procurement. Exact display resolution, power supply, communication interfaces, memory, environmental ratings, and software requirements should be confirmed from the Eaton documentation applicable to XV-363-12-C02-A00-1B rather than inferred from the XV300 family.

Field Application & the “Trench” Experience

Large-screen HMI replacements often expose a different problem: the machine’s existing project was designed around a specific display resolution and screen layout.

If an XV-363-12-C02-A00-1B is being replaced during an outage, do not simply load the old project and assume the job is finished. Check screen scaling, alarm pages, trend displays, recipe fields, navigation controls, and operator-access functions. A project can technically load while still presenting poorly or hiding important controls.

Specific application scenarios

• Large machine operator stations where several equipment states must remain visible at once.
• Process-control skids requiring trends, alarms, setpoints, and multiple process graphics.
• Production-line supervisory panels combining machine status, production metrics, diagnostics, and operator commands.

XV-363-12-C02-A00-1B

Transparency SOP: QA & Testing

For New Surplus XV-363-12-C02-A00-1B, a practical acceptance process is:

1. Identification
Verify the complete model number from the actual unit.

2. Mechanical inspection
Check the bezel, enclosure, mounting hardware, and rear connections for damage.

3. Display inspection
Look for cracks, scratches, discoloration, dead pixels, and uneven illumination.

4. Touchscreen test
Test response across the full active area, including corners and edges.

5. Power-up test
Verify normal startup under controlled conditions.

6. Communication test
Where suitable equipment is available, establish communication with the intended controller.

7. Project test
Load or verify the applicable application and check screen navigation, alarms, data display, and operator functions.

For a production-critical HMI, a power-on test should be considered only a basic screening step.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming the 12-inch display guarantees project compatibility

It does not. Screen resolution and application layout need to be checked against the existing project.

⚠️ Trap #2 — Treating C02 as an insignificant suffix

Keep the complete XV-363-12- designation in the purchase order. Configuration suffixes can identify meaningful hardware differences.

PRO TIP: Export and preserve the HMI project before removing the original unit. Also keep a copy of the existing communication settings and user configuration.

⚠️ Trap #3 — Ignoring touchscreen calibration

A replacement can boot normally but still have poor touch accuracy. Test the complete touch surface, especially the edges where navigation buttons are commonly located.

Dynamic FAQ

What is Eaton XV-363-12-?

It is an Eaton XV300-series large-format touchscreen HMI/operator panel intended for industrial machine and process-control applications.

Is the XV-363 part of the XV300 family?

Yes. The XV-363 is part of Eaton’s operator-interface family.

What should I verify before purchasing a replacement?

Verify the complete model number, display characteristics, power requirements, communications, mounting dimensions, firmware/software compatibility, and the application project used by the existing machine.

Does New Surplus hardware include the original HMI project?

Not necessarily. New Surplus normally describes the physical hardware condition. Confirm separately whether application software or a project backup is included.

Can another panel replace this model?

Only after verifying hardware and software compatibility. Display size alone is not enough to establish interchangeability.

How should the actual New Surplus unit be inspected?

Request photographs of the physical unit and identification label. Check the display, touchscreen, connectors, enclosure, and mounting hardware, and ask what functional tests were performed.

What warranty should I request?

Confirm the warranty period, hardware condition, functional-test scope, project/software status, and return procedure in writing. For a large operator panel used in a production line, these terms should be documented before purchase.
