Description
Product Introduction
The Eaton / Micro Innovation XV-440-10TVB-1-20 is a 10.4-inch TFT color touchscreen panel from the versatile XV400 series. Functioning as a high-performance operator interface or combined HMI/PLC unit, it allows operators to manage complex machinery profiles, track dynamic alarm logs, and interact with live process trend curves across industrial automation networks.
Powered by GALILEO visualization software and CoDeSys embedded PLC logic, the XV-440-10TVB-1-20 features built-in Ethernet, serial ports, and expansion slots for fieldbus integration (such as CANopen or Profibus DP). Its NEMA 4X / IP65 front face protects internal electronics from water spray and airborne dust in demanding manufacturing environments.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Eaton Electric / Moeller / Micro Innovation |
| Product Line | XV400 HMI / Panel PLC Series |
| Model Code | XV-440-10TVB-1-20 (Article No: 139899) |
| Display Screen | 10.4-inch VGA TFT LCD (640 × 480 pixels) |
| Color Depth | 65,536 Colors |
| Touch Technology | Resistive Touchscreen Glass |
| Processor & Memory | 32-bit RISC CPU |
| Interfaces Onboard | 1x Ethernet 10/100, 1x RS-232, 1x USB Host, CompactFlash Slot |
| Fieldbus Option | CANopen / Profibus DP onboard or via slot module |
| Power Supply | 24 V DC (±15%) |
| Protection Rating | IP65 / NEMA 4X Front Panel |
Application Scenarios & The “Trench” Experience
During a critical batch production run, an aging touchscreen digitizer on a food processing line panel stops registering touch commands near the screen corners, preventing operators from navigating recipe menus. Flashing the original GALILEO project runtime onto a verified replacement Eaton XV-440-10TVB-1-20 panel via CompactFlash card restores line control within an hour, preventing thousands of dollars in spoiled product batch losses.
- Automated Packaging & Bottling: Manages high-speed indexing, liquid fill volumes, and line status visualization.
- Plastic Processing Machinery: Tracks multi-zone barrel temperatures, pressure ramps, and hydraulic clamp limits.
- Building & Environmental Control: Serves as a central HVAC and cleanroom atmospheric monitoring node.
- Material Handling Systems: Provides real-time warehouse conveyor overview and crane positioning diagnostics.

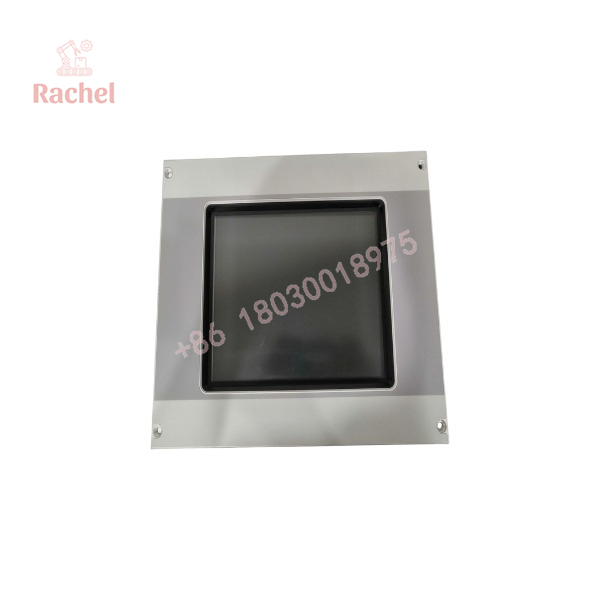

XV-440-10TVB-1-20

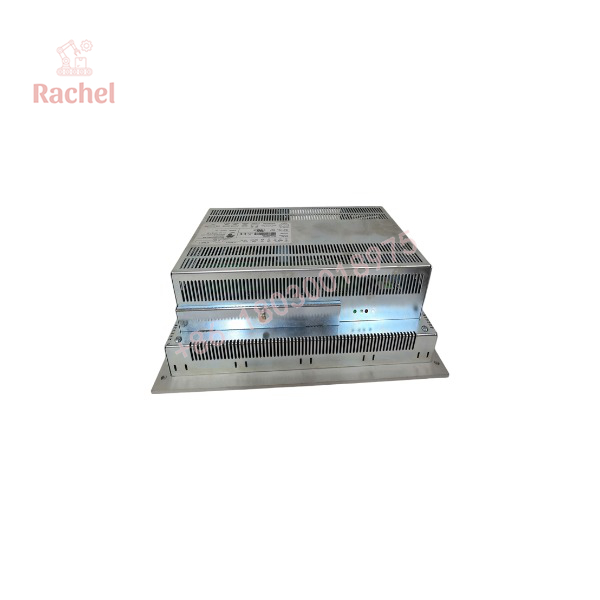

XV-440-10TVB-1-20
Transparency SOP: Quality Assurance & Testing
- Inbound Mechanical Audit: Inspect display glass for scratches or keying damage, verify IP65 front gasket integrity, and check rear terminal blocks and communication ports.
- Benchtop Power & POST Check: Apply 24V DC power; verify system boot sequence, bootloader screen execution, and backlight brightness without flickering.
- Full-Grid Touch Calibration: Conduct multi-point matrix touch testing across all screen areas to confirm precision point registration and zero drift.
- Communication Port Validation: Download test runtime projects via Ethernet and serial COM ports; run continuous polling diagnostics to confirm transceiver health.
- ESD & Protective Shipping Packaging: Enclose unit in anti-static shielding bags, cushion with customized foam inserts, and place in rigid corrugated export boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Software Runtime Compatibility: The XV400 series uses Eaton GALILEO (or XSOFT-CODESYS for panel-PLC variants). Ensure your project file target matches the exact resolution and OS build of the XV-440-10TVB-1-20 to avoid project load errors.
- ❗ Backlight Aging Symptoms: If the screen flashes on boot or shows uneven yellowing around the edges, the CCFL backlight tube is approaching end-of-life and should be serviced to avoid complete screen failure.
- ⚠️ CF Card Formatting Limits: When using CompactFlash cards to transfer project files or OS updates, use industrial-grade CF cards formatted in FAT16/FAT32 with small storage capacities (e.g., 512MB to 2GB) to ensure bootloader recognition.
- ❗ Retain System Memory Battery: Replace the internal lithium coin cell battery during routine panel maintenance to prevent loss of SRAM recipes, RTC time, and system logs during prolonged site power outages.
Frequently Asked Questions (FAQ)
Q: Is the XV-440-10TVB-1-20 a direct substitute for older XV-200 or Micro Innovation panels?
A: Cutout dimensions are often similar within equivalent 10.4-inch panel classes, but always check project screen resolution and fieldbus expansion slot compatibility before swapping hardware.
Q: Does this panel support both HMI display and PLC control execution?
A: Yes. Depending on installed software license keys (XSOFT-CODESYS), the XV-440-10TVB-1-20 can act as a combined HMI/PLC panel controller.
Q: What is the operating voltage for the XV-440-10TVB-1-20?
A: The panel operates on nominal 24 V DC power (acceptable range 20.4 V DC to 28.8 V DC).
Q: Can I back up the project file directly from the panel without source code?
A: Yes, provided the original system designer included compiled runtime files on the internal storage or CF card and did not password-protect the upload feature.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested Eaton XV-440-10TVB-1-20 panels include a full 12-month replacement warranty from the delivery date.
