Description
Product Introduction & Engineering Value
The XVC-601-GTI-10-V1-000 is an HMI rather than a PLC CPU, I/O module, or motor controller. Its job is to provide the operator-facing display and touch interface used to view machine conditions, alarms, process values, and control commands.
For a legacy machine, this distinction is important. A failed HMI can make an otherwise functional PLC-controlled system difficult or impossible for operators to run. Maintaining the correct XVC600-family display can therefore be a practical way to preserve the existing control architecture without immediately redesigning the PLC and operator interface layer.
The exact model is listed by multiple industrial suppliers as an Eaton XVC600/XVC601-family 10-inch operator interface, with 24 VDC / 1.1 A electrical requirements.
Technical Specifications
Core Electrical and Mechanical Data
| Specification | Value |
|---|---|
| Manufacturer | Eaton / Klockner-Moeller |
| Model | XVC-601-GTI-10-V1-000 |
| Alternate model notation | XVC601GTI10V1000 |
| HMI family | XVC600 / XVC601 |
| Display | 10-inch |
| Interface | Touchscreen |
| Input power | 24 VDC |
| Rated current | 1.1 A |
| Product category | HMI / MMI / Operator Interface |
| Approx. weight | 8.80 lb |
| Manufacturer status | Discontinued |
The 24 VDC / 1.1 A specification is consistently reported for the exact model by the available industrial parts records.
What Should Not Be Assumed
Several third-party listings attach additional specifications to this part—such as particular display resolutions, IP ratings, touch technologies, processors, memory sizes, or communication protocols. Those claims are not sufficiently supported by the stronger exact-part documentation reviewed here.
For engineering documentation, do not automatically publish those family-level or reseller-generated specifications as model-specific facts.
The verified identification is:
Eaton XVC-601-GTI-10-V1-000
10-inch touchscreen operator interface
24 VDC
1.1 A
That is the defensible minimum specification set for procurement.
Related Variant Warning
A closely related model, XVC-601-GTI-10-DPM-V1-000, is also referenced by suppliers. Do not treat the DPM variant as interchangeable solely because the model names are similar. The complete suffix must be matched against the installed HMI.
Field Application & “Trench” Experience
Typical Industrial Applications
The XVC-601-GTI-10-V1-000 can be encountered as the operator interface on legacy industrial equipment where a graphical touchscreen is used for:
- Machine status monitoring
- Alarm and fault display
- Production parameter entry
- Manual machine controls
- Process-value visualization
- Operator diagnostics
- Maintenance screens
- Machine setup procedures
Plausible Maintenance Scenario
A production machine continues to execute its PLC program, but the operator suddenly loses access to the touchscreen. The control cabinet remains powered, PLC diagnostics are normal, and field devices respond correctly.
The failed component is the HMI.
This is a common legacy-control failure pattern: the control logic survives, but the human interface becomes the bottleneck. Replacing the HMI with a visually similar modern panel is not necessarily a drop-in solution because the original application project, communication drivers, display dimensions, mounting, power requirements, and runtime environment all have to be considered.
For this reason, keeping a known-compatible XVC-601-GTI-10-V1-000 in controlled spare stock can be preferable to discovering the incompatibility during an unplanned production outage.

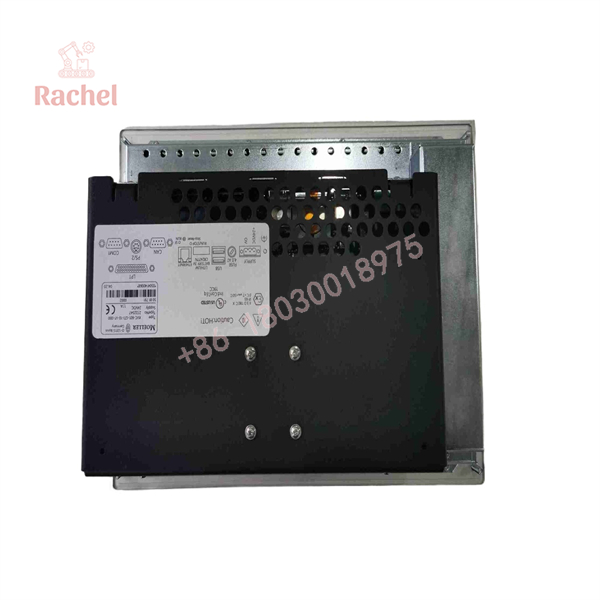

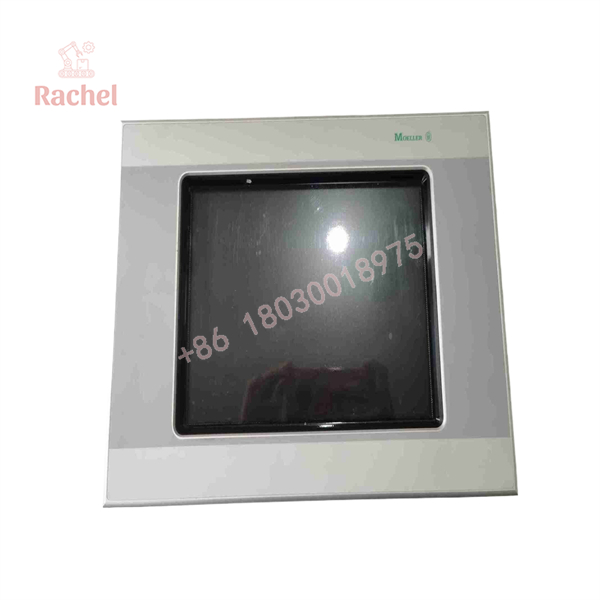

XVC-601-GTI-10-V1-000
XVC-601-GTI-10-V1-000
Transparency SOP: QA & Testing
For this legacy HMI, visual inspection alone is insufficient.
Recommended Incoming Inspection
1. Model verification
Confirm the complete marking:
XVC-601-GTI-10-V1-000
Do not accept “XVC601” or “XVC600” as sufficient identification.
2. Electrical inspection
Verify:
- 24 VDC input requirement
- Power-terminal condition
- Connector integrity
- Evidence of reverse-polarity or overvoltage damage
3. Display inspection
Check the LCD for:
- Dead pixels
- Dark areas
- Uneven illumination
- Cracked glass
- Scratches
- Delamination
- Burn-in
- Backlight degradation
4. Touchscreen inspection
Test touch response across the usable screen area. Pay particular attention to:
- Dead zones
- False touches
- Poor calibration
- Intermittent response
- Edge-area sensitivity
5. Functional test
A meaningful test should include:
- Power-up from a controlled 24 VDC supply.
- Verification that the HMI completes its startup sequence.
- Touchscreen response testing.
- Display inspection.
- Communication testing with a compatible control system.
- Verification of the loaded application/runtime where available.
New Surplus Authenticity
For a New Surplus , request photographs showing the complete Eaton/Klockner-Moeller identification label and the front/rear assemblies.
New Surplus should mean unused inventory, but it does not automatically establish a current Eaton factory warranty. The exact supplier’s warranty must be documented separately.
Radwell, for example, distinguishes “Never Used Original Packaging,” “Never Used Radwell Packaging,” and “Refurbished” conditions and states that its own two-year warranty applies to its listed inventory.
Another supplier currently advertises a one-year warranty while explicitly stating that it is not an authorized Eaton distributor and that the factory warranty may not apply.
Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t confuse the HMI with the controller
The is an operator interface.
It is not the PLC CPU responsible for executing the machine-control program.
Replacing the HMI does not automatically restore the application if the replacement does not contain the appropriate project/runtime configuration.
⚠️ Trap #2 — Match the complete suffix
The exact designation is:
Do not substitute another XVC600/XVC601 unit merely because it has a 10-inch touchscreen.
The related XVC-601-GTI-10-DPM-V1-000 demonstrates why complete model identification matters.
PRO TIP: Photograph the old HMI’s entire nameplate before ordering. Include the model, revision, serial information, and any software/runtime identification visible on the unit.
⚠️ Trap #3 — Don’t assume the application is interchangeable
A physically compatible HMI is not necessarily a functional replacement.
Before purchasing, verify:
- Existing HMI application
- Runtime/software environment
- PLC communication method
- Communication hardware
- Screen resolution requirements
- Mounting dimensions
- Power supply
- Cable/connector configuration
⚠️ Trap #4 — Don’t overlook lifecycle risk
act is listed as discontinued by the manufacturer in current industrial inventory records.
For equipment still dependent on this HMI, this should trigger a lifecycle review rather than just a one-time replacement purchase.
Dynamic FAQ
ton ?
It is a 10-inch touchscreen industrial operator interface/HMI from the Eaton / Klockner-Moeller XVC600/XVC601 family.
Wthe require?
The exact-part records specify 24 VDC with a 1.1 A current rating.
What size display does it have?
The model is documented as having a 10-inch touchscreen.
Is discontinued?
Yes. Current industrial inventory documentation identifies the exact model as discontinued by the manufacturer.
Is a PLC?
No. It is an operator interface/HMI. It provides the operator-facing display and controls but should not be confused with the PLC CPU or I/O system.
Is interchangeath another XVC600 HMI?
Not automatically. The complete part number, hardware revision, application/runtime, communication configuration, mechanical dimensions, and electrical requirements should be checked before treating another XVC600-family unit as a replacement.
What should I verify when buying New Surplus?
At minimum, request:
- Complete part number
- Eaton/Klockner-Moeller label
- Hardware revision
- Serial information
- Front and rear photographs
- Display condition
- Touchscreen test result
- Power-up test
- Application/runtime status
- Warranty terms
Is New Surplus covered by an Eaton factory warranty?
Not necessarily. The part is discontinued, and third-party suppliers may provide their own warranties instead. For example, Radwell advertises a two-year warranty on its inventory, while another supplier advertises a one-year warranty and explicitly notes that the factory warranty may not apply.
What is the correct procurement description?
Use:
Eaton / Klockner-Moeller XVC-601-GTI-10-V1-000, XVC600/XVC601 Series, 10-Inch Touchscreen Operator Interface, 24 VDC, 1.1 A.
For a replacement purchase, require the supplier to confirm the complete model number and functional test status, rather than accepting a generic “XVC600 10-inch HMI” description.
