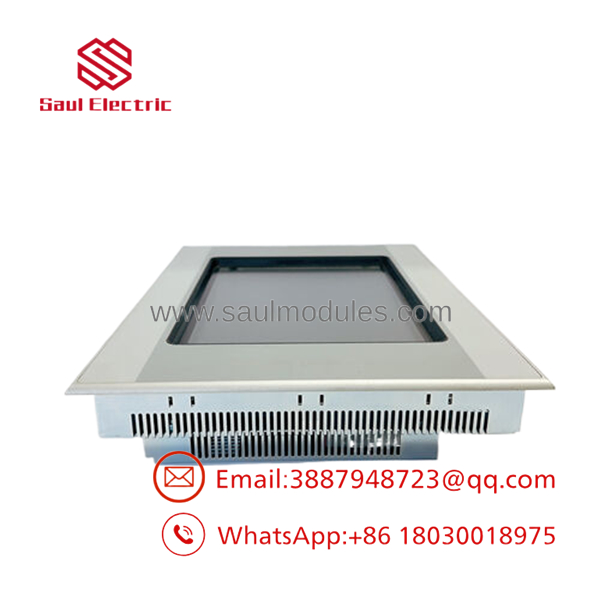

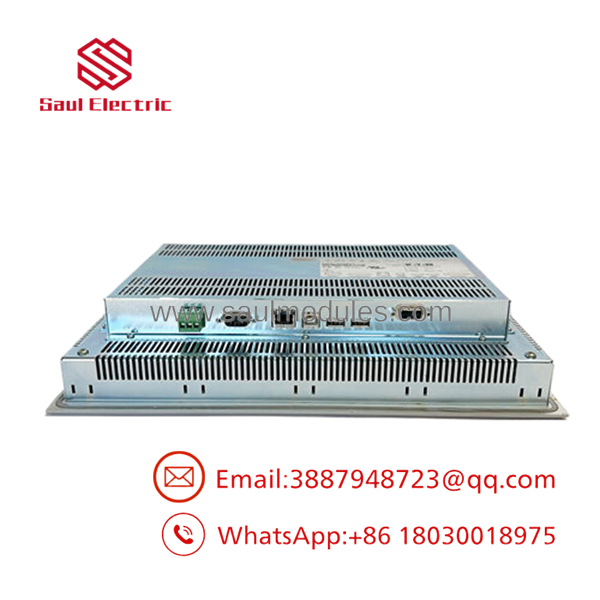

Eaton XVS-440-10MPI-1-1AD 10.4″ HMI with PROFIBUS MPI

Description

Product Introduction

The Eaton XVS-440-10MPI-1-1AD is an industrial operator interface from the XVS400 family designed for machine visualization, alarm handling, recipe management, and optional PLC execution. It is commonly found on packaging machinery, automotive assembly equipment, process skids, and OEM production systems that communicate with Siemens S7 controllers through the MPI or PROFIBUS interface.

Unlike basic operator terminals, the XVS-440 platform allows PLC functionality to be enabled through Eaton’s software licensing. Combined with Ethernet, PROFIBUS/MPI, USB, CompactFlash storage, and Windows CE, it provides a flexible platform for maintaining legacy automation systems without redesigning the control architecture.

Key Technical Specifications

XVS-440-10MPI-1-1AD

XVS-440-10MPI-1-1AD

Application Scenarios & The “Trench” Experience

A machine is restarted after scheduled maintenance. The replacement HMI powers up immediately, but the Siemens S7-300 PLC remains offline. Maintenance replaces cables, switches, and even the CPU before discovering the replacement panel doesn’t have the correct MPI configuration.

I’ve watched teams lose an entire production shift because they ordered “an XVS400” instead of the exact MPI variant.

Typical Applications

Packaging Industry — Cartoners, palletizers, and wrapping machines — Native PROFIBUS/MPI communication with Siemens S7 controllers eliminates additional protocol converters.

Automotive Manufacturing — Robotic assembly cells — Ethernet supports engineering access while MPI maintains deterministic PLC communication.

Food & Beverage — Filling and labeling equipment — Recipe management, alarm history, and production monitoring through a dedicated operator interface.

Material Handling — Conveyor systems — Real-time operator diagnostics while exchanging cyclic data with Siemens automation hardware.

OEM Machine Builders — Export machinery — One HMI platform can be expanded with PLC licensing without replacing the hardware.

Field Replacement Example

A pharmaceutical packaging machine built around an S7-400 PLC experienced an HMI failure after thirteen years of continuous operation. The replacement hardware arrived the next morning, but communication failed because the MPI station address had not been copied from the original panel. After restoring the CompactFlash image, matching the MPI address, and downloading the GALILEO project, production resumed before the afternoon shift. The hardware installation required twenty minutes. Configuration verification consumed nearly three hours.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Eaton XVS-series hardware whenever practical.

• Inbound Inspection
  • Verify Eaton identification labels and model suffix.
  • Inspect metal housing, laminated safety glass, and connectors.
  • Examine CompactFlash slots for damage.
  • Screen for counterfeit components.
• Live Rig Testing
  • Power the unit with a regulated 24 VDC supply.
  • Verify Windows CE boot sequence.
  • Test infrared touch accuracy.
  • Confirm Ethernet communication.
  • Verify PROFIBUS/MPI and RS232 interfaces.
• Electrical Parameter Checks
  • Measure operating current.
  • Verify LCD brightness and touch response.
  • Test USB Host and USB Device ports.
  • Confirm CompactFlash read/write capability.
• Firmware Verification
  • Record Windows CE version.
  • Verify GALILEO runtime.
  • Document PLC runtime license status.
  • Record hardware revision.
• Final QC & Packaging
  • Complete functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping materials.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t order by screen size alone.
The MPI interface is the reason this model exists. A standard Ethernet HMI may fit mechanically but will never communicate with an S7 PLC over MPI.

⚠️ Clone the CompactFlash card before replacing anything.
Windows CE, GALILEO projects, recipes, and alarm history are commonly stored on the CF card. If the card still reads, make a complete image before removing it.

❗ Verify the MPI station address.
Many engineers replace hardware only to discover the new panel is using the default network address. Always compare communication parameters before powering up.

⚠️ Don’t assume PLC functionality is enabled.
The XVS400 hardware supports PLC execution, but the runtime depends on the optional LIC-PLC-MXP-MEDIUM license. Without it, the unit operates strictly as an HMI.

Frequently Asked Questions (FAQ)

Q1. Does the XVS-440-10MPI-1-1AD include an integrated PLC?

The hardware is PLC-ready, but PLC execution requires Eaton’s LIC-PLC-MXP-MEDIUM runtime license. Without that license, it functions as an HMI only.

Q2. Can it communicate directly with Siemens S7-300 and S7-400 PLCs?

Yes. The integrated PROFIBUS/MPI interface is designed specifically for Siemens S7 communication. Verify the MPI node address and baud rate during commissioning.

Q3. Does the panel support hot swapping?

No. Remove control power before replacing the operator panel. Disconnecting the unit while energized can interrupt fieldbus communication and may corrupt CompactFlash data.

Q4. Which engineering software is compatible?

The platform supports GALILEO for HMI development and XSOFT-CODESYS 2 or XSOFT-CODESYS 3 for PLC programming when the PLC runtime license is installed.

Q5. Is this model still manufactured?

No. Eaton has discontinued the XVS400 family. Replacement units are typically sourced from industrial surplus inventory or professionally refurbished stock.

Q6. Why is surplus inventory less expensive than purchasing directly from the OEM?

Most available inventory comes from canceled machine projects, unused maintenance stock, or plant modernization programs. These are genuine Eaton products that remain available after the original production program ended.

Q7. What should I verify before installation?

Confirm the CompactFlash contents, Windows CE version, GALILEO project, MPI station address, Ethernet settings, installed PLC license, and the complete model suffix (XVS-440-10MPI-1-1AD). Verify connector pin assignments and communication parameters with the official Eaton documentation before energizing the replacement.
