Eaton XVS-440-57MPI-1-1Z HAPA 5.7-Inch Industrial HMI Touch Panel

Description

Product Introduction

The Eaton XVS-440-57MPI-1-1Z HAPA is a specialized 5.7-inch industrial HMI operator terminal specifically built for HAPA AG high-precision inline printing and packaging systems (widely used in pharmaceutical, medical device, and specialized manufacturing plants). Built on Eaton’s high-performance XVS400 platform, it features an integrated Siemens MPI / PROFIBUS DP interface for direct communication with Siemens S7 PLCs that drive complex printing, foil stamping, and web inspection lines.

Housed in a rugged metal chassis with an IP65-rated front bezel, this unit is engineered to withstand continuous 24/7 operation in cleanroom or high-dust production spaces. The “-1-1Z HAPA” suffix indicates custom hardware keying, specialized boot ROM parameters, or proprietary firmware matching for drop-in integration into HAPA machinery without requiring custom network re-configuration.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:30 AM in a high-throughput pharmaceutical packaging cleanroom. An inline UV flexo printer or blister-foil printing station halts with a sudden HMI communication lockup. The operator panel touch response dies, locking out critical batch print job setpoints, lot number verification, and print-head registration routines. Standard off-the-shelf Eaton XVS terminals throw bootloader or parameter errors because the HAPA controller expects a specific OEM hardware handshake signature (“-1-1Z HAPA”). Swapping in an exact-match XVS-440-57MPI-1-1Z HAPA unit, transferring the CompactFlash runtime card, and connecting the Sub-D9 MPI link gets the printing cell online again in under 20 minutes—saving thousands of blister packs from batch rejection.

• Pharmaceutical Blister Foil Printing (HAPA Systems) – Serves as the dedicated local operator terminal managing print-head positioning, ink curing timing, and vision sensor synchronization.
• Siemens S7 MPI/PROFIBUS Networks – Plugs directly into S7-300 / S7-400 PLC architecture driving high-speed feeder drives and web tension controllers.
• Cleanroom Packaging Lines – Flush-mounted on stainless steel machine consoles where IP65 protection resists liquid washdown routines and sterilization spray.

Transparency SOP: Quality Assurance & Testing

Every unit undergoes a comprehensive multi-point bench audit prior to shipment:

1. OEM Hardware & Bezel Inspection: Detailed physical check of the 5.7″ resistive touch overlay, rear metal chassis, connector pins, and continuous IP65 perimeter gasket.
2. 24V DC Voltage Sweep & Power-Up Test: Connected to a precision bench DC power supply and swept between 19.2V and 30.0V DC to verify internal DC-DC converter stability and clean OS boot cycles.
3. Resistive Touch Screen Calibration: Full-surface matrix calibration test verifying 100% touch responsiveness across all screen quadrants to eliminate drift or dead zones.
4. MPI / PROFIBUS DP Port Stress Test: Active communication verification using a Siemens S7 test rack, verifying stable data transmission from 187.5 kbit/s up to 12 Mbit/s without dropped frames or bus faults.
5. Anti-Static Cleaning & ESD Packaging: Treatment against static discharge, vacuum-sealed in anti-static ESD shielding bags with fresh desiccant, and packed inside high-impact foam boxes.

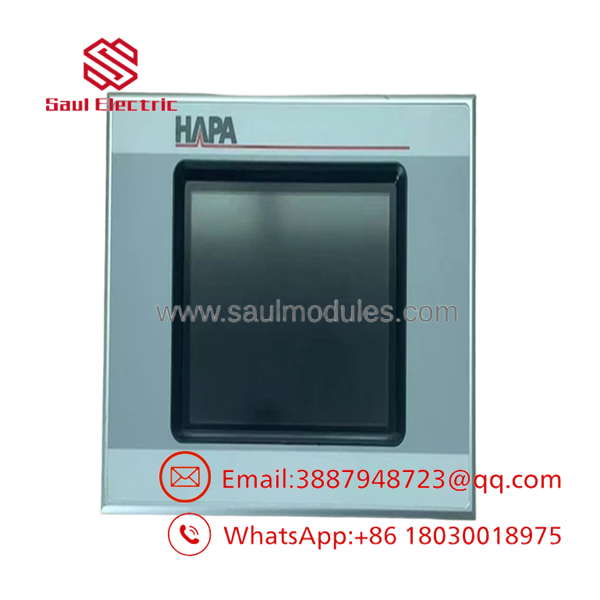

XVS-440-57MPI-1-1Z HAPA

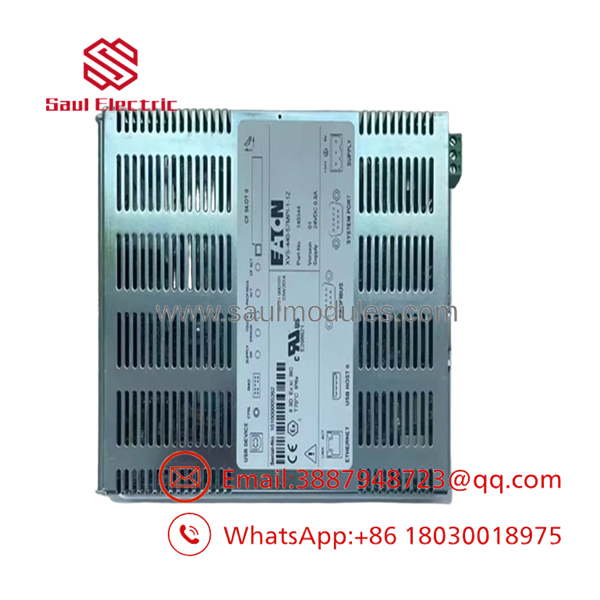

XVS-440-57MPI-1-1Z HAPA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Pay Close Attention to the “HAPA” Designation!

  Standard Eaton catalog numbers (like XVS-440-57MPI-1-10) share the same display size and MPI port, but machine builders like HAPA often utilize customized firmware images or EEPROM flags (-1-1Z HAPA). Attempting to load a HAPA machine project onto a standard generic Eaton panel may trigger “Hardware Version Mismatch” or PLC communication rejection errors.

• ❗ Verify PROFIBUS / MPI Termination Settings

  When plugging the 9-pin Sub-D connector into the MPI/PROFIBUS port, check whether this panel is the final node on the daisy-chain segment. If it is the end device, make sure the termination resistor switch on the DB9 plug is switched to ON to prevent signal reflection on the high-speed bus.

• ⚠️ Use Industrial CompactFlash Cards for Project Data

  Runtime graphics, OS images, and HAPA machine parameters are typically read from the onboard CompactFlash slot. Always use an industrial-grade Type I CompactFlash card formatted in FAT16/FAT32 (maximum 2 GB recommended for Windows CE stability). Standard commercial retail CF cards often fail prematurely under continuous machine vibration.

• ❗ Connect Frame Ground Rail Directly to Enclosure Earth

  Attach a low-impedance grounding wire from the chassis ground terminal on the back of the panel directly to the cabinet ground rail. Proper grounding shields the sensitive 5.7″ resistive touch screen and high-speed MPI communication transceiver from electrical noise generated by nearby servo drives and UV curing ballasts.

Frequently Asked Questions (FAQ for Conversion)

Q: What does “HAPA” mean in part number XVS-440-57MPI-1-1Z HAPA?

A: “HAPA” indicates that this unit was custom-manufactured or parameter-configured for HAPA AG, a premier global manufacturer of packaging and inline printing machinery for pharmaceutical applications.

Q: Can I replace a standard XVS-440-57MPI-1-10 with this HAPA variant (or vice versa)?

A: Hardware-wise, the core physical frame and electrical ports are identical. However, due to potential OEM-specific bootloader software or firm-keying in the HAPA variant, it is always recommended to use the exact -1-1Z HAPA replacement part to guarantee instant plug-and-play compatibility with your HAPA machine system.

Q: What software is used to program or edit screens on this unit?

A: Visualization projects for Eaton XVS400 series panels are built using Eaton’s Galileo software, while integrated soft-PLC routines (if enabled) are managed via XSoft-CoDeSys.

Q: Is the touch screen resistant to alcohol or cleanroom sanitizers?

A: Yes. The front face features a durable polyester overlay rated for IP65 / NEMA 4X protection, designed to withstand routine cleaning with isopropyl alcohol and mild industrial wipe-down agents when properly flush-mounted into an enclosure door.
