ELAU Schneider MC-4/11/03/400 PacDrive Servo Drive 3A 400V

Description

Product Introduction

The ELAU MC-4/11/03/400 (MC-41103400) is a single-axis compact AC servo drive engineered specifically for high-speed automated packaging lines, bottling facilities, and converting equipment. Integrated under Schneider Electric’s PacDrive architecture, this drive acts as a core execution node for precise torque, velocity, and position control loops in multi-axis motion configurations.

Unlike bulkier legacy drives requiring external filter hardware and complex discrete wiring, the MC-4/11/03/400 features a tightly integrated power section designed for direct wall mounting within localized control enclosures. Its dedicated real-time bus interface bypasses typical scan-cycle latency, making it the ideal direct replacement unit for line supervisors trying to maintain high-RPM synchronization without re-tuning downstream motion profiles.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM on a high-speed bottling line running 600 units a minute. The cross-cutter axis on machine #3 drops a fault code, triggering an over-current lockup on the servo drive. The motor is fine, but the drive’s internal power stage is shorted. Every hour the line stays down costs $12,000 in unscheduled downtime and spilled product. Re-engineering the machine with modern Lexium drives would require changing the controller, redrawing CAD prints, and rewriting the motion library. You need an exact drop-in MC-4 drive with matching firmware so you can swap hardware, burn the existing parameter set, and get the line running before the morning shift starts.

• Flow Wrappers & Horizontal Form-Fill-Seal (HFFS): Controls rotary cutoff knives and end-seal jaws where millisecond-level synchronization prevents film jams.
• Bottling & Rotary Capping Lines: Manages precise torque profiles during high-speed bottle indexing and synchronized star-wheel feeding.
• Cartoners & Case Packers: Drives high-duty-cycle pick-and-place gantry axes requiring sharp deceleration profiles without tripping over-voltage faults.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ELAU PacDrive test rigs.

1. Inbound Inspection: Physical check for housing cracks, damaged SERCOS optical ports, bent terminal connector pins, and OEM seal integrity.
2. Power-Stage Megger Check: Insulation resistance testing on phase terminals (U, V, W) to ground to verify no internal transistor breakdown.
3. Live Rig Testing: Bench-mounted into a live PacDrive controller rack running 24V logic and 400V mains power.
4. Closed-Loop Motion Run: Driven against an ELAU SH-series servo motor under loaded dynamic cycles to verify real-time encoder feedback and torque delivery.
5. Firmware & Parameter Verification: Reading and logging internal software revision levels (SW: 00.22.xx series) via diagnostic tools.
6. Anti-Static Packaging: Sealed in ESD-shielding bags with custom foam inserts to prevent shock damage during transit.

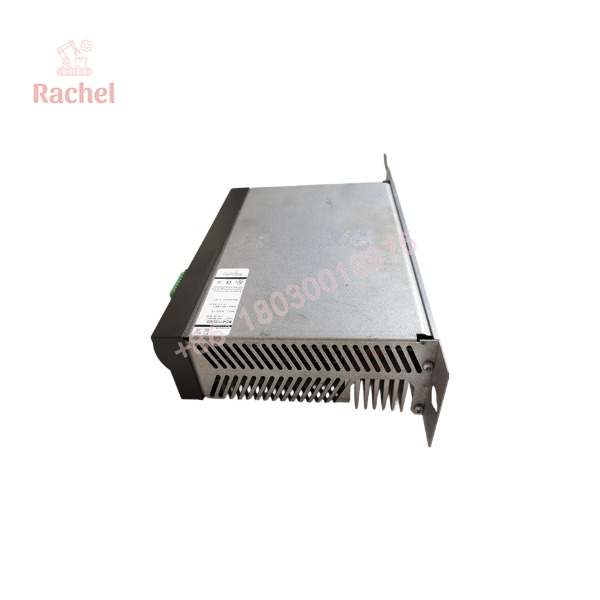

MC-4/11/03/400

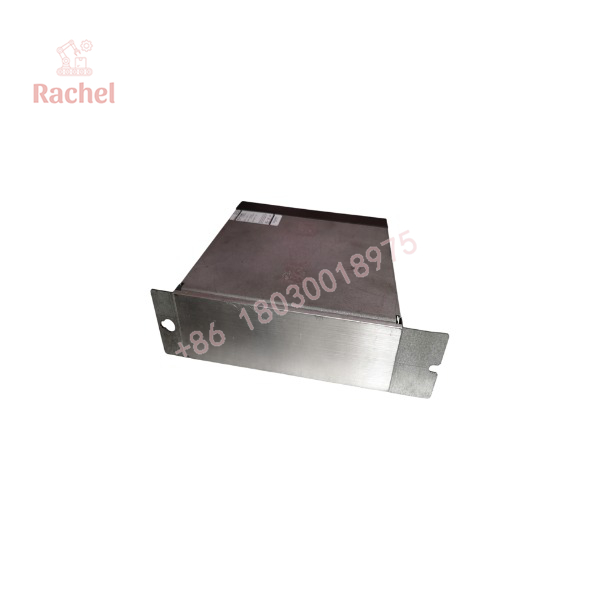

MC-4/11/03/400

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Never pull the SERCOS fiber-optic cables with the power live. The optical transceiver ports on the front panel of the MC-4 are delicate. Snapping a fiber connector or exposing the port to ambient oil mist will instantly drop the entire SERCOS ring loop, killing every axis on the machine.

❗ Mind your 24V DC logic supply quality. The logic section on the MC-4/11/03/400 is sensitive to voltage dips. If your 24V auxiliary power rail drops below 20.4V during a heavy brake resistor engagement, the drive will drop offline with an unprovoked control supply fault.

⚠️ Take a photo of the DIP switches and firmware label BEFORE unbolting the dead drive. The MC-4 series relies on exact firmware compatibility with the upstream C400/C600 controller. Installing a drive running an incompatible software revision (SW: 00.16.xx vs SW: 00.22.xx) will trigger an initialization handshake failure on startup.

❗ Check your external braking resistor. A shorted internal/external brake resistor will instantly blow the internal DC-bus fuse upon mains power application. Always measure resistance across the brake terminals before powering up a replacement drive.

Frequently Asked Questions (FAQ for Conversion)

Q: Does this drive require programming before installation?

A: No, the MC-4 drive stores parameter sets delivered by the main PacDrive controller upon boot. However, you must ensure the replacement drive’s firmware rev matches your system’s network requirements.

Q: Can I replace an MC-4/11/03/400 with a higher current model like the MC-4/11/05/400?

A: Mechanically and structurally, yes, but upscale substitution requires verifying that your thermal profile, line fuse ratings, and software axis configurations permit the larger drive frame without tripping motor parameter limits.

Q: Can I hot-swap this module while the 400V mains power is active?

A: Absolutely not. Pulling terminal blocks or optical links with 400V AC active will arc the backplane connectors and instantly trip upstream circuit protection. Power down mains and 24V control power before servicing.

Q: Why buy new surplus or reconditioned over an OEM upgrade?

A: Schneider has transitioned newer installations toward the PacDrive 3 / Lexium platform. Upgrading to the current line requires replacing controllers, drives, and motors simultaneously. Sourcing a pre-tested MC-4 unit preserves your existing panel footprint for a fraction of the upgrade cost.

Q: What warranty comes with this drive?

A: Every unit is backed by a full 12-month operational replacement warranty. If the drive fails during standard operational use within one year, we replace it immediately.
