Product Introduction & Engineering Value
When a plant loses a relay output module, the failure often appears larger than the component itself. Motor starters, annunciators, interlocks, and auxiliary equipment can all be affected at once. The Emerson 1C31219G01 provides the switching interface between an Ovation controller and mechanical relay assemblies used for industrial control applications.
Built for Ovation I/O architectures, this 16-channel relay output electronics module manages relay command signals and status functions while working with dedicated relay base assemblies. It remains a common lifecycle spare for facilities maintaining legacy Ovation control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson Process Management |
| Model Number | 1C31219G01 |
| Platform | Ovation DCS |
| Module Type | Relay Output Module |
| Number of Channels | 16 channels |
| Relay Interface | Mechanical relay base assembly interface |
| Compatible Base Assembly | 1C31223G01 G2R style |
| Compatible Base Assembly | 1C31222G01 KUEP style |
| Auxiliary Voltage Range | 18 VDC to 25.5 VDC |
| Typical Module Power | 1.88 W |
| Maximum Module Power | 2.5 W |
| Primary Function | Switching high AC/DC voltage loads through relay contacts |
Field Application & The “Trench” Experience
A municipal power generation facility experienced repeated failures of several auxiliary control outputs during a planned outage. Operators reported that breaker status indications were inconsistent, and several remote annunciation points were unavailable.
The maintenance team initially suspected wiring problems because the field devices remained operational. During cabinet inspection, technicians found that the relay output electronics module was no longer driving the connected relay base assembly correctly. Replacing the failed unit with an Emerson 1C31219G01 restored all 16 output channels after I/O verification.
The lesson was simple: relay output failures are not always field device failures. The interface module in the control cabinet is often the actual failure point.
Typical applications include:
- Generator auxiliary equipment control panels for pump, fan, and motor starter commands
- Boiler protection interlock systems requiring discrete relay outputs
- Turbine auxiliary sequencing systems using relay-based control circuits
- Plant alarm and annunciator cabinets connected through Ovation discrete outputs

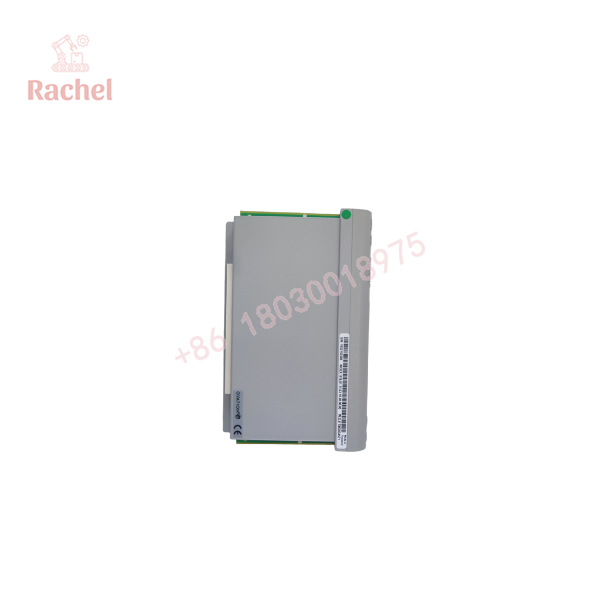

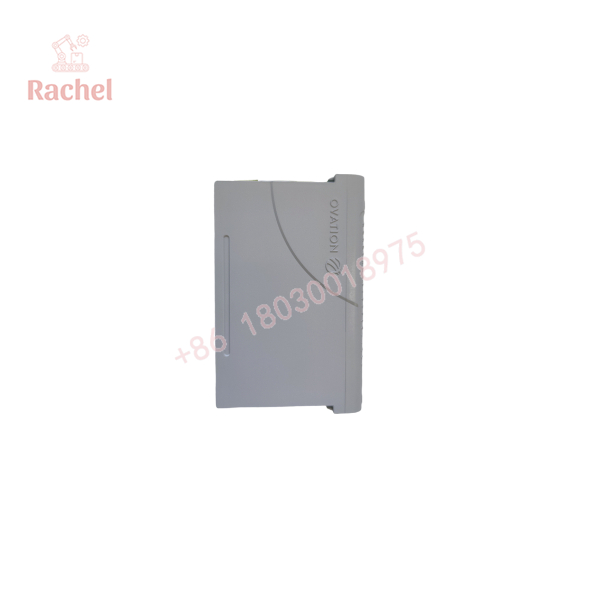

1C31219G01
1C31219G01
Transparency SOP: QA & Testing
A relay output module should be tested as a control component, not only inspected as an electronic spare.
Pre-stock verification process:
- Identity Confirmation
- Verify part number: 1C31219G01
- Confirm Emerson/Ovation labeling.
- Check hardware revision information.
- Physical Inspection
- Inspect edge connectors and locking mechanism.
- Check PCB condition for corrosion, contamination, or damage.
- Verify no relay interface pins are bent or damaged.
- Electrical Testing
- Confirm power consumption is within expected range.
- Verify output channel response.
- Test controller communication interface.
- Inventory Documentation
- Record serial number.
- Document New Surplus or Refurbished status.
- Maintain test records for emergency replacement use.
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Treating the Module as a Standalone Relay Card
The 1C31219G01 does not contain the field relays itself. It interfaces with separate relay base assemblies.
Correct combinations include:
- 1C31219G01 + 1C31223G01 → 16-channel G2R relay output configuration
- 1C31219G01 + 1C31222G01 → KUEP relay output configuration
⚠️ Trap #2: Ignoring Relay Contact Ratings
Replacing the electronics module does not guarantee the connected relay assembly is suitable for the load.
PRO TIP: Always verify:
- AC/DC voltage level
- Switching current
- Contact configuration
- External protection devices
⚠️ Trap #3: Mixing Ovation Output Families
Do not assume every Ovation output module is interchangeable.
A relay output module is not equivalent to:
- Digital output modules
- Sequence-of-events modules
- Compact I/O output assemblies
The controller may recognize the hardware incorrectly, causing unexpected behavior.
Dynamic FAQ
Q1. What is the Emerson 1C31219G01 used for?
The Emerson 1C31219G01 is a 16-channel relay output electronics module for Ovation DCS systems. It provides the control interface between the Ovation controller and external relay assemblies.
Q2. Does the 1C31219G01 include the output relays?
No. The module interfaces with separate relay base assemblies such as 1C31223G01 or 1C31222G01. The relay contacts are part of the base assembly configuration.
Q3. How many output channels does 1C31219G01 support?
The module supports 16 relay output channels.
Q4. Can 1C31219G01 replace any Ovation digital output module?
No. It is specifically designed for relay output applications. Confirm the existing I/O configuration before replacement.
Q5. What should buyers verify when purchasing New Surplus 1C31219G01?
Recommended verification points:
- Original Emerson part marking
- Correct G01 revision
- Storage condition
- Connector quality
- Functional test documentation
- Warranty terms
Q6. Is refurbished 1C31219G01 suitable for critical plant inventory?
Yes, if the unit has passed electrical testing and output verification. For legacy Ovation installations, tested refurbished modules are often maintained as contingency spares.
