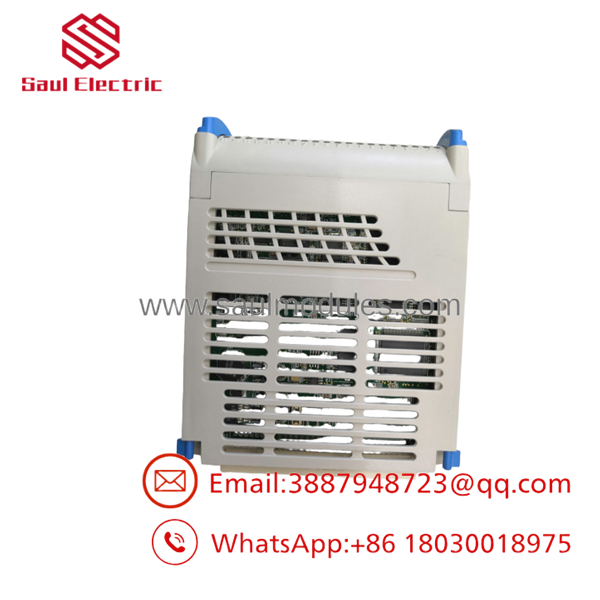

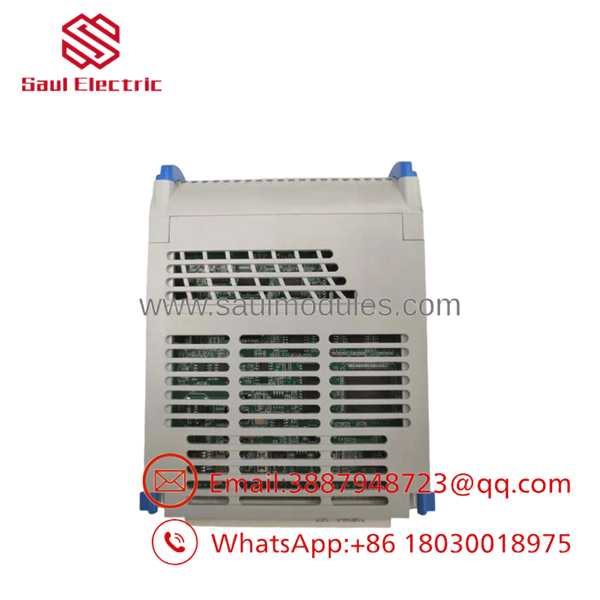

Emerson Westinghouse 5X00062G01 Power Supply Module

Description

Product Introduction

The Emerson Westinghouse 5X00062G01 is a critical System Power Supply Module built for the Ovation Distributed Control System (DCS). It serves as the primary power foundation, stepping down and conditioning raw utility or station power into ultra-stable DC voltages required by Ovation controllers, sub-tier logic cards, and I/O baseplates.

Engineered for continuous operation in harsh industrial plants, the 5X00062G01 includes high-grade EMI filtering, surge suppression, and short-circuit protection. Its clean power delivery prevents logic resets, analog signal noise, and backplane comm drops that occur when field utility power suffers voltage sags or high-frequency line spikes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It is 3:15 AM on a hot summer night during a thunderstorm. Lightning strikes near a combined-cycle power plant, causing a brief grid voltage sag. The plant’s main DCS rack reboots unexpectedly because an aging power supply module had degraded filter capacitors that could not hold up the DC rail for the required 20-millisecond ride-through window. The entire turbine island trips offline instantly.

To be honest, power supplies like the 5X00062G01 are the most thermally stressed components in any cabinet. Primary application scenarios include:

• Power Generation – Primary Controller Racks: Supplies ripple-free power to main controller CPUs and system communication highways.
• Oil & Gas – Remote I/O Cabinets: Delivers reliable power to field termination baseplates in harsh ambient temperature enclosures.
• Chemical Refineries – Safety Instrument Systems (SIS): Maintains constant logic power to prevent false trip execution on safety interlocks.
• Pulp & Paper – Heavy Motor Control Panels: Filters out severe line noise caused by continuous large variable frequency drive switching.

Field Case Study: A municipal utility in Indiana faced an emergency when a power supply module in their primary boiler control rack failed after 12 years of continuous operation, dropping power to two I/O baseplates. Emerson quoted a multi-week factory lead time for a replacement. We pulled a 5X00062G01 from surplus stock, load-tested the output regulation across 0-100% current draw on our bench, and shipped it overnight. The site team installed the module during a scheduled 30-minute window, clearing all backplane fault alarms and restoring full system redundancy before morning peak demand.

5X00062G01

5X00062G01

Transparency SOP: Quality Assurance & Testing

We do not just ship surplus boxes; we test them on actual Emerson Ovation hardware under full electrical load. Our 5-step SOP includes:

1. Inbound Visual & Component Check: Inspect internal power transformers, check for swollen or leaking electrolytic capacitors, verify trace heat integrity, and confirm OEM serial tags.
2. AC/DC Input Isolation Test: Perform high-potential insulation and isolation checks to verify ground safety and primary-to-secondary isolation.
3. Full-Load DC Output Stress Test: Apply a full rated current load on a dedicated test bench for 4 hours while monitoring voltage regulation and output ripple on an oscilloscope.
4. Thermal Chamber Stress Run: Run the power supply inside an elevated-temperature test enclosure to ensure internal thermal cutouts and regulation circuits perform reliably under load.
5. ESD-Safe & Cushioned Packaging: Seal the cleared unit in anti-static bags and enclose it in custom high-density foam cradles to prevent transit shock damage.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Input Voltage Select Jumpers/Wiring: Always check whether your cabinet feeds the 5X00062G01 with 120VAC, 240VAC, or 125VDC before energizing. Applying 240VAC to a unit configured for 120VAC will blow the primary input MOV surge suppressors and internal fuses immediately.
• ❗ Never Paralleled Non-Redundant Supplies: If your rack uses diode-OR’d redundant power supplies, verify that both units have their voltage outputs trimmed within 50mV of each other. If one supply is set too high, it will carry 100% of the load, causing it to run hot and fail prematurely.
• ⚠️ Inspect the Baseplate Backplane Pins: Ovation power supply slots use heavy-current backplane connections. Inspect the backplane slot with a flashlight before seating the card. Bent or oxidized pins will cause local overheating and voltage drop at the card edge.
• ❗ Check Cabinet Ventilation Fans First: Power supplies generate heat. If the cooling fan on top of your Ovation cabinet is dead, the new 5X00062G01 will run hot and trip its internal thermal protection within hours. Replace dead cabinet fans before installing new power hardware.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 5X00062G01 hot-swappable in a redundant power configuration?

A: Yes. If your Ovation rack is configured with dual redundant power supply modules and diode-ORing baseplates, you can pull a failed 5X00062G01 and seat a replacement without interrupting system operation or dropping the controller.

Q: What is the primary failure mechanism on these power supply modules?

A: Electrolytic capacitor drying. Over years of exposure to ambient cabinet heat, internal electrolytic capacitors lose capacitance and increase ESR, leading to high voltage ripple and eventual overcurrent or undervolt tripping.

Q: Does this module require software configuration in Ovation Developer Studio?

A: No. The 5X00062G01 is a pure hardware power delivery module. It requires no software configuration, IP setup, or firmware flashing upon replacement.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: OEM factory lead times for legacy Ovation power hardware can extend out for months. Our surplus modules are fully bench-tested under full electrical load, ready to ship today, and priced significantly lower without compromising plant uptime.

Q: What warranty coverage comes with this module?

A: We cover the 5X00062G01 with a full 12-month replacement warranty. If it fails on your test bench or in the field, we swap it immediately from our ready stock.
