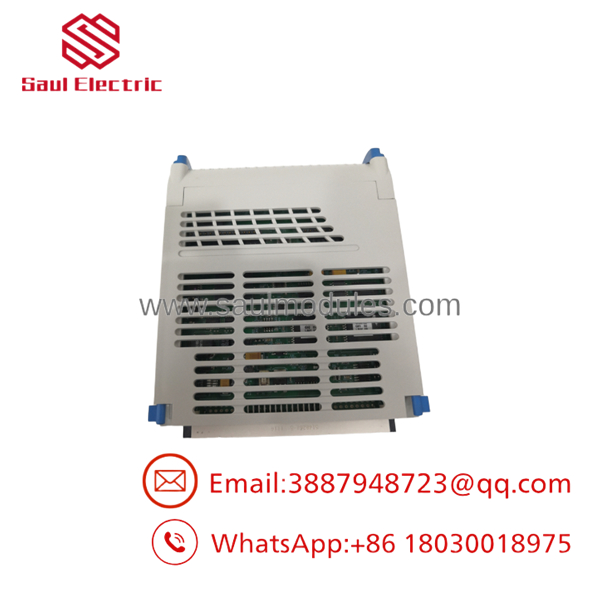

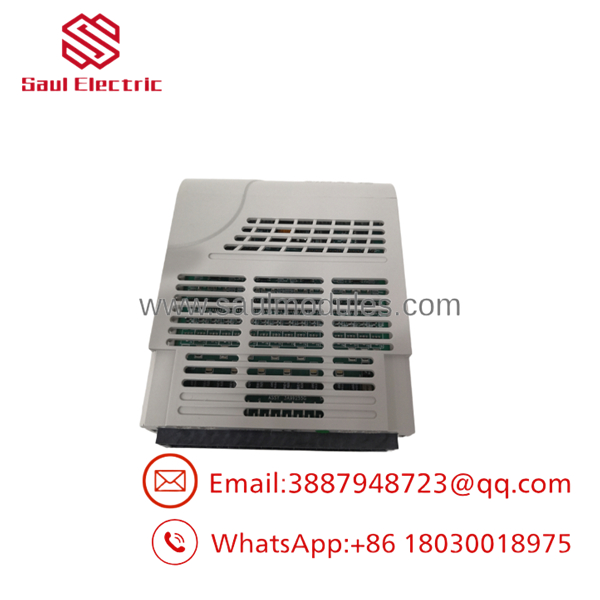

Emerson 5X00357G04 Ovation Events Input Contact Module

Description

Product Introduction & Engineering Value

The 5X00357G04 is an Ovation events input contact module intended to capture discrete field events such as equipment status, breaker position, relay states, and other contact transitions. Available supplier documentation identifies it as a 16-channel module with 48 VDC input circuitry.

This is not an analog-input card. That distinction matters. The module is designed around discrete/contact-event acquisition, making it useful where the timing and sequence of status changes matter during plant operation or post-event analysis. DCS Center also identifies 5X00357GO4 as a common typographical error for the actual part number 5X00357G04.



Technical Specifications

Parameter	Specification
Part Number	5X00357G04
Manufacturer	Emerson / Westinghouse
System	Ovation DCS
Product Type	Events Input Contact Module
Input Channels	16
Input Signal	Digital / contact
Nominal Input Voltage	48 VDC
Input Current	Approximately 5 mA/channel
Isolation	Optically isolated inputs reported by current supplier documentation
Primary Function	Contact-event acquisition
Typical Signals	Breaker, relay, switch, equipment-status contacts
Module Weight	Approximately 0.3–0.32 kg

Current supplier documentation consistently identifies the part as an Events Input Contact Module and reports 16 channels and 48 VDC operation.

Important specification caveat

Several third-party listings give conflicting technical details for this exact part number. One describes it as a 16-channel, 48 VDC event-input module, while others incorrectly classify it as an analog-input, controller, or output product.

For procurement purposes, I would use Events Input / Contact Module as the primary identification and would not publish unsupported claims about sampling rate, timestamp accuracy, temperature range, or communication protocol without the applicable Emerson/Ovation manual.



Field Application & the “Trench” Experience

Consider a power plant where the control room knows that a breaker tripped, but the sequence of events around the trip is unclear.

Was the protection relay first?

Did the breaker auxiliary contact change first?

Did another interlock operate before or after the trip?

That is where an events-input module becomes useful. The 5X00357G04 can bring discrete contact information into the Ovation system so equipment-status changes can be monitored as part of the control-system event record. The exact event-resolution capability, however, should be verified against the installed Ovation hardware and software revision rather than assumed from a reseller specification.

Specific application scenarios

• Generator breaker status monitoring: breaker open/closed contacts and associated relay indications.
• Turbine protection event capture: discrete relay and trip-status contacts used during sequence reconstruction.
• Motor and pump interlock monitoring: starter, overload, permissive, and shutdown contact states.
• Boiler protection systems: discrete equipment-status and trip contacts feeding the Ovation control system.

Transparency SOP: QA & Testing

For New Surplus or refurbished 5X00357G04 stock, test it as a discrete event-input device.

1. Physical identity

Verify the actual label:

5X00357G04

Also check for the common misprint:

5X00357GO4

The last character in the real part number is zero, not the letter O.

2. Visual inspection

Check:

• PCB condition
• Connector pins
• Terminal/interface condition
• Corrosion
• Evidence of overheating
• Previous repair work
• Identification labels

3. Channel test

Exercise all available input channels using an appropriate controlled contact/input simulator.

Do not test only channel 1 and call the module good.

4. Voltage verification

Because supplier documentation identifies the module with 48 VDC contact-input operation, verify the actual cabinet’s field voltage before connecting the replacement.

5. Event verification

Where an Ovation test environment is available, verify that each simulated contact transition is correctly recognized by the system.

Test both transitions where the application requires them:

Normal → Active

Active → Normal

6. Acceptance record

For surplus inventory, record:

Part number → revision → physical condition → channel test → cabinet compatibility → warranty

DCS Center currently lists the part as available and offers its own warranty and repair service, but explicitly notes that it is an independent supplier rather than an authorized Emerson representative.



The Veteran’s Tech Trap Guide

⚠️ PRO TIP — Do not mistake 5X00357G04 for an analog-input module.

Multiple reseller pages incorrectly describe this part as an analog input or other I/O function. The more consistent identification is Ovation Events Input, Contact Module.

⚠️ Verify the field voltage before installation.

Current supplier documentation identifies 48 VDC operation. Do not assume that a generic 24 VDC digital-input test is valid for this module.

⚠️ Watch the part-number character.

5X00357G04 is correct.

5X00357GO4 is a common transcription error. The fourth character after G is the numeral 0.

PRO TIP: If the replacement is being purchased for a live Ovation cabinet, photograph the existing module, its terminal arrangement, and the cabinet wiring drawing. Those three pieces of evidence are more valuable than a generic reseller specification sheet.



Dynamic FAQ

What is Emerson 5X00357G04?

It is an Ovation Events Input Contact Module used to acquire discrete contact events in an Emerson/Westinghouse Ovation DCS.

How many inputs does 5X00357G04 have?

Current product documentation identifies 16 input channels.

What voltage does it use?

Supplier documentation identifies 48 VDC nominal input operation. Confirm the cabinet wiring and installed hardware revision before energizing a replacement.

Is 5X00357G04 an analog input?

No, not according to the stronger available identification. It is listed as an Events Input / Contact Module. Some reseller pages misclassify it, so technical verification is important when preparing a product listing.

Is 5X00357G04 available as New Surplus?

Yes. Current industrial suppliers advertise new, unused, and reconditioned inventory. DCS Center specifically states that it sells new surplus and reconditioned products and includes its own warranty.

For a New Surplus purchase, request an actual-unit photograph, complete part-number marking, revision information, condition statement, test evidence, packaging details, and written warranty.

What should be verified before replacing it?

Verify the exact part number, field voltage, contact-input wiring, cabinet slot, Ovation hardware revision, and event-processing configuration. Do not substitute another digital-input module solely because it has the same number of channels.
