Emerson Westinghouse 5X00497G01 Ovation Logic Module

Description

Product Introduction

The Emerson Westinghouse 5X00497G01 is a high-performance Sub-Tier Interface Module engineered for the Ovation Distributed Control System (DCS). Installed within controller ranks or remote baseplate expansions, it acts as a dedicated hardware conduit, managing low-level protocol exchanges and fast I/O scan routines between process CPUs and local field termination blocks.

Designed to offload continuous backplane traffic management from the main processor, the 5X00497G01 maintains tight, deterministic scan cycles even in dense I/O configurations. Its industrial-grade transceiver circuitry protects backplane logic from external electrical transients, preventing network frame corruption during heavy plant load swings.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:00 AM during a scheduled load ramp, and a power plant’s feedwater pump sub-tier triggers a sudden “Sub-Tier Bus Comm Error.” Half of the analog valve position feedback signals lock up on the operator’s display. The issue isn’t a main CPU failure or a dead field sensor—an aging sub-tier interface card suffered thermal drift on its bus driver ICs, dropping backplane handshake packets.

In our field experience, dedicated interface modules like the 5X00497G01 are crucial for keeping multi-rack cabinet lineups properly synchronized. Primary application scenarios include:

• Power Generation – Primary Boiler Expansion Racks: Manages real-time data transfers between primary controller baseplates and distributed draft fan I/O banks.
• Oil & Gas – Gas Turbine Auxiliaries: Handles rapid data exchanges across local controller racks to ensure low-latency fuel valve feedback.
• Chemical Processing – Multi-Unit Control: Coordinates high-density communication traffic between central processors and remote I/O cabinets.
• Water & Utilities – Main Station Pumping: Maintains reliable backplane communication across extended control cabinet lineups without timing jitter.

Field Case Study: A continuous chemical processing facility in Ohio experienced intermittent sub-tier bus drops that forced nuisance process holds. Emerson quoted an extended factory lead time for a replacement interface module. We verified backplane bus handshakes and signal timing on a surplus 5X00497G01 using our test bench setup, then shipped it overnight. The site team installed the module during a 45-minute maintenance window, immediately clearing all sub-tier comm alarms and restoring stable operation.

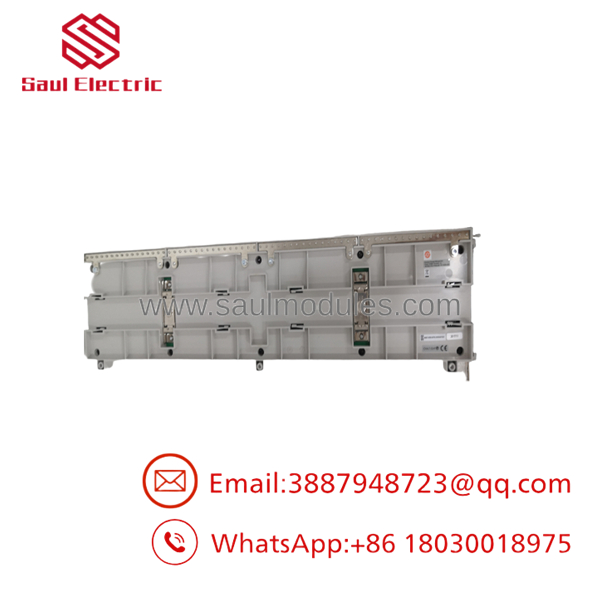

5X00497G01

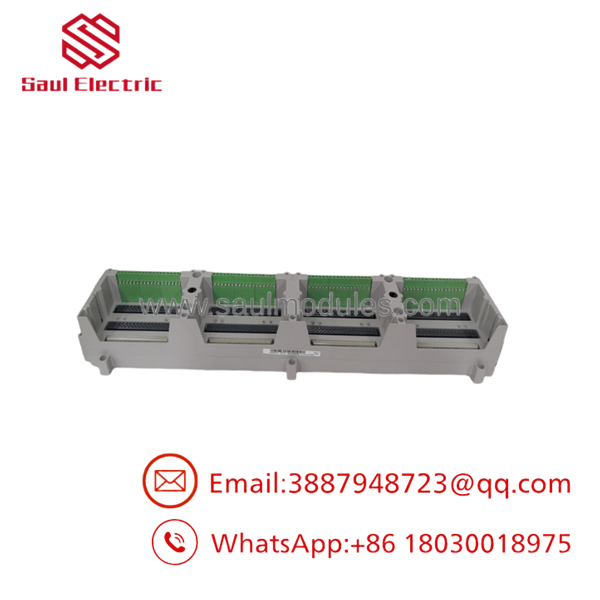

5X00497G01

Transparency SOP: Quality Assurance & Testing

We do not just ship surplus boxes; we physically test every module on actual Emerson Ovation hardware. Our 5-step SOP includes:

1. Inbound Visual Inspection: Inspect PCB traces for thermal darkening, check capacitor ESR values, inspect gold edge connector pins, and verify original OEM serial tags.
2. Backplane Handshake & Power Test: Slot the card into an active Ovation baseplate to verify clean power distribution and immediate bus detection.
3. High-Speed Bus Stress Test: Transmit continuous high-density data traffic across the backplane to ensure zero dropped frames, bit errors, or timing collisions.
4. Thermal Stress Chamber Run: Operate the module under full communication load in an elevated-temperature chamber to detect heat-induced logic errors.
5. ESD-Safe & Padded Packaging: Seal the cleared board in anti-static shielding bags and enclose it in custom high-density foam cradles for transport safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Hardware Jumpers and Address Switches: Mirror every DIP switch and jumper block setting from the old board onto the replacement 5X00497G01 before seating it. A mismatched sub-tier or node address will cause the main controller to ignore the rack or flag bus contention errors.
• ❗ Inspect Baseplate Backplane Pins First: Ovation baseplate connectors are unforgiving. Grab a flashlight and inspect inside the slot before sliding the module in. Inserting the board at an angle can bend the backplane pins and short out the 24V supply rail.
• ⚠️ Check Sub-Tier Extension Cables: If your setup uses interconnecting ribbon or coaxial cables between baseplate ranks, inspect the cable ends for bent pins or strain relief damage. A degraded cable will mimic an interface module failure.
• ❗ Never Force Card Seating: The module should slide smoothly along its guide rails and seat with firm pressure. If you meet hard resistance, stop—you are likely catching an edge on the rear backplane connector.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 5X00497G01 module hot-swappable while the Ovation rack is energized?

A: Mechanically, the Ovation baseplate supports hot insertion. Practically, pulling a sub-tier interface module will sever data flow to all I/O cards on that sub-tier. Always place connected control loops into manual or bypass before pulling the module.

Q: Does this card require software configuration or firmware flashing upon replacement?

A: No separate firmware utility is required for direct hardware replacement. Once seated with the correct hardware address settings, the module syncs its parameters automatically from the Ovation controller upon boot.

Q: What is the primary failure mechanism for these interface modules?

A: Thermal degradation of onboard bus transceiver ICs and drying out of filter capacitors caused by long-term operation in unventilated or crowded control cabinets.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: Factory lead times for legacy Ovation hardware can extend out for months. Our surplus stock is bench-tested on live Ovation chassis, ready to ship today, and priced significantly lower without risking plant uptime.

Q: What warranty coverage comes with this 5X00497G01 module?

A: We back the 5X00497G01 with a full 12-month replacement warranty. If a board fails during bench setup or field operation, we swap it immediately from our ready stock.
