Description
Product Introduction
The Emerson A6210 is a specialized dual-channel monitor card designed for the CSI 6500 Machinery Health Monitor platform (now part of the AMS Machinery Protection suite). Built specifically to interface with piezoelectric accelerometers, the A6210 continuously measures absolute casing vibration on critical rotating assets such as turbines, large pumps, gearboxes, and multi-stage compressors.
Operating in full compliance with API 670 machinery protection standards, the A6210 provides real-time signal conditioning, peak detection, and immediate relay driving for emergency shutdown loops. By isolating higher-frequency mechanical faults like gear mesh friction, bearing race pitting, and blade pass resonance before catastrophic failure occurs, the A6210 serves as an essential front-line protection module for heavy industrial rotating machinery.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | Emerson Process Management (EPRO / CSI) |
| Model Number | A6210 |
| System Compatibility | CSI 6500 / AMS 6500 Machinery Health Monitor Rack |
| Input Channels | 2 Independent Piezoelectric Accelerometer Channels |
| Sensor Types | Standard 2-wire charge/IEPE/ICP accelerometers (100 mV/g typical) |
| Frequency Range | 1 Hz to 20 kHz (\pm3 dB, configuration dependent) |
| Signal Output | Buffered raw sensor outputs (front panel BNC), 4-20mA proportional outputs |
| Alarm Logic | OK, Alert (Warning), and Danger (Trip) setpoints per channel |
| Compliance | API 670 compliant for machinery protection systems |
| Backplane Interface | Dual redundant power supply and system bus connections |
| Operating Temp | -20°C to +65°C |
Application Scenarios & The “Trench” Experience
Picture a combined-cycle power plant during peak grid demand. A boiler feed pump running at 3,600 RPM begins developing a hairline fracture on a high-pressure stage impeller. The resulting high-frequency bearing housing vibration passes undetected by low-frequency eddy current probes. Suddenly, the pump seizes, tripping the entire unit and costing the plant tens of thousands of dollars per hour in ungenerated capacity. Having a functional Emerson A6210 card reading piezo accelerometers detects that high-frequency energy spike days in advance, allowing maintenance to schedule a controlled switch to a backup pump rather than facing an unscheduled trip.
Primary Field Applications:
- Power Generation Turbines: Continuous casing vibration monitoring on steam/gas turbine generator sets and boiler feed pumps.
- Oil & Gas Compressors: Real-time bearing housing acceleration checks on centrifugal gas export compressors and turbo-expanders.
- Chemical & Petrochemical Refineries: Gearbox casing monitoring on high-speed agitators, extruders, and heavy transfer pumps.
- Pulp & Paper Rolling Mills: Vibration monitoring on high-load roller bearings where slow-speed mechanical shocks can wreck roll shafts.

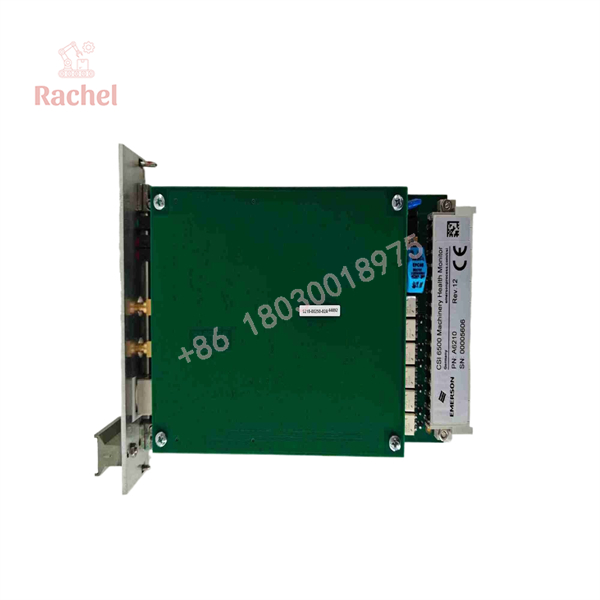

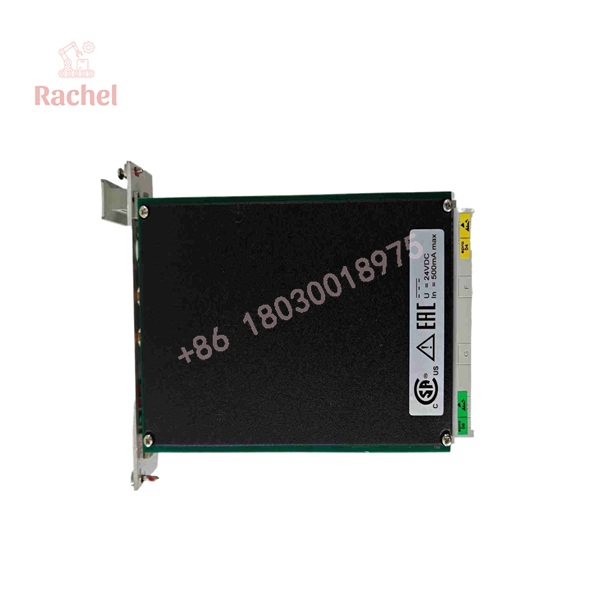

A6210
A6210
Transparency SOP: Quality Assurance & Testing
Vibration monitoring cards directly protect million-dollar rotating assets. We treat the Emerson A6210 with extreme technical diligence using a strict 5-step hardware testing procedure:
- Inbound Visual & Pin Inspection: Full backplane connector check, board-level capacitor inspection, card edge retention clip audit, and conformal coating check.
- Backplane & Power-On Diagnostics: Installing the A6210 into a live CSI 6500 test chassis to confirm low-noise power-up handshakes and system health LED status.
- Calibrated Signal Generator Testing: Feeding precision 10 Hz to 10 kHz sine waveforms at varying millivolt amplitudes into both channels to verify signal conditioning accuracy and raw BNC output fidelity.
- Alarm & Relay Logic Validation: Testing Alert and Danger setpoint trip thresholds, hysteresis delays, and backplane relay coil latching behavior.
- ESD Cleaning & Protective Packaging: Contact cleaning, anti-static shielding wrap, and high-impact protective foam packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Sensor Power Supply Jumpers (IEPE / ICP Power): Standard piezoelectric accelerometers require internal constant-current sensor power (24V DC / 4mA). Before inserting a replacement A6210 into the rack, verify that onboard jumpers or software DIP settings match your specific sensor configuration (powered IEPE vs. unpowered charge sensor). Applying power to an unbuffered sensor will cook the input stage.
- ❗ Backup the Configuration File First: While the CSI 6500 rack maintains system communication, replacing a card means you must upload the specific channel parameter file (sensitivity values like 100 mV/g, filter corner frequencies, trip delays) from the AMS Machinery Manager software. Don’t pull the old card until you’ve saved the existing slot configuration file!
- ⚠️ Front Panel BNC Connector Isolation: Front-panel BNC jacks supply buffered raw signal outputs meant for portable FFT vibration analyzers. Never hook an ungrounded or line-powered oscilloscope to these BNCs without confirming common ground potential—ground loops will introduce artificial 60Hz hum into the card’s protection circuit and trigger a false Alert alarm.
- ❗ DIP Switch Settings for Address Allocation: Pay attention to backplane address jumpers or DIP switches on the card edge. If the replacement A6210’s address doesn’t match the slot index defined in the rack controller, the gateway card will throw a slot hardware mismatch fault.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the Emerson A6210 in a live CSI 6500 rack?
A: Yes, the CSI 6500 rack architecture supports hot-swapping under power. However, to prevent unintended trip signals on downstream safety PLC interlocks, you must bypass or inhibit the channel trip relays in your plant safety system prior to extracting the card.
Q: Does the A6210 card work with proximity (eddy current) displacement probes?
A: No. The A6210 is specifically engineered for high-frequency piezoelectric accelerometers and velocity transducers. For eddy current proximity probes (shaft displacement/position), you require the Emerson A6110 or A6120 displacement monitor cards.
Q: How do I handle sensitivity calibration when installing a replacement card?
A: Connect to the CSI 6500 rack using the AMS Machinery Manager software suite. Input the exact sensor calibration constant (e.g., 101.2 mV/g from the accelerometer’s calibration sheet) into the channel setup properties for the specific slot.
Q: What warranty is supplied with this surplus Emerson module?
A: Every Emerson A6210 module supplied from our inventory comes backed by our comprehensive 12-month full-replacement warranty. If the card fails under standard operational conditions within one year, we replace it directly from stock.
Q: Why buy new surplus or refurbished A6210 cards instead of upgrading the rack?
A: Upgrading a full machinery protection rack requires re-wiring field junction boxes, re-mapping safety PLC interlocks, re-certifying API 670 loops, and scheduling extended plant shutdown windows. Replacing an individual card takes under 15 minutes and maintains full system certification at a fraction of the cost.
