Emerson A6370D Overspeed Protection Monitor

Description

Product Introduction & Engineering Value

A6370D is built for a specific protection task: measuring rotational speed and supporting overspeed protection within an Emerson AMS 6300 SIS installation. It accepts several common speed-sensor technologies and provides the signal-processing interface required by the protection architecture.

For replacement work, the surrounding system matters. The A6370D operates with the A6371 system backplane, and the complete AMS 6300 SIS architecture can use three protection monitors. The A6370D should therefore be matched against the existing backplane, configuration, firmware, and sensor arrangement rather than treated as a generic speed-monitoring card.

Technical Specifications

Emerson’s specification sheet gives the A6370D/D family a 0–20 kHz sensor frequency range, four galvanically separated digital inputs through the backplane, and two isolated current outputs. The published mechanical data identifies the monitor as approximately 71 mm wide and 128 mm high.

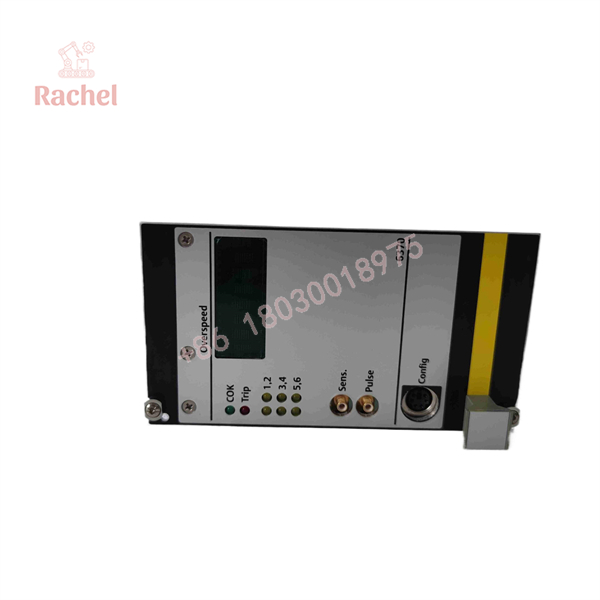

A6370D

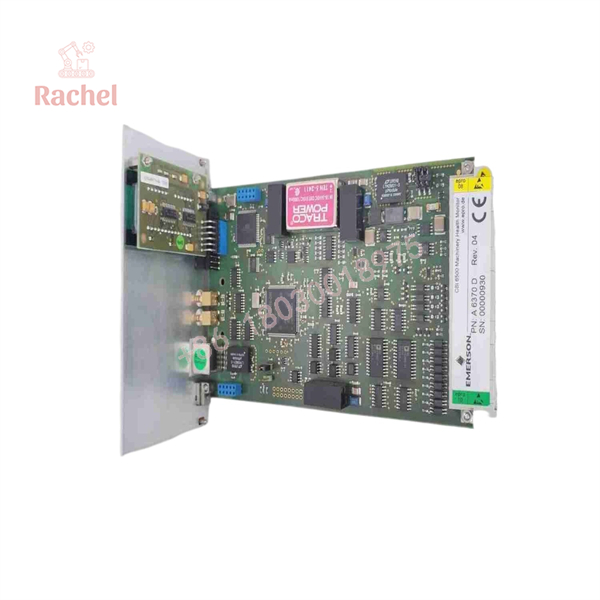

A6370D

Field Application & the “Trench” Experience

A practical replacement scenario is a turbine protection cabinet where one speed-monitoring channel has failed during maintenance testing. The maintenance team has the sensor, wiring, and A6371 backplane already installed, so replacing the entire protection system would create unnecessary configuration and outage work. The A6370D becomes the hardware item that must be verified against the installed channel architecture before commissioning.

The important point is that sensor compatibility is only the first check. Engineers also need to verify the protection logic, firmware revision, backplane configuration, trip arrangement, and the relationship between the replacement monitor and the other A6370 units.

Niche applications

• Steam-turbine overspeed trip monitoring — monitoring shaft-speed signals as part of a dedicated protection system.
• Compressor train speed protection — interfacing compatible speed sensors with an SIS-based overspeed protection arrangement.
• Critical rotating-equipment shutdown systems — replacement of a failed single-channel monitor without changing the installed sensor technology.

The AMS 6300 SIS documentation specifically identifies the system for overspeed protection and shows A6370D monitors used with A6371 backplanes.

Transparency SOP: QA & Testing

For New Surplus or refurbished A6370D inventory, a meaningful inspection should go beyond checking whether the front panel powers up.

1. Identity check — verify the A6370D model marking, revision information, labels, connectors, and physical condition.
2. Visual inspection — examine the PCB, connector pins, display, housing, and signs of corrosion, impact, or unauthorized repair.
3. Functional verification — where the required test equipment and system configuration are available, verify speed-signal acquisition and applicable outputs.
4. Configuration review — compare firmware and configuration requirements with the customer’s installed AMS 6300 SIS.
5. Final documentation — record test results and provide the available serial/model information before shipment.

A particularly important historical compatibility issue is firmware. Emerson documented that firmware V1.04 for A6370D/A6370D/DP was not compatible with earlier V1.02 installations and stated that all modules in the overall CSI 6300 SIS system needed to be updated together to maintain the certified system configuration.

The Veteran’s Tech Trap Guide

⚠️ Firmware is not a minor detail.
Do not assume that an A6370D with the same model number is automatically interchangeable with every installed unit. Emerson specifically documented firmware compatibility requirements for earlier CSI 6300 SIS versions. Check the installed firmware before committing the replacement to a live safety system.

⚠️ Do not confuse A6370D with A6370D/DP.
The /DP version is the Profibus variant. Emerson’s current system documentation lists A6370D for standard configurations and A6370D/DP for Profibus configurations. If the existing system depends on Profibus communication, verify the exact suffix before ordering.

PRO TIP: Check the A6371 backplane before removing the failed monitor. The A6370D is designed as part of the AMS 6300 SIS architecture rather than as a standalone universal speed transmitter.

Dynamic FAQ

1. What is the Emerson A6370D used for?

The A6370D is a one-channel overspeed protection monitor for the Emerson AMS 6300 SIS system. It processes rotational-speed signals from compatible eddy-current, Hall-element, or magnetic/VR sensors.

2. Does the A6370D support magnetic/VR sensors?

Yes. Emerson specifies support for magnetic/VR sensors with an input range of at least 1 Vpp up to 30 V RMS and a frequency range of 0–20 kHz.

3. What backplane does the A6370D use?

The A6370D is used with the A6371 system backplane. Emerson’s AMS 6300 SIS documentation shows complete system configurations using three A6370D monitors and one A6371 backplane.

4. Is A6370D the same as A6370D/DP?

No. A6370D/DP is the Profibus variant. The exact suffix should be confirmed against the existing system documentation and communications architecture before replacement.

5. Can a New Surplus A6370D be used as a direct replacement?

It may be suitable when the model, hardware revision, firmware, system configuration, sensor interface, and backplane arrangement match the installed system. For a safety-related overspeed system, those compatibility checks should be completed before installation rather than assuming model-number equivalence.

6. What warranty is available for an A6370D?

Warranty depends on the supplier and stock condition. For New Surplus units, the supplier should confirm the unit’s condition, serial/model identification, inspection or test procedure, and written warranty terms before purchase. For refurbished units, request the specific test coverage and warranty period rather than relying only on a generic “tested” statement.
