Product Introduction

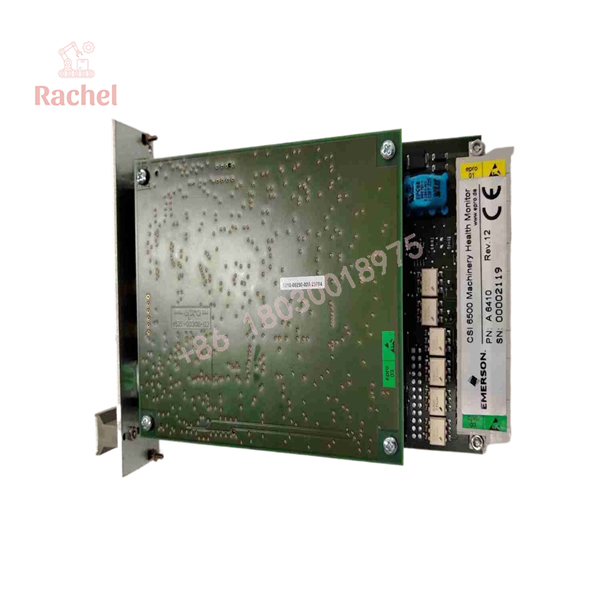

The Emerson A6410 is a high-precision dual-channel shaft vibration monitoring module designed for the CSI 6500 Machinery Health Monitor platform (part of the AMS Machinery Protection suite). Built to interface directly with non-contacting eddy current proximity probe systems, the A6410 continuously measures relative shaft vibration (X-Y orthogonal pairs) inside hydrodynamic fluid-film sleeve bearings.
Operating in strict compliance with API 670 machinery protection standards, the A6410 processes high-speed dynamic displacement signals to detect early-stage mechanical anomalies like oil whirl/whip, shaft unbalance, misalignment, and rotor rub. By delivering real-time peak-to-peak displacement values and driving immediate hardware relay trips, the A6410 serves as a critical defense module for high-value turbomachinery assets.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | Emerson Process Management (EPRO / CSI) |
| Model Number | A6410 |
| System Compatibility | CSI 6500 / AMS 6500 Machinery Health Monitor Rack |
| Input Channels | 2 Independent Relative Shaft Displacement Channels (X/Y pair configuration) |
| Sensor Interface | Standard Eddy Current Proximity Transducer Systems (e.g., 200 mV/mil or 7.87 mV/\mum) |
| Measurement Units | Peak-to-Peak Displacement (\mum or mils) |
| Frequency Range | 1 Hz to 2 kHz (\pm3 dB, API 670 compliant bandwidth) |
| Signal Outputs | Buffered raw signal outputs (front panel BNC), 4-20mA proportional displacement outputs |
| Alarm Logic | OK, Alert (Warning), and Danger (Trip) setpoints per channel |
| Backplane Interface | Dual redundant power supply feeds and system bus interface |
| Operating Temp | -20°C to +65°C |
Application Scenarios & The “Trench” Experience
It’s 4:00 AM on a freezing winter morning. A high-pressure synthesis gas compressor in an ammonia plant begins experiencing severe oil whirl inside its drive-end sleeve bearing. The fluid film ruptures, causing the shaft to orbit violently within the clearance ring. Without immediate trip logic, the rotor will make metal-to-metal contact with the bearing babbit, causing catastrophic rotor locking and millions in overhaul costs. The Emerson A6410 reads the proximity probe displacement within milliseconds, triggering the trip loop before the shaft contacts the shell.
Primary Field Applications:
- Steam & Gas Turbines: Continuous monitoring of radial relative shaft displacement and orbit tracking across hydrodynamic bearings.
- Centrifugal Gas Compressors: Real-time X-Y displacement monitoring to guard against aerodynamic instability, unbalance, and seal rubs.
- Boiler Feed Pumps & Heavy Blowers: Casing-to-shaft clearance and dynamic vibration measurement on high-energy fluid transfer pumps.
- Large Industrial Motors & Generators: Shaft dynamic motion monitoring in heavy rolling mill drives and power station alternators.
A6410
Transparency SOP: Quality Assurance & Testing
Shaft protection cards guard the core mechanical integrity of turbo-machinery. We subject every Emerson A6410 module to a strict 5-step hardware qualification procedure before adding it to shippable inventory:
- Inbound Mechanical & Electrical Audit: Physical inspection of backplane connectors, edge retention latches, board capacitors, and conformal coating integrity.
- Rack Insertion & Bus Handshake Test: Installing the card into a live CSI 6500 chassis to verify internal power rail stability, system watchdog health, and communication handshakes.
- Calibrated Signal Generator Simulation: Feeding precision AC sine waves modulated over DC gap bias voltages into both channels to verify linearity, V_p-p accuracy, and gap voltage reporting.
- Alarm Setpoint & Trip Relay Validation: Testing Alert and Danger trip thresholds, latching behavior, trip delay timing, and backplane relay coil drive logic.
- ESD Cleaning & Protective Packaging: Contact cleaning, anti-static vacuum wrapping, and high-density foam shipping boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify DC Gap Voltage Before Adjusting Alarms: An eddy current probe measures both dynamic AC vibration (V_p-p) and static DC gap voltage (distance from shaft). If your DC gap voltage drifts out of the transducer linear range (typically -2V DC to -18V DC), the A6410 will throw a “NOT OK” channel fault, inhibiting protection or causing false trips. Always check gap voltage on the front panel BNC or software diagnostics first!
- ❗ Backup Channel Setup Properties in AMS: When replacing an A6410 module, you must upload the channel configuration file (probe sensitivity e.g., 200 mV/mil, filter bounds, trip delay timers) from the AMS Machinery Manager software. Replacing a card without uploading the correct setup file leaves the card in default factory mode.
- ⚠️ Watch Out for X-Y Channel Cross-Talk: Ensure the proximity probe extension cables are properly shielded and grounded at the rack end only. Floating shields or ungrounded junction boxes invite 60Hz line noise, which the A6410 reads as artificial peak-to-peak shaft displacement.
- ❗ Check Sensor Sensitivity Jumper/Software Settings: Ensure the channel setup matches the specific proximity probe installed on the machine (5 mm, 8 mm, or 11 mm probes). Applying an 8 mm probe profile (200 mV/mil) to an 11 mm probe (100 mV/mil) will result in a 50% error in calculated vibration amplitude.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the Emerson A6410 in a live CSI 6500 chassis?
A: Yes, the CSI 6500 architecture allows hot-swapping under power. However, because this card drives safety trip logic in the plant safety PLC/ESD system, you must inhibit or bypass downstream relay trip channels prior to extracting the module.
Q: What is the main difference between the Emerson A6410 and the A6210?
A: The A6410 is designed for relative shaft vibration using proximity probes measuring fluid-film bearing shaft displacement. The A6210 is designed for casing vibration using piezoelectric accelerometers on rolling element bearings or outer machine housings.
Q: How do I extract raw X-Y orbit data for diagnostic analysis from the A6410?
A: Connect a portable vibration analyzer or oscilloscope directly to the front-panel BNC buffered outputs. These jacks supply the raw, unconditioned AC+DC signal straight from the proximity probe drivers without affecting the card’s internal protection loops.
Q: What warranty is supplied with this surplus Emerson module?
A: Every Emerson A6410 card supplied from our inventory comes backed by a comprehensive 12-month full-replacement warranty. If the unit fails under normal operating conditions within one year, we replace it directly from stock.
Q: Why buy new surplus or refurbished A6410 cards instead of replacing the entire rack system?
A: Replacing an entire protection rack requires extended plant outages, re-wiring field junction boxes, re-mapping ESD interlocks, and re-certifying API 670 loops. Dropping in a direct replacement A6410 card takes 15 minutes and maintains existing system certifications at a fraction of the cost.
