Description
Product Introduction & Engineering Value
The A6500-RC is not a measurement card. Its job begins after the AMS 6500 measurement modules have generated protection status signals. The relay card collects up to 66 digital inputs, processes them through programmable logic, and provides 16 SPDT outputs for downstream protection or shutdown interfaces.
For replacement work, the rack configuration is critical. The A6500-RC is intended for the A6500-SR, A6500-RR, or A6500-FR system racks. It is also configurable through the AMS 6500 communication architecture, so a replacement should be checked against the installed rack, firmware/configuration, and relay logic before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| System | AMS 6500 ATG |
| Card Type | System Relay Card |
| Digital Inputs | 66 |
| Input Isolation | Galvanically separated |
| Logic Input Low | 0–3 V |
| Logic Input High | 13–32 V |
| Rated Input Current | 1 mA |
| Relay Outputs | 16 |
| Relay Type | SPDT |
| Maximum Contact Capacity | 32 VDC / 48 VAC |
| Rated Relay Current | 2 A |
| Time Delay | 0–1000 seconds |
| Power Consumption | Maximum 6 W |
| Operating Temperature | -20°C to +70°C with forced cooling; -20°C to +55°C without forced cooling |
| Relative Humidity | 5–95%, non-condensing |
| Mechanical Format | 3U, 10 HP, 100 × 160 mm Euro card |
The current Emerson specification identifies 66 digital inputs and 16 SPDT relay outputs. Relay contacts support up to 32 VDC/48 VAC, with application-specific load ratings including 2 A for AC1 and DC1 conditions.

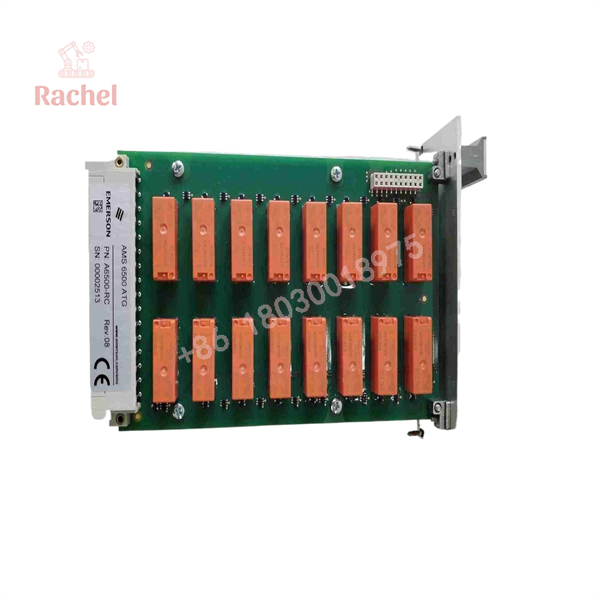

A6500-RC

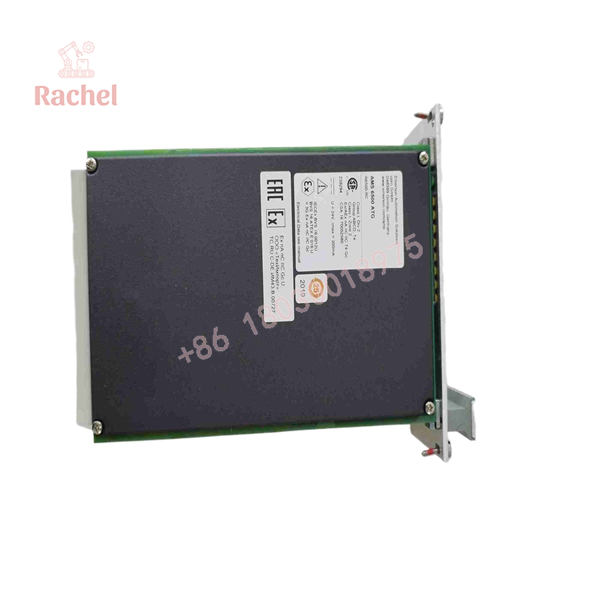

A6500-RC
Field Application & the “Trench” Experience
Consider a compressor train where vibration and process-monitoring cards are already installed in an AMS 6500 rack. During a protection-system maintenance check, one relay channel fails to provide the expected shutdown interface. Replacing the A6500-RC is not simply a matter of moving a card and reconnecting wires.
The technician first needs to confirm which measurement-card conditions feed the affected logic network. The A6500-RC can combine individual status inputs using Boolean operations and apply configured delays before energizing the corresponding relay. A replacement card therefore needs its logic configuration restored and verified, not merely its hardware installed.
Specific application scenarios
- Steam turbine generator protection — routing Alert/Danger conditions into plant shutdown or annunciation circuits.
- Pipeline turbo-compressor protection — combining multiple machinery-monitoring status conditions into defined relay actions.
- Hydro turbine protection — implementing relay-based protection logic between AMS monitoring channels and external control/protection equipment.
- Boiler-feed-pump machinery monitoring — providing discrete protection outputs to downstream control or shutdown interfaces.
Emerson identifies steam, gas, compressor, and hydro turbomachinery among the intended applications for the A6500-RC/AMS 6500 protection architecture.
Transparency SOP: QA & Testing
For New Surplus or refurbished A6500-RC inventory, the inspection should focus on both the physical relay card and its ability to operate correctly within the intended AMS 6500 architecture.
Inspection checklist
- Verify the exact model marking and identification label.
- Inspect the Eurocard PCB, front panel, connectors, and relay-board assembly.
- Check the green system-status LED and individual relay-status indicators.
- Inspect relay contacts and terminal interfaces for corrosion, contamination, or mechanical damage.
- Verify the card against the intended A6500-xR rack configuration.
- Where test equipment and an appropriate AMS 6500 test environment are available, verify digital inputs, relay switching, and configured logic behavior.
- Record available serial number, revision information, and test results.
Emerson specifies the A6500-RC as a hot-swappable module and identifies it as an API 670-compliant component of the AMS 6500 machinery protection architecture.
The Veteran’s Tech Trap Guide
⚠️ Do not treat every relay as a simple dry-contact replacement.
The A6500-RC’s 16 outputs are SPDT contacts, but the actual permissible load depends on the electrical application. Emerson lists different limits for AC1, DC1, DC-13, and AC-15 service. Check the actual downstream circuit before connecting a replacement card.
⚠️ The logic configuration matters.
The card can combine its digital inputs through programmable logic. A physically identical replacement with incorrect configuration can produce different relay behavior. Configuration should therefore be backed up or documented before removing the original card.
PRO TIP: Check the rack before ordering. The A6500-RC is designed for the A6500-xR rack family, including the -SR, -RR, and -FR. It is not a universal 16-relay I/O module that can be installed into an arbitrary Eurocard rack.
⚠️ Do not confuse the relay card with the communication card.
The A6500-CC handles system communication functions, while the A6500-RC is responsible for relay logic and outputs. Emerson’s documentation states that a communication card is generally required for configuration of the Relay Card.
Dynamic FAQ
1. What does the Emerson A6500-RC do?
It is the 16-channel System Relay Card for the AMS 6500 ATG. It accepts digital protection/status signals, applies configurable logic and time delays, and drives 16 SPDT relay outputs.
2. How many inputs and outputs does the A6500-RC have?
The card provides 66 digital inputs and 16 relay outputs. The inputs are galvanically separated, while the relay outputs are SPDT contacts.
3. Which rack accepts the A6500-RC?
The A6500-RC is designed for the -SR, -RR, and -FR system racks.
4. Does the A6500-RC have programmable logic?
Yes. The relay card is microprocessor-controlled and supports configurable logical combinations of binary signals. Emerson documentation describes Boolean logic and configurable time delays for relay operation.
5. Is the A6500-RC hot-swappable?
Emerson’s product specification identifies the A6500-RC as a hot-swappable module. Actual removal or insertion should still follow the site’s machinery-protection maintenance procedure and applicable safety controls.
6. Is New Surplus A6500-RC the same as factory-new stock?
Not necessarily. New Surplus normally refers to unused inventory outside the manufacturer’s current distribution channel or original sales cycle. Before purchase, request the exact model/serial identification, physical condition, inspection or test evidence, and written warranty terms. For refurbished units, request the specific functional test scope and warranty period.
7. Can the A6500-RC be used as a generic 16-channel relay module?
No. Its intended function is within the AMS 6500 ATG machinery protection system, where the backplane, measurement cards, communication architecture, configuration, and protection logic form the complete system.
