Emerson A6500-UM AMS Protection Universal Monitor

Description

Product Introduction

The Emerson A6500-UM (Universal Monitor) is the core processing card of the AMS 6500 ATG asset protection system. Designed as a flexible, software-defined replacement for single-function legacy cards, the A6500-UM handles a complete spectrum of rotating machinery measurements—including relative shaft vibration (X-Y displacement), absolute casing vibration (accelerometers/velocity sensors), thrust position, and speed/keyphasor inputs—on a single, unified hardware platform.

Compliant with API 670 machinery protection standards and certified for SIL 2 safety instrumented systems, the A6500-UM eliminates the need to stock multiple dedicated monitor cards. Its onboard high-speed digital signal processor (DSP) delivers real-time limit monitoring, rapid relay trip outputs, and seamless dual-bus redundancy, protecting high-value turbines, compressors, and large drives from sudden mechanical breakdown.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical gas turbine overhaul during a plant turnaround. Mid-commissioning, the instrumentation crew realizes a legacy rack card slot originally assigned to casing vibration needs to be converted to monitor axial thrust position due to a last-minute mechanical modification. With legacy single-purpose cards, you’d be stuck waiting three weeks for a specific replacement module while the plant burns $50,000 a day in lost production. With the Emerson A6500-UM, you don’t swap hardware—you simply reassign the channel personality in the configuration software and keep the startup on schedule.

Primary Field Applications:

• Combined Steam & Gas Turbines: Dynamic measurement of shaft displacement, axial thrust positioning, and casing acceleration within a unified protection rack.
• Multi-Stage Centrifugal Compressors: Real-time X-Y shaft orbit and bearing housing vibration monitoring to catch aerodynamic instabilities and unbalance.
• Large Gearboxes & Extruders: High-frequency accelerometry combined with shaft vibration profiling to identify gear tooth micro-pitting and bearing raceway faults.
• Safety Instrumented Systems (SIS): Serving as a certified SIL 2 primary trip input module for high-reliability emergency shutdown (ESD) loops.

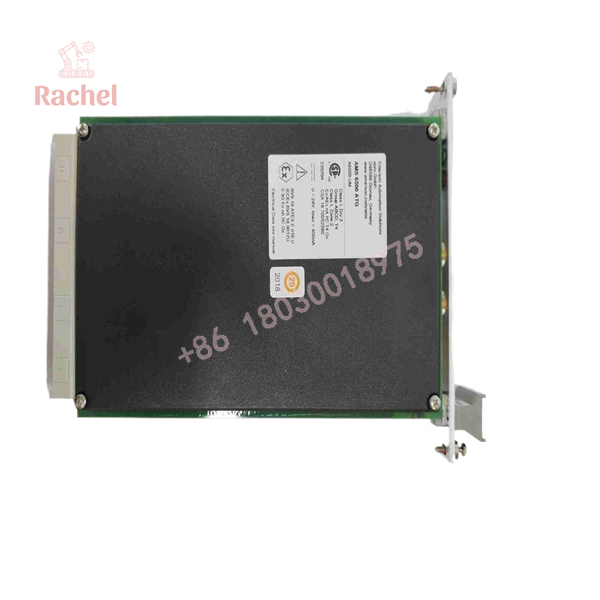

A6500-UM

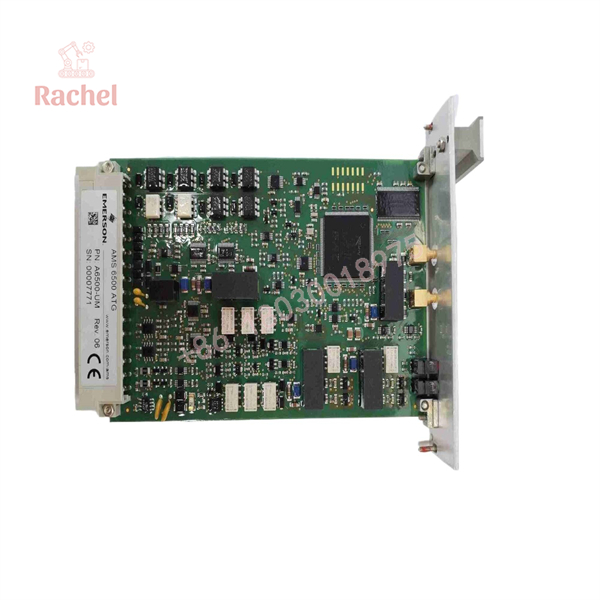

A6500-UM

Transparency SOP: Quality Assurance & Testing

Universal protection modules handle multi-faceted safety logic. We subject every Emerson A6500-UM module to a rigorous 5-step hardware qualification SOP before it enters shippable inventory:

1. Inbound Mechanical & Conformal Inspection: Visual inspection of backplane edge connectors, onboard capacitors, shield ground planes, and industrial conformal coating integrity.
2. Backplane Bus & Firmware Diagnostic Test: Inserting the module into an AMS 6500 ATG test chassis to verify power-up handshakes, dual redundant bus communication, and FPGA firmware health.
3. Multi-Mode Input Calibration: Testing channel performance across various input profiles (proximity gap voltage, piezoelectric AC acceleration, DC thrust voltage) using calibrated signal generators.
4. Relay Interlock & Alarm Logic Audit: Testing Alert (Warning) and Danger (Trip) setpoint thresholds, software trip delays, and backplane relay coil latching behavior.
5. ESD Cleaning & Protective Packaging: Contact cleaning, anti-static vacuum wrapping, and high-density foam shipping containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Configure the Channel “Personality” Before Wiring: Because the A6500-UM is universal, inserting a blank or default-configured card into a live field slot can send incorrect excitation voltages to connected sensors (e.g., sending -24V DC proximity power to an IEPE accelerometer). Always flash the specific channel configuration profile using AMS 6500 ATG Configurator software before connecting field wiring or closing output interlocks!
• ❗ Verify Firmware Compatibility Across the Rack: The A6500-UM requires matching firmware revisions with the rack’s A6500-COM communication gateway card and A6500-RM relay modules. Mismatched firmware revs will cause silent bus communication faults or drop the module into a hardware lockout state.
• ⚠️ Do Not Leave Unused Channels Floating: If only one channel on an A6500-UM card is being utilized, software-inhibit or ground the unused channel input in the card setup. Leaving an unassigned channel floating can pick up stray EMI from adjacent drives, causing phantom “Not OK” channel alarms.
• ❗ Mind the Dual-Bus Backplane Jumpers: Ensure the rack backplane termination jumpers match your redundancy configuration (single vs. dual redundant power supplies and comm buses). Misconfigured backplane jumpers will compromise SIL 2 system fault tolerance.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the Emerson A6500-UM in a live AMS 6500 ATG rack?

A: Yes, the module supports hot-swapping under power. However, because it drives safety trip logic, you must manually inhibit or bypass associated downstream relays in the safety PLC/ESD system prior to pulling the module.

Q: What is the main difference between the legacy CSI 6500 cards (A6110, A6210, A6410) and the A6500-UM?

A: Legacy cards were dedicated, single-function hardware modules (e.g., A6410 only measured shaft vibration, A6210 only casing vibration). The A6500-UM is a universal card where channel function (shaft, casing, position, or speed) is selected via software, vastly simplifying spare parts inventory.

Q: Is the A6500-UM backward compatible with older CSI 6500 / EPRO racks?

A: No. The A6500-UM belongs to the newer AMS 6500 ATG architecture, which uses a different backplane bus and physical form factor than legacy CSI 6500 / EPRO 3U racks.

Q: What warranty is provided with this surplus Emerson module?

A: Every Emerson A6500-UM card supplied from our inventory comes backed by a comprehensive 12-month full-replacement warranty. If the unit fails under standard operating conditions within one year, we replace it directly from stock.

Q: Why buy new surplus or refurbished A6500-UM cards instead of sourcing direct from the OEM?

A: OEM factory lead times for specialized machinery protection hardware can stretch into many months. We stock fully tested, verified surplus and refurbished modules ready for immediate, same-day shipment to resolve emergency outages without delay.
