Emerson CE4005S2B4 DeltaV Analog Output Hardware

Description

Product Introduction

The Emerson CE4005S2B4 is marketed by independent suppliers as a DeltaV automation spare. However, Emerson’s published M-Series Traditional I/O catalog does not confirm this exact designation. The related CE4005S2 family includes termination blocks for analog output applications, but that alone does not establish the function of the B4 variant.

For maintenance and procurement teams, the priority is confirming the actual component before treating it as a replacement part. Request a photograph of the nameplate and connector layout, then compare the complete catalog number with the Emerson hardware documentation.

Key Technical Specifications

Emerson’s published catalog lists these related variants:

• CE4005S2B1: Standard I/O termination block for an 8-channel, 4–20 mA HART analog output card.
• CE4005S2B2: Fused I/O termination block for the related analog output configuration.
• CE4005S2B3: 16-pin mass I/O termination block for the related analog output configuration.

The cited catalog does not establish a corresponding CE4005S2B4 entry. Do not transfer the specifications of these neighboring models to the requested part without confirmation.

Application Scenarios & the “Trench” Experience

A control-system outage can become more expensive when the replacement part is misidentified. A technician may receive a component with a similar catalog number, discover that its connector or terminal arrangement differs, and lose valuable hours while the plant remains down.

Until the CE4005S2B4 designation is verified, the following are potential application areas for the related DeltaV analog output hardware, not confirmed applications for this exact part:

• Chemical processing — Control valve positioning — Compatible analog output hardware can provide control signals to valve positioners.
• Oil and gas — Actuator command signals — Properly configured output channels can interface with compatible field devices.
• Power generation — Auxiliary process control — Analog outputs can support modulation of compatible process equipment.
• Water treatment — Pump speed references — Suitable analog output channels can provide reference signals to compatible drives.
• Batch manufacturing — Process setpoint control — Analog output interfaces can command compatible equipment where the control design requires continuous signals.

Field replacement scenario

A plant reports a failed analog output channel controlling a process valve. The maintenance team identifies a CE4005S2B4 in a supplier’s inventory, but the catalog number does not match the documented termination-block variants.

Rather than ordering on assumption, the engineer requests the nameplate photograph and confirms the installed output card, carrier, terminal configuration, and wiring diagram. If the seller cannot establish the part’s identity, the engineer sources a documented compatible variant instead.

The lesson: A plausible product description is not proof of compatibility. Confirm the hardware before committing to the replacement.

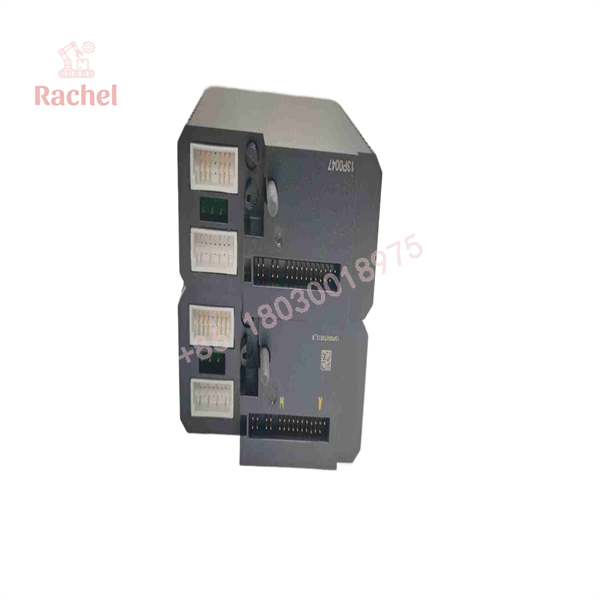

CE4005S2B4

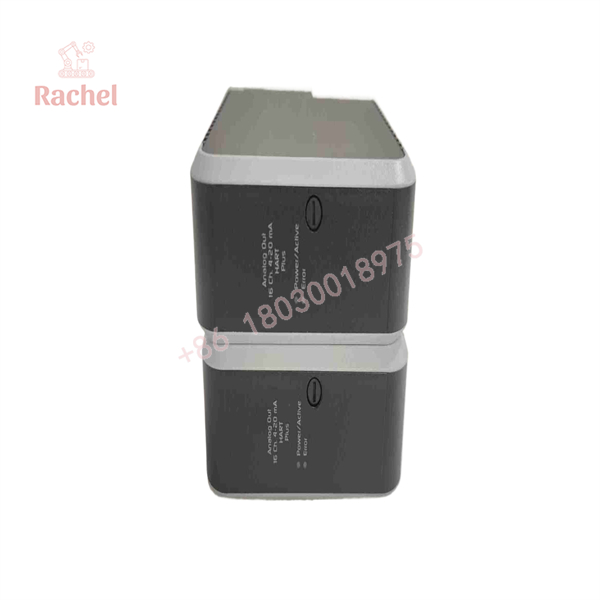

CE4005S2B4

Transparency SOP: Quality Assurance & Testing

For this model, testing must begin with identification. No electrical test can compensate for uncertainty about what the component actually is.

1. Inbound Inspection

• Photograph the complete label, catalog number, revision, and serial or date codes.
• Inspect connectors, terminal blocks, mounting points, and signs of damage.
• Record the item’s actual condition and any repair history provided.

2. Hardware Identification

• Compare the label and physical construction with an applicable Emerson document.
• Confirm whether the unit is a termination block, I/O card, or another assembly.
• Resolve any CE/VE prefix discrepancy before accepting the item.

3. Electrical Checks

• Perform continuity and connection checks only after the component has been identified.
• Use the test method and acceptance limits specified by the applicable documentation.
• Do not apply insulation-resistance test voltages to electronic assemblies unless the OEM procedure explicitly permits it.

4. Compatibility Verification

• Identify the associated I/O card and carrier.
• Verify channel assignments, field wiring, and system configuration.
• Use a compatible test setup if functional testing is required.

5. Final QC and Packaging

• Document the inspection results and unresolved limitations.
• Protect terminals and connectors against impact and contamination.
• Include the actual condition, test report, warranty terms, and return policy.

Purchasing requirement: Do not accept a claim of full functional testing without a test report identifying the exact component and test setup.

The Veteran’s Tech Trap Guide

⚠️ Trap 1: Treating B4 as a Confirmed Catalog Variant

The published catalog identifies B1, B2, and B3 variants for the relevant analog output termination-block family. It does not establish B4 in that list. Ask the seller to provide the original product label and supporting OEM documentation.

❗ Trap 2: Confusing CE and VE Prefixes

Related supplier listings reference VE4005S2B4, but that does not prove it is interchangeable with CE4005S2B4. Confirm the hardware generation, carrier interface, and approved compatibility before substituting either designation.

⚠️ Trap 3: Assuming It Is an Analog Output Card

A termination block and an I/O card perform different jobs. Verify which component is actually required and whether the supplier’s quotation includes the card, termination block, or both.

❗ Trap 4: Installing Before Checking the Wiring Map

Photograph the existing terminal layout and confirm every conductor against the approved drawing. Do not energize field wiring based solely on a similar-looking component or a seller’s generic product description.

Frequently Asked Questions

Q1. What is the Emerson CE4005S2B4?

Its exact function remains unverified in the available Emerson catalog. The related CE4005S2B1, CE4005S2B2, and CE4005S2B3 variants are documented analog output termination blocks. The B4 designation requires separate confirmation.

Q2. Is CE4005S2B4 the same as VE4005S2B4?

That has not been established. A supplier listing for VE4005S2B4 does not prove that the CE-prefixed designation is equivalent. Request official compatibility documentation before purchasing a substitute.

Q3. Can I use it with an 8-channel 4–20 mA HART analog output card?

Do not make that assumption based on the model prefix. Emerson documents specific termination-block variants for this output-card family, but the exact B4 configuration is not confirmed in the cited catalog.

Q4. Is it hot-swappable?

The exact hardware has not been identified sufficiently to confirm whether live replacement is supported. Follow the applicable Emerson installation procedure and site isolation requirements. Do not remove or insert the component under power unless the exact hardware documentation explicitly permits it.

Q5. Does it require firmware configuration?

That depends on the actual component. A termination block generally provides physical field-wiring connections, whereas the associated I/O card and DeltaV configuration determine signal processing and channel behavior. Confirm the component identity before applying configuration instructions.

Q6. Does it come with a 12-month warranty?

Warranty coverage depends on the seller and condition. Obtain written confirmation of the warranty period, exclusions, and return procedure. Do not assume an independent supplier’s warranty is an Emerson factory warranty.

Q7. Why is the part cheaper through a surplus supplier?

Surplus pricing may reflect inventory age, condition, testing scope, and warranty coverage. A lower price is not proof of counterfeit hardware, but it is no substitute for traceable identification and documented compatibility.
