Description
Core Product Summary
The Emerson DXA-205 is an industrial positioning servo drive and amplifier unit engineered for precise motion control applications. Designed to interface within specialized automation and valve positioning architectures, the module provides closed-loop control, accurate signal processing, and responsive drive output to compatible servo motors.
The unit manages feedback inputs—such as those from LVDT position transducers—enabling calibrated stroke tracking, configuration routines, and fine adjustments for industrial actuators and mechanical positioning assemblies. Its compact configuration allows seamless integration into industrial control cabinets and dedicated servo racks.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Emerson (Motion Control / Control Techniques) |
| Model / Order Code | DXA-205 |
| Product Type | Positioning Servo Drive / Amplifier Module |
| Nominal Operating Voltage | 120 VAC (50/60 Hz) |
| Application Compatibility | Designed for pairing with matching Emerson servo motors (e.g., DXM series) and control cabling |
| Feedback Processing | Supports sensor calibration parameters (such as LVDT feedback loops and analog-to-digital scaling) |
Detailed Product Overview
The Emerson DXA-205 serves as a core servo amplifier and controller module within precision motion or valve-actuation loops. In demanding industrial settings, such units are responsible for interpreting control commands, driving motor current, and maintaining precise physical positioning under varying loads.
The unit incorporates calibration routines designed to map mechanical travel against electrical feedback signals (such as zero and full-stroke calibration ranges). This ensures that connected actuators or servo mechanisms maintain stable alignment, linear response, and immunity to minor thermal expansion shifts during continuous operation. Proper wiring integrity—particularly regarding feedback and motor power pairs—is essential during setup to prevent opposition “fighting” between channels and to guarantee smooth directional movement.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Matching Actuator / Motor | Compatible Emerson Motion Control servo motors (e.g., DXM series) | Requires proper matching of motor phase and feedback lines. |
| Cabling Architecture | Shielded Emerson control and power harness cables (TDT series or equivalent) | Proper shielding minimizes electrical noise coupling in industrial cabinets. |
| Power Input | 120 VAC, 50/60 Hz supply source | Verify local transformer or cabinet distribution voltage prior to powering on. |

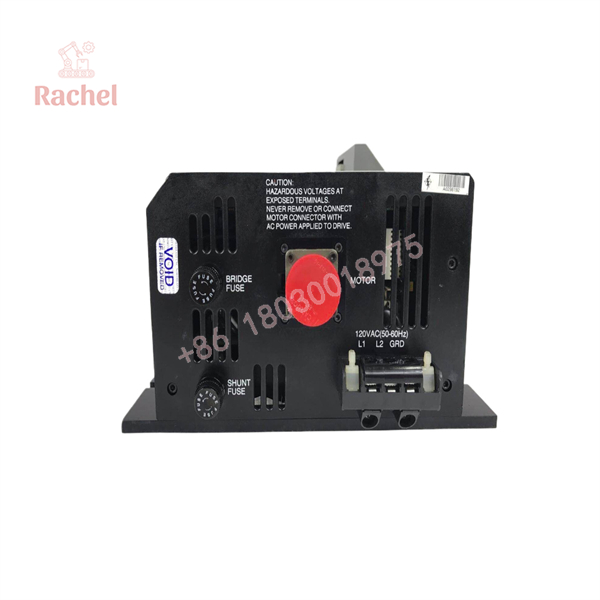

DXA-205

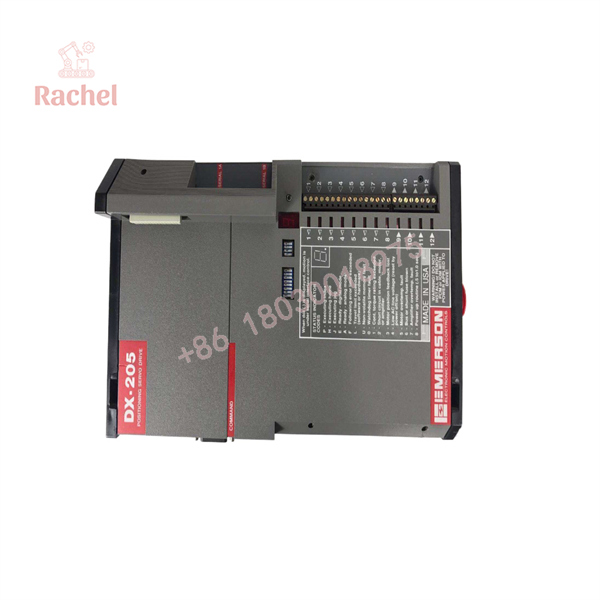

DXA-205
Dimensions, Mounting & Connection Notes
- Enclosure Mounting: Designed for secure installation within industrial control panels, servo subracks, or dedicated automation enclosures.
- Wiring & Terminals: Utilizes secure physical connection points for AC supply lines, control signals, motor power leads, and feedback sensors.
- Signal Segregation: Route sensitive feedback and LVDT/resolver lines away from high-voltage power cables and motor drive leads to avoid electromagnetic interference (EMI).
FAQ
What is the Emerson DXA-205?
The Emerson DXA-205 is an industrial positioning servo drive and amplifier unit used to control precision motion and actuator systems.
What power supply does the DXA-205 require?
The unit is designed to operate on a 120 VAC (50/60 Hz) power input.
What type of feedback loop does the module support?
The unit supports precise positioning control loops, including processing feedback signals from devices like LVDT position transducers for valve or mechanical stroke calibration.
What precautions should be taken when wiring the servo connections?
Servo and feedback wires must be connected and phased correctly to prevent opposition (“fighting”) between signal pairs; manufacturer-specified cabling harnesses are recommended.
