Description
Product Introduction
The Emerson Epro UES815S-24A is a compact eddy current displacement signal transmitter designed for critical turbomachinery protection and predictive maintenance. Functioning as an integral bridge between field eddy current probes (such as PR6422, PR6423, or PR6424 series) and higher-level control hardware, it conditions micro-displacement measurements directly at the machine housing.
Operating on a standard 24 V DC power loop, the UES815S-24A converts non-contact distance measurements into linear proportional output signals—detecting micro-inch changes in shaft axial position, radial vibration, and thermal expansion on high-speed rotating assets. Its rugged metal casing and armored cable leads ensure continuous signal transmission even when exposed to severe oil mist, high temperatures, and intense mechanical vibration on turbine decks.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Automation Solutions / Epro |
| Product Line | MMS 6000 Machinery Protection System / Proximity Line |
| Model Code | UES815S-24A |
| Measurement Principle | Non-Contact Eddy Current Signal Conditioning |
| Input Compatibility | Epro / Emerson PR series proximity probes (5mm / 8mm tip diameters) |
| Power Supply | +24 V DC nominal (18–30 V DC operating range) |
| Primary Output | Linear proportional Voltage / 4–20 mA current loop |
| Frequency Response | DC to 10 kHz (-3 dB point) for high-speed dynamic tracking |
| Housing Construction | Cast aluminum with heavy-duty mounting flanges |
| Protection Rating | IP65 weather and oil-resistant seal |
Application Scenarios & The “Trench” Experience
A high-pressure boiler feed pump at a power station begins suffering subtle thrust bearing wear. Standard casing-mounted accelerometers fail to catch the failure early because high-frequency gear noise drowns out the low-frequency shaft shift. An Emerson Epro UES815S-24A transmitter connected directly to a target shaft eddy probe measures axial position changes down to fractions of a millimeter, triggering a warning interlock before the impeller rubs against the casing and causes catastrophic pump lockup.
- Steam & Gas Turbines: Continuous real-time monitoring of shaft radial vibration and axial (thrust) position.
- Large Centrifugal Compressors: Tracks shaft displacement, eccentricity, and phase reference (Keyphasor) marks.
- Hydroelectric Generators: Monitors upper and lower guide bearing clearances and shaft runout.
- Heavy Industrial Fans & Blowers: Provides early-warning vibration monitoring for large induced-draft (ID) plant fans.

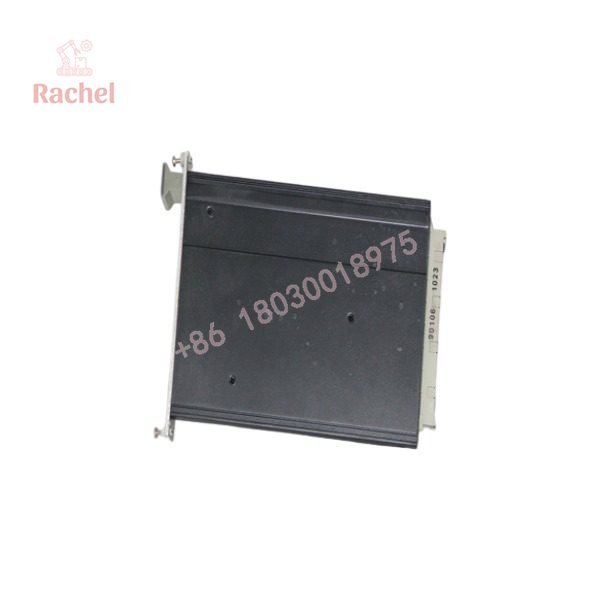

UES815S-24A

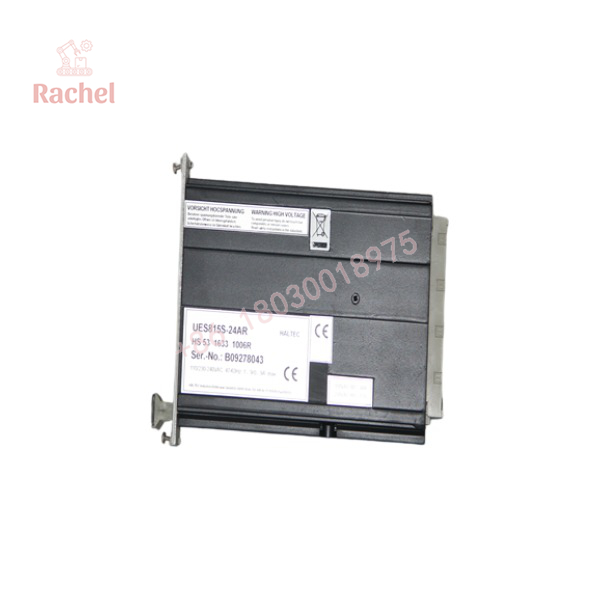

UES815S-24A
Transparency SOP: Quality Assurance & Testing
- Inbound Mechanical Audit: Inspect the housing body, check thread integrity on the armored cable fittings, and verify serial plate markings.
- Power Supply & Bench Check: Apply 24 V DC supply power; verify baseline current draw and check internal regulated power rails.
- Linearity & Gap Sweep Test: Mount a matched probe in an optical micrometer fixture; sweep distance gaps against a target plate to verify voltage output linearity across the full calibrated range.
- Frequency & Dynamic Response Test: Inject simulated high-frequency target motion; verify output signal bandwidth matches OEM spec up to 10 kHz without phase degradation.
- ESD & Protective Packaging: Wrap in anti-static shielding, cushion inside custom foam blocks, and package in heavy-duty export cartons.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match Probe System Cable Length: Proximity systems are tuned to specific overall cable electrical lengths (typically 5 meters or 9 meters total). Never shorten, splice, or extend the coaxial cable between the probe and the UES815S-24A transmitter—doing so will ruin linearity and corrupt calibration measurements.
- ❗ Verify Target Material Calibration: Eddy current transmitters are factory-calibrated for specific shaft metals (usually 4140 steel). If your shaft is stainless steel or a specialty alloy, you must recalibrate the zero offset and scale factor on the transmitter to avoid significant measurement error.
- ⚠️ Isolate Armor Grounds: Ensure the armored sheath of the probe cable is grounded at one end only (preferably at the transmitter body). Dual-grounding creates ground loops that corrupt small mV/mil vibration signals with 60 Hz electrical noise.
- ❗ Maintain Correct Mechanical Gap: During probe installation, set the static mechanical gap voltage (typically -10V DC at mid-scale) before securing the probe jam nuts to prevent bottoming out against the shaft during operation.
Frequently Asked Questions (FAQ)
Q: Can the UES815S-24A connect directly to a standard PLC 4-20mA input card?
A: Yes, provided the specific variant includes the integrated 4-20mA driver option. Alternatively, raw voltage outputs can be routed into dedicated machinery protection monitors (like the MMS 6000 series) or local signal converters.
Q: What is the main difference between an accelerometer and an eddy current transmitter like the UES815S-24A?
A: Accelerometers measure high-frequency housing vibration, while eddy current transmitters measure actual non-contact shaft displacement relative to the bearing housing, making them superior for fluid-film bearing machines.
Q: Is the unit resistant to lubricating oil and moisture?
A: Yes. The UES815S-24A features an IP65 cast aluminum housing designed specifically for harsh machine deck environments with oil spray and moisture.
Q: What happens if the probe cable breaks during operation?
A: The transmitter output will drop or spike out-of-bounds, triggering an immediate “Not OK” system alarm to prevent false trips while alerting technicians to the cable break.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested Emerson Epro UES815S-24A modules are covered by a 12-month replacement warranty from the date of shipment.
