Emerson HD22005-2 220V/5A Rectifier PowerMaster Module

Description

Product Introduction & Engineering Value

The HD22005-2 is a legacy Emerson high-frequency switching rectifier used in industrial DC power systems. Its job is straightforward but critical: convert the incoming three-phase AC supply into controlled DC power for the DC bus and battery-charging system. Emerson documentation identifies the model as 220 VDC, 5 A.

This is not a generic 220 V power supply. The HD22005-2 belongs to a specific PowerMaster architecture and interfaces with the system’s monitoring and control equipment. Replacement therefore requires attention to the exact -2 revision, rack/accessory configuration, and system wiring. Emerson’s documentation lists W1M61X3SET as the common accessory for the -2 series.

Technical Specifications

The technical guide specifies a 3–8 second soft-start, 10–100% constant-current range, approximately ±0.5% voltage regulation, and ±1% current regulation. It also documents input over/undervoltage and output over/undervoltage protection functions.

Output Characteristics

The important procurement number is 5 A, not simply “220 V.” The HD22005-2 is one of four PowerMaster -2 rectifier models documented in the system guide:

• HD22005-2: 220 V / 5 A
• HD22010-2: 220 V / 10 A
• HD11020-2: 110 V / 20 A
• HD11010-2: 110 V / 10 A

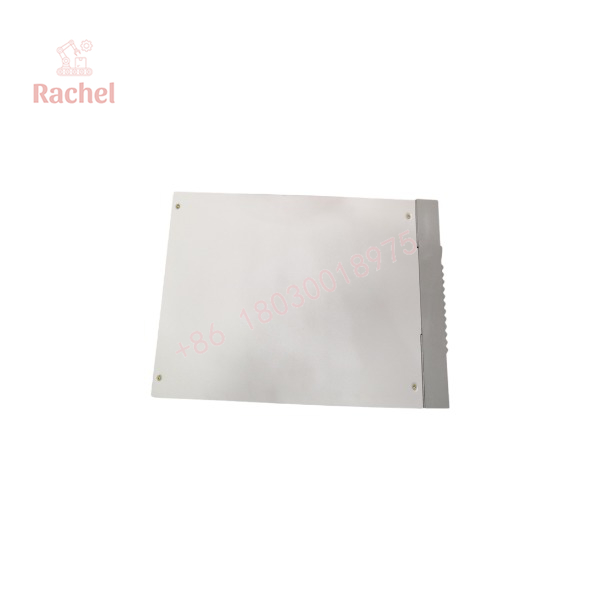

HD22005-2

Field Application & the “Trench” Experience

Consider a legacy DC distribution cabinet with several HD22005-2 modules operating in parallel. One module begins dropping out under load. The DC bus remains alive because the remaining rectifiers carry the load, so the failure initially looks minor.

It isn’t.

A failed module reduces available charging capacity and redundancy. If the battery is simultaneously supporting a load or the cabinet is operating near its design capacity, the remaining rectifiers can become overloaded. The sensible maintenance response is to identify the failed module, verify the system’s alarm history, and replace it with the same HD22005-2 configuration, rather than selecting a newer-looking 220 V/5 A rectifier based only on output voltage and current.

Typical applications include:

1. 220 VDC substation control-power systems
2. Industrial DC switchgear and protection power supplies
3. PowerMaster battery-charging and DC distribution cabinets
4. Legacy plant control and electrical protection systems

The PowerMaster documentation describes the rectifier as operating under monitoring-system supervision, including voltage regulation, protection, operating-data reporting, and receipt of control commands.

Transparency SOP: QA & Testing

For New Surplus or Refurbished HD22005-2 inventory, a visual inspection alone is not enough.

Step 1 — Identity verification

Confirm:

• Emerson identification
• Revision/label information
• Serial number
• Any associated Emerson BOM or accessory number

The PowerMaster BOM identifies HD22005-2 as Emerson BOM 02130401 and identifies W1M61X3SET, BOM 03040051, as the common accessory for the -2 modules.

Step 2 — Physical inspection

Check the AC input section, DC output terminals, connectors, PCB assemblies, mounting hardware, labels, and cooling path.

Step 3 — Electrical test

Use an appropriate controlled three-phase test supply. Verify input behavior, DC output regulation, current limiting, and protection functions.

Step 4 — Load test

Test the module at progressively higher loads rather than stopping at no-load output voltage. Confirm stable operation near the rated 5 A output.

Step 5 — System test

Where possible, test the module in a compatible PowerMaster cabinet and verify monitoring, alarms, current sharing, and DC-bus behavior.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing HD22005-2 with HD22005-3 or HD22005-3A.

The suffix is significant. Emerson’s documentation treats the -2 and -3 families as different rectifier generations, and the -3 models use different accessories and mechanical arrangements. The -2 family uses W1M61X3SET as its common accessory.

⚠️ Trap #2 — Treating 220 V/5 A as enough information for substitution.

It isn’t. Another rectifier can have the same nominal output while using different input characteristics, dimensions, connectors, monitoring communications, cooling, or control architecture.

⚠️ Trap #3 — Assuming “hot plug” means zero-risk replacement.

PowerMaster documentation discusses special conditions for hot replacement. A rectifier’s output capacitors can interact with an energized DC bus if the required isolation arrangement is absent. Follow the system-specific replacement procedure; do not improvise a live replacement.

PRO TIP: When sourcing this part, provide the supplier with a photograph of the complete front label and the rectifier slot/rack. That prevents a common purchasing mistake: receiving an HD22005-3A when the installed system requires the older .

Dynamic FAQ

What is Emerson HD22005-2?

The is a PowerMaster high-frequency switching rectifier/charging module rated at 220 VDC and 5 A.

What is the input voltage?

The documented input range is 323–475 VAC, three-phase, three-wire, at 50 Hz ±10%. Maximum input current for the HD22005-2 is approximately 4 A.

What is the DC output range?

The 220 V series is specified for approximately 198–286 VDC, with the HD22005-2 rated for 5 A.

Is the same as HD22005-3A?

No. They are different generations/configurations. The PowerMaster documentation identifies the -2 family separately from the later -3/-3A rectifiers, including different accessory and mechanical arrangements.

Is the HD22005-2 discontinued?

It is a legacy PowerMaster component, and current spare-parts references list the model primarily as an industrial replacement item rather than a current-generation Emerson rectifier. One industrial DC-power reference specifically categorizes HD22005-2 among discontinued Emerson components.

Is New Surplus HD22005-2 acceptable?

Yes, provided the unit is genuine, the complete -2 designation matches the installed system, and the module has passed controlled electrical and load testing. For critical DC systems, request test documentation rather than relying solely on a “power-on tested” statement.

What warranty should I request?

For a New Surplus or refurbished HD22005-2, request written coverage for startup, 220 VDC output regulation, full 5 A load operation, current limiting, alarm/protection behavior, and compatibility with the intended PowerMaster cabinet. Also confirm whether the supplier tested the module under load.
