Emerson Ovation 1C31116G04 Analog Input Module

Description

Product Introduction & Engineering Value

Temperature measurement failures are often caused by small signal-chain problems rather than the field sensor itself. In thermocouple applications, accurate measurement depends on proper compensation of the reference junction temperature at the terminal block.

The Emerson Ovation 1C31116G04 provides the temperature sensing function required for compensated thermocouple inputs in Ovation analog input systems. It works together with the Ovation analog input electronics module and terminal block assembly to maintain accurate process temperature monitoring.

For power plants and process facilities, maintaining the correct Ovation personality module is important because the wrong input configuration can produce incorrect engineering values even when the hardware appears to operate normally.

Technical Specifications

The Ovation spare parts catalog identifies 1C31116G04 as “PMOD ASSY, ANALOG INPUT (VOLTAGE W/ TEMP SENSOR) 8CH.” The Ovation I/O reference documentation describes this personality module as containing a temperature sensor IC used to measure terminal block temperature for thermocouple cold junction compensation.

Field Application & The “Trench” Experience”

A coal-fired power station operating an Emerson Ovation control system began receiving unstable temperature indications on several boiler monitoring points. The DCS showed intermittent temperature fluctuations, but field technicians confirmed the thermocouple wiring and sensors were operating correctly.

The maintenance team reviewed the analog input chain and identified a failed personality module associated with thermocouple compensation. After replacing the defective 1C31116G04, engineers verified terminal temperature measurement, recalibrated affected points, and restored accurate temperature display without replacing the complete I/O assembly.

The repair avoided unnecessary field rewiring and prevented a larger troubleshooting effort during a scheduled outage window.

Typical application scenarios include:

• Boiler Furnace Temperature Monitoring — thermocouple measurement for combustion control
• Steam Turbine Bearing Temperature Systems — monitoring critical thermal conditions
• Process Heater Temperature Control — acquiring millivolt-level sensor signals

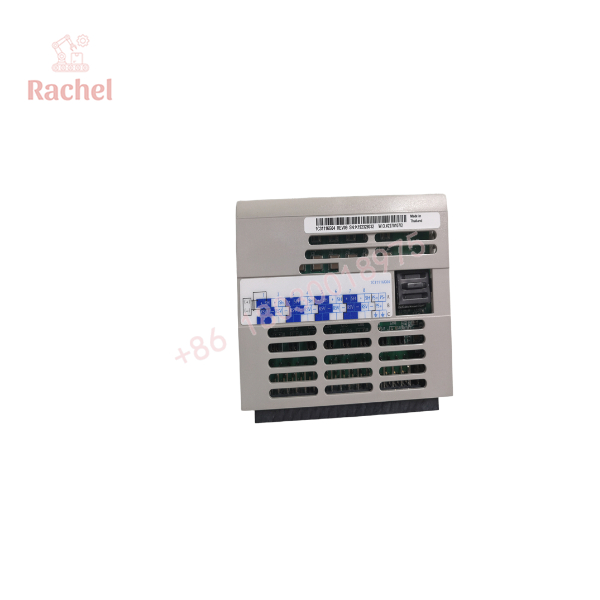

1C31116G04

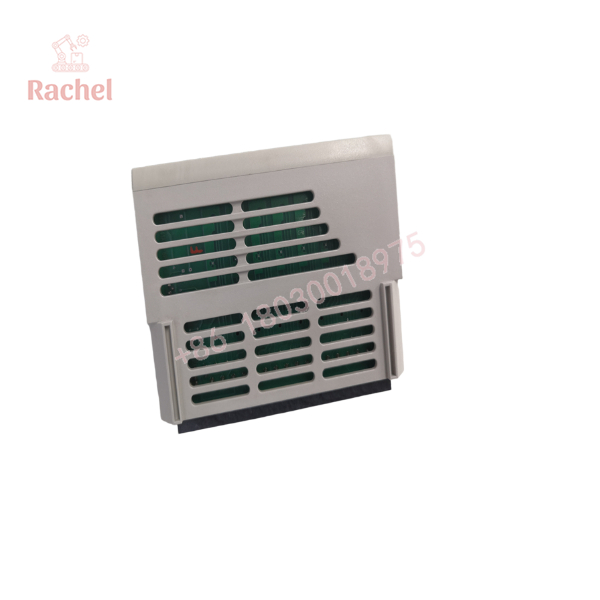

1C31116G04

Transparency SOP: QA & Testing

For Emerson Ovation 1C31116G04 new surplus or refurbished inventory:

Quality Verification Process

1. Identification Review
   • Confirm Emerson/Ovation labeling.
   • Verify exact part number: 1C31116G04.
   • Record hardware revision information.
2. Physical Inspection
   • Inspect connector pins.
   • Check PCB condition.
   • Verify no corrosion, contamination, or component damage.
3. Functional Testing
   • Verify personality module identification.
   • Test temperature sensor operation.
   • Check compatibility with Ovation analog input hardware.
   • Verify thermocouple compensation behavior when test equipment is available.
4. Final Release
   • Record inspection results.
   • Apply ESD protection.
   • Provide warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse 1C31116G04 with other Ovation analog input personality modules.

The Ovation platform uses different personality modules for different input types. A similar-looking module may support different voltage ranges, current inputs, or compensation functions.

⚠️ Do not replace only the personality module without checking the electronics module.

The PMOD and EMOD work together. A mismatch can create incorrect scaling or failed channel recognition.

PRO TIP: Record the complete analog input assembly combination before replacement:

• Electronics module part number
• Personality module part number
• Terminal block type
• Channel configuration

⚠️ Thermocouple errors are not always sensor failures.

Incorrect cold junction compensation can create temperature errors that look like bad field instruments.

Dynamic FAQ

Q1: What is the Emerson 1C31116G04 used for?
The 1C31116G04 is an Ovation analog input personality module used for voltage-based temperature measurement applications with integrated cold junction compensation support.

Q2: Is the 1C31116G04 a complete analog input card?
No. It is a personality module (PMOD) that works with the appropriate Ovation analog input electronics module.

Q3: How many channels does the 1C31116G04 support?
The module is designed for an 8-channel analog input configuration.

Q4: What sensors are commonly connected through the 1C31116G04?
Typical applications include thermocouples and millivolt-level voltage signals used for industrial temperature measurement.

Q5: How are refurbished 1C31116G04 modules tested?
Testing should include part verification, connector inspection, temperature sensor verification, compatibility checks, and analog input system validation.

Q6: Is Emerson 1C31116G04 still manufactured?
The module is considered a legacy Ovation DCS component. Availability typically depends on remaining inventory, lifecycle support channels, and refurbished spare suppliers.

Q7: What information is needed when sourcing a replacement 1C31116G04?
Provide the Ovation system version, analog input electronics module number, terminal block type, channel application, and current fault symptoms before replacement.
