Emerson Ovation 1C31132G01 Analog Output Module

Description

Product Introduction & Engineering Value

Analog output failures can be difficult to isolate because the control logic may continue operating normally while field actuators stop responding. A command value displayed correctly in the DCS does not always mean the physical output signal reaching the field device is healthy.

The Emerson Ovation 1C31132G01 provides the signal interface required for analog control applications, including valve positioning, actuator commands, and process regulation loops. In legacy Ovation installations, maintaining the correct personality module is critical because output type, wiring arrangement, and electronics module compatibility directly affect system operation.

Technical Specifications

The Ovation I/O documentation lists 1C31132G01 as the Analog Output Personality Module used with the 1C31129 series Analog Output Electronics Module. Supported configurations include voltage output and 0–20 mA or 4–20 mA current output applications.

Field Application & The “Trench” Experience”

A gas turbine auxiliary control system at a power facility began showing inconsistent valve positioning. Operators could adjust the setpoint from the Ovation workstation, and the control algorithm responded normally, but the physical actuator movement did not match the command signal.

Maintenance technicians checked the field actuator, loop wiring, and controller communications. The fault was eventually traced to the analog output channel assembly. The existing 1C31132G01 personality module was replaced, the loop output was verified with a calibrated meter, and the valve position control returned to normal operation.

The repair avoided replacing the complete I/O rack and preserved the existing Ovation configuration.

Typical application scenarios include:

• Turbine Control Valve Positioning — generating 4–20 mA commands for actuators
• Boiler Combustion Control — regulating dampers, fuel valves, and process equipment
• Water Treatment Control Loops — driving modulating valves and chemical dosing systems

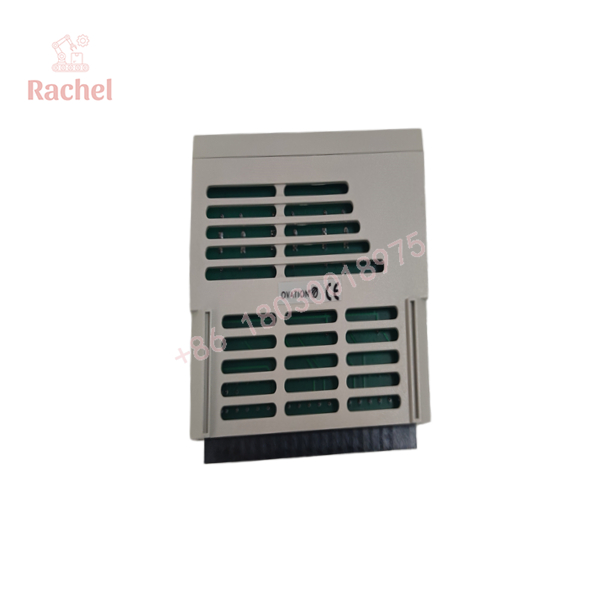

1C31132G01

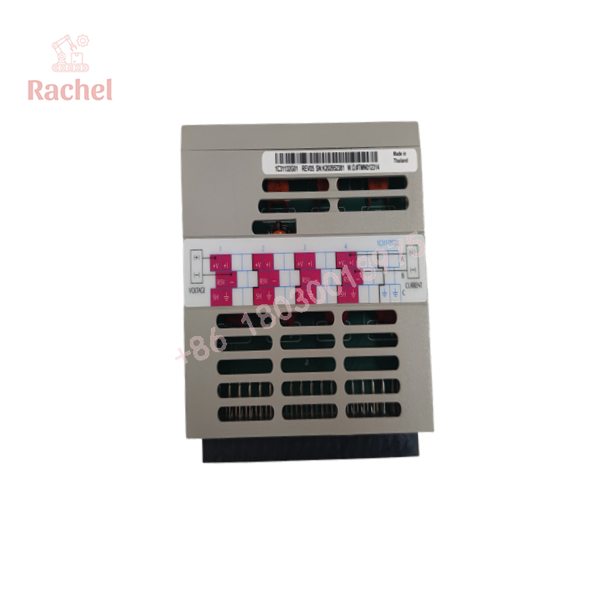

1C31132G01

Transparency SOP: QA & Testing

For Emerson Ovation 1C31132G01 new surplus or refurbished inventory:

Quality Verification Procedure

1. Part Confirmation
   • Verify Emerson/Ovation marking.
   • Confirm exact part number: 1C31132G01.
   • Record revision information.
2. Physical Inspection
   • Inspect connector pins.
   • Check PCB condition.
   • Verify terminal interface condition.
   • Look for corrosion or storage damage.
3. Functional Testing
   • Confirm module identification.
   • Verify analog output channel operation.
   • Test voltage output generation.
   • Test current loop output where equipment is available.
   • Confirm compatibility with the installed 1C31129 electronics module.
4. Final Release
   • Document inspection results.
   • Apply ESD packaging.
   • Provide warranty coverage according to stock condition.

The Veteran’s Tech Trap Guide

⚠️ Do not replace the personality module without checking the electronics module.

The Ovation analog output system separates the electronics module and personality module. A correct PMOD must match the installed EMOD configuration.

⚠️ Verify output signal type before reconnecting field devices.

A 4–20 mA loop, 0–10 V signal, and other analog outputs are not interchangeable from a commissioning perspective.

PRO TIP: Record these items before removing the module:

• Existing EMOD part number
• Personality module part number
• Channel assignments
• Field instrument signal type
• Loop calibration values

⚠️ Do not ignore loop power requirements.

Some field devices require external loop power or specific wiring arrangements. A correct DCS output module can still fail if the field circuit configuration is wrong.

Dynamic FAQ

Q1: What is the Emerson 1C31132G01 used for?
The 1C31132G01 is an Emerson Ovation Analog Output Personality Module used to provide analog control signals to field devices in Ovation DCS systems.

Q2: How many analog outputs does the 1C31132G01 support?
The module supports four analog output channels.

Q3: Is the 1C31132G01 a complete analog output card?
It is a personality module component. The complete analog output function requires the compatible Ovation analog output electronics module, such as the 1C31129 series.

Q4: What signal types can the 1C31132G01 support?
Typical configurations include voltage outputs and current outputs such as 0–20 mA and 4–20 mA applications.

Q5: How are refurbished 1C31132G01 modules tested?
Testing should include identification verification, connector inspection, analog output checks, signal generation testing, and compatibility verification with the Ovation I/O assembly.

Q6: Is Emerson 1C31132G01 still manufactured?
The 1C31132G01 is a legacy Ovation DCS component. Availability typically depends on remaining inventory, repair programs, and industrial automation spare suppliers.

Q7: What information is needed when sourcing a replacement 1C31132G01?
Provide the Ovation system version, associated electronics module number, I/O rack details, field signal type, and current loop fault symptoms.
