Description
Product Introduction
The Emerson / Westinghouse 1C31161G02 is a high-precision RTD (Resistance Temperature Detector) input electronics module designed for the Ovation Distributed Control System (DCS). Engineered specifically for critical thermal monitoring applications, it conditions and digitizes signals from RTD sensors installed in bearings, motor windings, heat exchangers, and process piping.
Capable of accepting multi-wire RTD sensor configurations (Pt100, Cu10, Ni120 depending on personality module pairing), the 1C31161G02 filters out ambient electromagnetic noise and lead-wire resistance interference. It provides optical galvanic isolation between field sensor wiring and the internal Ovation backplane bus, ensuring safe operation and high signal integrity in power generation and heavy process plants.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31161G02 (EMOD ASSY) |
| Input Type | RTD (Resistance Temperature Detector) |
| Channel Capacity | 8 dedicated RTD sensor channels |
| Wiring Formats | Supports 2-Wire, 3-Wire, and 4-Wire RTD compensation circuits |
| Isolation | Channel-to-bus optical dielectric isolation |
| Diagnostics | Front-panel LED status indicators (Power, Fault, Channel state) |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Dimensions & Weight | ~4.8″ x 2.0″ x 6.5″ (12.1 cm x 5.1 cm x 16.5 cm) | ~0.32 kg |
Application Scenarios & The “Trench” Experience
During a peak load cycle at a steam turbine facility, high-vibration alarms trigger on turbine bearing RTDs, but temperature readings jump erratically on operator graphics. Diagnostic LEDs on the input card indicate lead-wire compensation failure. Replacing the faulty module with a tested 1C31161G02 RTD card restores stable 3-wire resistance processing, preventing an unnecessary automatic turbine trip.
- Power Generation Turbines: Monitors steam turbine bearing temperatures, generator stator winding heat, and main steam headers.
- Petrochemical Reactors: Tracks multi-point temperature profiles inside cracking towers and catalyst beds.
- Boiler & Condenser Monitoring: Measures feed-water inlet/outlet temperatures and flue gas thermal dynamics.
- Heavy Industrial Machinery: Protects large motor bearings and compressor housings from thermal overload.

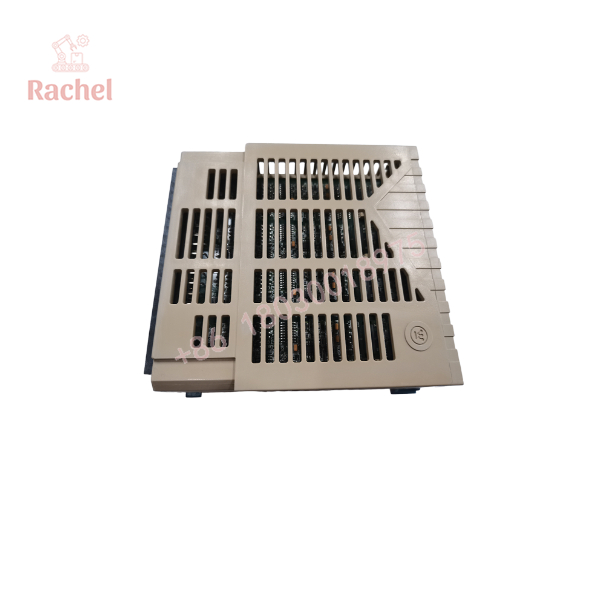

1C31161G02

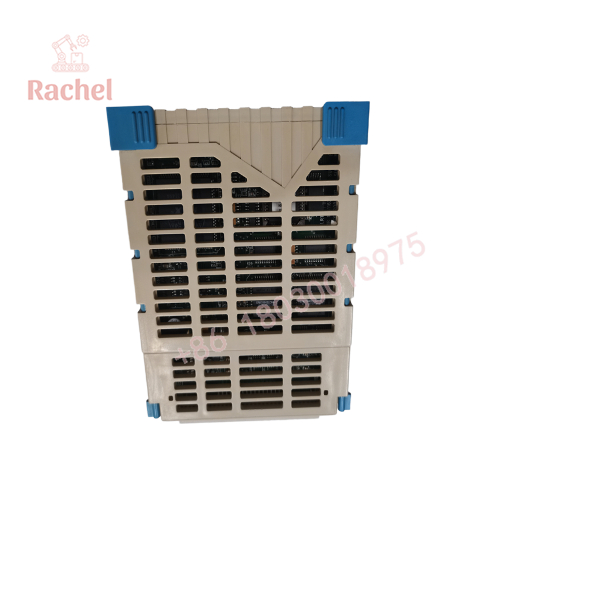

1C31161G02
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Audit: Inspect edge connector pins for wear or oxidation, check card latches, and verify SMT PCB components under magnification.
- Backplane Power-On Self-Test: Mount unit into an Ovation test rack; verify clean logic startup and green status LED illumination.
- Precision Resistance Simulation: Apply calibrated decade resistor standards across all 8 channels across 0°C, 100°C, and 200°C equivalent RTD values; verify A/D accuracy and linearity.
- Lead-Wire Compensation Check: Simulate asymmetric line resistance on 3-wire and 4-wire test loops to verify active lead-resistance cancellation.
- ESD Protection & Packaging: Vacuum-seal inside anti-static shielding bags, surround with custom foam padding, and package in a rigid shipping carton.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match PMOD Configuration (Pt100 vs. Cu10): RTD module personality cards (PMODs) determine excitation current and sensor type curve. Installing a 1C31161G02 onto an improperly matched PMOD base will cause severe temperature offset errors.
- ❗ Use 3-Wire or 4-Wire RTDs for Long Runs: 2-wire RTD hookups do not compensate for field cable resistance. For instrument runs over 50 feet, always utilize 3-wire or 4-wire cabling to prevent temperature drift.
- ⚠️ Ground Cable Shields at Base Only: Ensure field RTD cable shields are grounded at the designated Ovation terminal block earth bar only; floating or double-grounded shields induce ground loop noise into sensitive RTD channels.
- ❗ Verify Hot-Swap Latch Engagement: When replacing online, ensure both top and bottom locking levers snap fully into the base track to avoid intermittent bus contact error codes.
Frequently Asked Questions (FAQ)
Q: Does the 1C31161G02 module supply sensor excitation current?
A: Yes. The module provides internal low-level precision excitation current sources for connected RTD sensors.
Q: Can I use thermocouples directly with the 1C31161G02 module?
A: No. The 1C31161G02 is strictly designed for RTD sensors. Thermocouples require dedicated Ovation Thermocouple Input modules (e.g., 1C31116 series).
Q: Can this module be hot-swapped while the DCS is online?
A: Yes. Provided it is installed in a standard Ovation I/O base assembly, the card supports live insertion and removal under system power.
Q: What warranty applies to this surplus Emerson card?
A: All clean surplus and bench-tested Emerson 1C31161G02 RTD modules include a full 12-month replacement warranty from the delivery date.
