Description
Product Introduction
The Emerson / Westinghouse 1C31169G02 is a specialized Stepper Motor Controller electronics module engineered for the Ovation Distributed Control System (DCS). Functioning as a high-precision motion control interface within the Ovation hardware ecosystem, it translates high-level positioning algorithms from the main Ovation controller into micro-stepping pulse sequences for external stepper drive amplifiers.
Designed for demanding power generation and process control environments, the 1C31169G02 offloads time-critical pulse train generation from the main controller CPU. It features galvanic isolation between internal backplane logic and field motor drive wiring, protecting system electronics against voltage transients, electrical noise, and ground loops during continuous actuator positioning.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31169G02 (EMOD ASSY) |
| Module Type | Motion / Stepper Motor Controller |
| Control Signal Outputs | Pulse/Frequency Output, Direction Logic, Enable/Reset Controls |
| Feedback Inputs | Encoder / Limit Switch Position Feedback Processing |
| Isolation | Channel-to-bus optical dielectric isolation |
| Diagnostics | Front-panel status LEDs (Power, Module Fault, Pulse Activity, Limit States) |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Hot-Swap Capability | Supported in online Ovation I/O base racks |
Application Scenarios & The “Trench” Experience
During a boiler load change at a power plant, a critical fuel gas control valve loses positioning feedback, causing the stepper actuator to stall and triggering burner management alarms. Diagnostics reveal a degraded pulse-driver stage on the stepper control card. Replacing the module with a pre-tested Emerson 1C31169G02 controller restores precise step pulse trains and encoder tracking, allowing the valve to resume smooth modulation without plant interruption.
- Power Generation Facilities: Controls precision steam positioning valves, burner tilt mechanisms, and damper drives.
- Chemical & Material Processing: Drives metering pumps and chemical dosing feed valves requiring precise volumetric control.
- Industrial Test Rigs: Regulates mechanical positioners and variable-flow test benches under real-time loop control.
- Specialized Actuation Systems: Coordinates motorized positioners across hazardous or isolated plant locations.

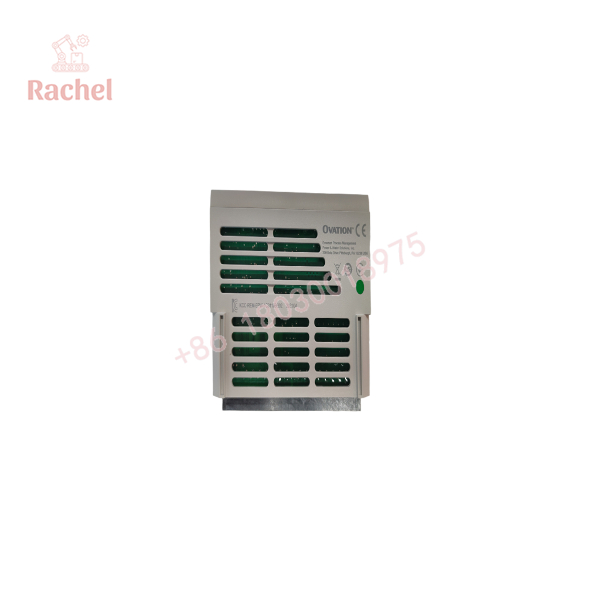

1C31169G02

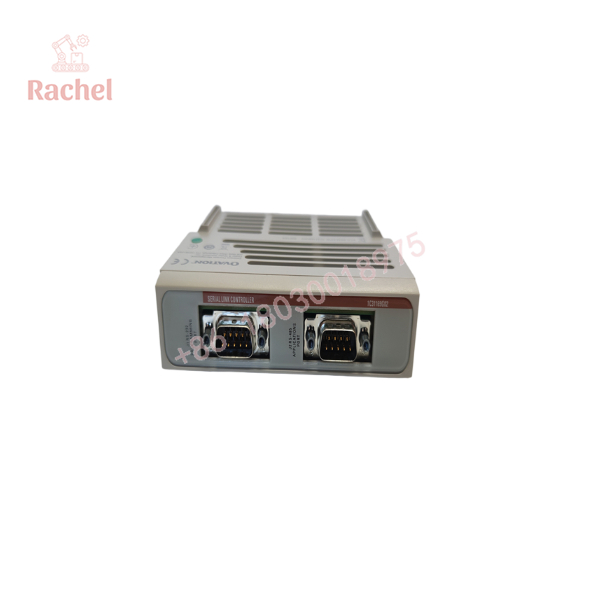

1C31169G02

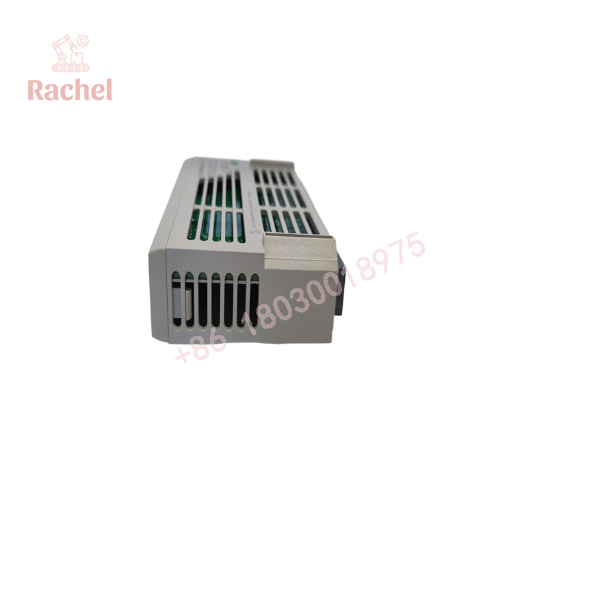

1C31169G02
Transparency SOP: Quality Assurance & Testing
- Visual & Hardware Audit: Inspect edge connector pins for wear or contamination, check PCB components under magnification, and verify latch mechanism integrity.
- Backplane Boot POST: Seat unit in an Ovation test rack; verify clean logic startup and green status LED illumination.
- Pulse Generation & Frequency Testing: Output high-frequency pulse trains across full step-rate ranges; measure pulse symmetry, amplitude, and direction logic transitions on an oscilloscope.
- Input Feedback & Limit Switch Test: Simulate home position, travel limits, and encoder quadrature feedback signals to verify real-time position counter accuracy.
- ESD Protection & Packaging: Vacuum-seal in anti-static shielding bags, surround with high-density foam padding, and package in a rigid shipping container.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Acceleration/Deceleration Curves: Pulse ramps and step counts are defined in the Ovation software drop; ensure motion profile parameters match the physical inertia of the connected valve/actuator to avoid step loss or mechanical jamming.
- ❗ Match PMOD Configuration: Ensure the underlying Personality Module (PMOD) on the 1B30035H01 base is correctly paired for stepper drive signal levels (TTL vs. differential vs. open-collector) before powering the card.
- ⚠️ Use Shielded Twisted Pair (STP) Wiring: Stepper pulse outputs can radiate high-frequency noise, and encoder feedback lines are susceptible to interference. Always use shielded cables grounded at the DCS cabinet earth point only.
- ❗ Confirm Drive Compatibility: The 1C31169G02 generates control pulses for an external stepper drive amplifier—it does not directly power high-current motor windings. Connecting motor windings directly to the card will permanently damage output circuitry.
Frequently Asked Questions (FAQ)
Q: Does the 1C31169G02 directly drive stepper motor windings?
A: No. The 1C31169G02 provides low-level pulse, direction, and logic control signals. An external power amplifier/stepper drive unit is required to energize the motor windings.
Q: Can this module be hot-swapped while the DCS is online?
A: Yes. Installed in standard Ovation I/O base assemblies, the module supports online insertion and removal without shutting down adjacent I/O slots.
Q: What do the pulse LEDs on the front faceplate indicate?
A: Front-panel activity LEDs flash in sync with outgoing step pulses and direction commands, providing real-time visual confirmation of motion execution.
Q: What warranty applies to this surplus Emerson card?
A: All clean surplus and bench-tested Emerson 1C31169G02 stepper motor controller modules carry a full 12-month replacement warranty from the delivery date.
