Product Introduction
The Emerson / Westinghouse 1C31181G01 is a high-performance Valve Positioner electronics module engineered for the Ovation Distributed Control System (DCS). Operating at the core of power plant steam management systems, it executes real-time, high-speed closed-loop positioning for governor valves, throttle valves, and bypass actuators.
By integrating servo driver outputs directly with LVDT (Linear Variable Differential Transformer) or RVDT position feedback processing on a single card, the 1C31181G01 offloads intensive analog loop calculations from the main controller CPU. Designed for harsh power generation and turbine environments, it provides full optical isolation between sensitive controller backplane logic and high-power field actuation wiring.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31181G01 (EMOD ASSY) |
| Module Type | Valve Positioner / Servo Interface Module |
| Outputs | Bipolar Servo Coil Current Outputs / 4-20mA I/P Drive |
| Inputs | Multi-channel LVDT / RVDT / 4-20mA Valve Position Feedback |
| Loop Speed | Fast sub-millisecond hardware position loop execution |
| Isolation | Channel-to-bus optical dielectric isolation |
| Diagnostics | Front-panel status LEDs (Power, Fault, Servo Drive, LVDT Status) |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
Application Scenarios & The “Trench” Experience
During load rejection testing on a utility-scale steam turbine, a main governor valve exhibits severe positioning hunting, creating grid frequency instability. Diagnostics point to a drifting feedback demodulator on the valve control module. Installing a pre-tested Emerson 1C31181G01 card restores crisp, zero-backlash LVDT demodulation and precise servo current output, locking the valve position within tight tolerances.
- Steam Turbine Control Systems: Modulates main steam stop, control/governor, and reheat valves.
- Gas Turbine Fuel Skids: Controls liquid fuel drive valves, compressor variable inlet guide vanes (IGVs), and bleed valves.
- Feedwater Control Valves: Regulates high-pressure boiler feed pump recirculation and feedwater supply valves.
- Hydroelectric Governors: Manages wicket gate positioning and turbine needle valve actuators.
Transparency SOP: Quality Assurance & Testing
- Visual & Mechanical Inspection: Inspect edge connector gold contacts for wear or oxidation, verify backplane latch clips, and check SMT components under magnification.
- Backplane Boot POST: Mount unit into an Ovation test rack; verify clean system boot and power LED illumination.
- LVDT Demodulator & Feedback Calibration: Connect calibrated LVDT simulators; sweep excitation frequencies (typically 1kHz–10kHz) and verify position feedback linearity across 0–100% stroke.
- Servo Current Loop Test: Connect active servo coil load banks; test output drive current linearity across positive, negative, and null-bias setpoints under dynamic loop step changes.
- ESD Protection & Packaging: Vacuum-seal in anti-static shielding bags, surround with high-density foam padding, and package in a rigid shipping container.

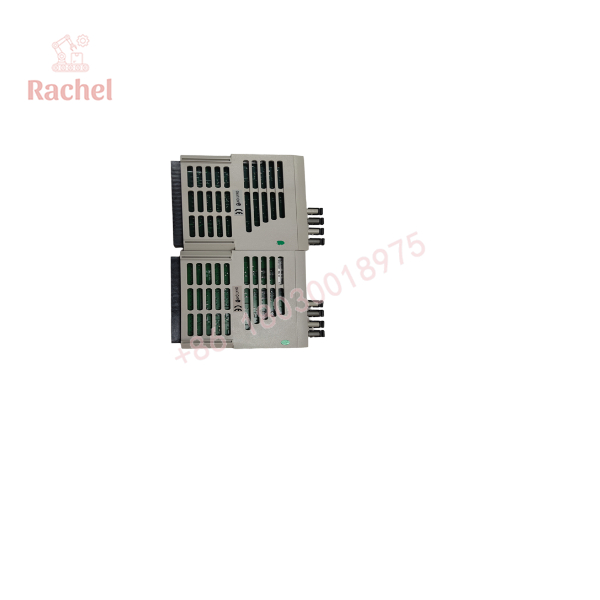

1C31181G01

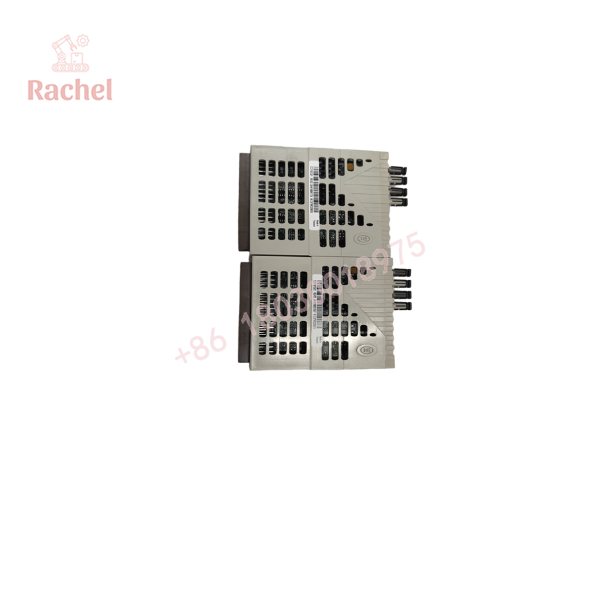

1C31181G01
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Calibrate LVDT Null & Span After Swapping: Never swap a 1C31181G01 without re-verifying LVDT zero and span calibration settings in Ovation software; slight hardware tolerances require zero/span zeroing to ensure full valve seating.
- ❗ Check Servo Coil Resistance & Polarity: Reversing polarity on servo coil output wires will turn negative feedback into positive feedback, causing the valve to slam fully open or fully closed upon boot.
- ⚠️ Verify LVDT Excitation Matching: Ensure the underlying Personality Module (PMOD) matches the target LVDT primary excitation voltage and frequency parameters to avoid signal distortion.
- ❗ Shield Signal Cables Independently: Keep LVDT feedback lines in separate shielded pairs away from high-current servo drive lines to prevent cross-talk noise from degrading valve positioning accuracy.
Frequently Asked Questions (FAQ)
Q: Does the 1C31181G01 provide the AC excitation voltage required for LVDTs?
A: Yes. The module generates internal AC excitation voltage to drive primary LVDT/RVDT sensor windings.
Q: Can this module be hot-swapped while the DCS is online?
A: Yes. Provided it is installed in a standard Ovation I/O base, the card supports online insertion and removal. However, swapping a live valve positioner card will trip or hold the associated control valve depending on system interlocks.
Q: What do the front-panel LEDs monitor on the 1C31181G01?
A: LEDs display real-time module status, logic power, LVDT signal health, and active servo output drive states.
Q: What warranty applies to this surplus Emerson component?
A: All clean surplus and bench-tested Emerson 1C31181G01 valve positioner modules include a full 12-month replacement warranty from the delivery date.
