Description
Product Introduction
The Emerson / Westinghouse 1C31194G03 is a high-density, 16-channel analog input electronics module engineered for the Ovation Distributed Control System (DCS). Serving as a primary data acquisition interface, it conditions, filters, and digitizes signals from 4-20mA transmitters, pressure transducers, flow meters, and level sensors scattered across industrial plants.
Designed for continuous, high-reliability operation, the 1C31194G03 utilizes advanced analog-to-digital conversion circuitry to ensure high signal accuracy and minimal drift. Optical isolation barriers protect internal controller backplane logic against common-mode noise, ground loops, and electrical surges typical in power generation, water treatment, and refining operations.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31194G03 (EMOD ASSY) |
| Module Type | Analog Input Electronics Module (16-Channel) |
| Input Signal Range | Standard 4-20mA DC, 1-5V DC, 0-10V DC (configuration dependent) |
| Resolution | 12-bit to 16-bit analog-to-digital conversion |
| Isolation | Optical bus isolation between field wiring and internal logic |
| Diagnostics | Front-panel LEDs (Power, Module Fault, Channel Status) |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Hot-Swap Support | Supported in live Ovation I/O base chassis |
Application Scenarios & The “Trench” Experience
During a sudden load drop at a combined-cycle power plant, several feedwater flow and drum level transmitters begin showing erratic values, causing false low-level alarms. Diagnostics reveal signal degradation across multiple channels on an aging analog card. Swapping in a bench-tested 1C31194G03 module restores stable 4-20mA readings, clearing system alarms and keeping the boiler on-line.
- Boiler & Turbine Systems: Monitors main steam pressure, feedwater flow rates, condenser vacuum levels, and drum levels.
- Chemical & Refining Plants: Tracks process tank levels, pipe header pressures, and inline flow rate transmitters.
- Water & Wastewater Treatment: Reads basin levels, pump discharge pressures, and water flow totals.
- HVAC & Environmental Skids: Captures ambient duct pressure, air damper position feedback, and facility differential pressure signals.

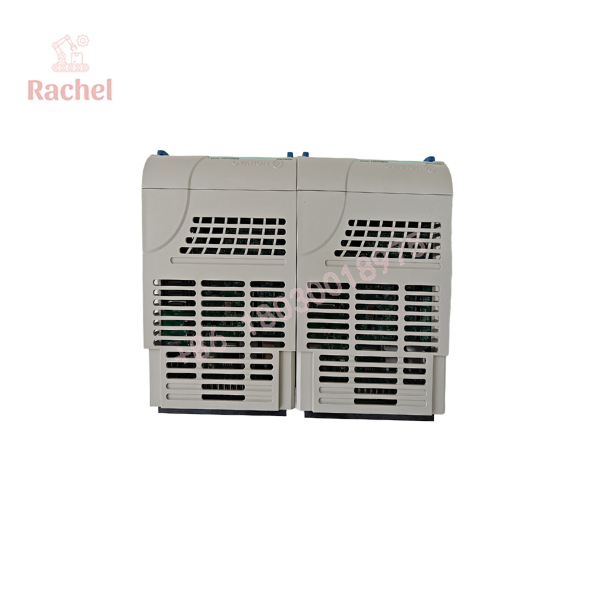

1C31194G03

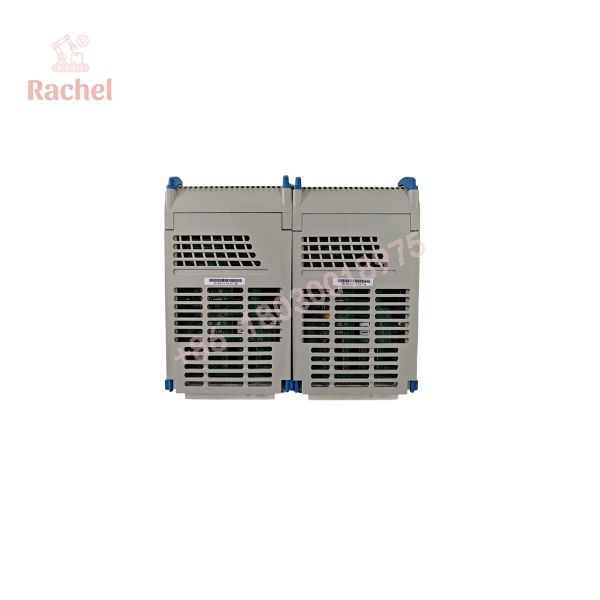

1C31194G03
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Audit: Inspect edge connector pins for wear or oxidation, check retention latches, and inspect all board surface-mount components under magnification.
- Backplane Boot POST: Seat unit in an Ovation test rack; verify proper bus handshake, initialization, and power LED illumination.
- 16-Channel Current Sweep: Inject calibrated 4.00mA, 12.00mA, and 20.00mA signals across all 16 channels using a precision calibrator; verify A/D conversion accuracy within OEM specs.
- Common-Mode Noise & Linearity Check: Test channel isolation and linearity under simulated line noise to ensure zero channel-to-channel crosstalk.
- ESD Protection & Packaging: Encapsulate inside anti-static shielding bags, surround with high-density foam padding, and package in a heavy-duty shipping box.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match PMOD Jumpers & Resistors: The 1C31194G03 relies on the base-mounted Personality Module (PMOD) for 250-ohm precision shunt resistors (converting 4-20mA to 1-5V). Ensure the PMOD matches 2-wire vs. 4-wire transmitter setups before powering up.
- ❗ Check Loop Power Supply (2-Wire Transmitters): The 1C31194G03 measures input signals but relies on external or base-supplied 24V DC auxiliary power to loop-power 2-wire field transmitters. Lack of 24V power will cause channels to drop to 0mA (Bad Quality flag).
- ⚠️ Shield Grounding at Cabinet Earth Only: Ground field cable shields at the designated DCS panel ground bar only. Floating or double-grounded shields induce 60Hz hum into sensitive 4-20mA analog loops.
- ❗ Verify Hot-Swap Interlocks: When replacing an online card, ensure the module latches click firmly into place to avoid partial bus engagement and intermittent I/O fault alarms.
Frequently Asked Questions (FAQ)
Q: Does the 1C31194G03 supply power directly to 2-wire transmitters?
A: No. Auxiliary 24V DC loop power must be routed through the underlying Ovation terminal base assembly/PMOD to power 2-wire field instruments.
Q: Can this analog input module be hot-swapped while the DCS is online?
A: Yes. Provided it is installed in a standard Ovation I/O base assembly, the card can be inserted or removed online without disrupting adjacent slots.
Q: What do the front-panel status LEDs indicate?
A: Front-panel indicators display logic power status, module health/fault states, and channel-level operational status.
Q: What warranty applies to this surplus Emerson card?
A: All clean surplus and bench-tested Emerson 1C31194G03 analog input modules carry a full 12-month replacement warranty from the delivery date.
