Description
Product Introduction & Engineering Value
The Emerson Ovation 5X00106G01 is a high-performance HART analog input electronics module designed for eight-channel process measurement applications. It provides high-speed acquisition of 4–20 mA signals while maintaining HART communication capability for intelligent field transmitters.
In power plants and process facilities, this module often sits between critical instrumentation and the DCS control strategy. A failed input module can remove multiple process measurements at once, affecting operator visibility, alarms, and closed-loop control functions. Maintaining a tested spare reduces troubleshooting time during unexpected I/O failures.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Platform | Ovation DCS |
| Part Number | 5X00106G01 |
| Module Type | Analog Input Electronics Module |
| Input Channels | 8 |
| Input Signal | 4–20 mA |
| Communication Protocol | HART |
| Module Performance | High Performance / Fast HART |
| Field Device Compatibility | HART-enabled transmitters |
| Input Measurement | Analog process variable acquisition |
| HART Communication | Dedicated transceiver support per channel |
| Installation Position | Ovation I/O rack |
| Companion Module | 5X00109G01 HART High Performance Analog Input Personality Module |
| Power Requirement | Approx. 5.5 W typical |
| Operating Environment | Industrial process automation applications |
Field Application & The “Trench” Experience
A combined-cycle power station reported intermittent loss of several pressure and flow indications on a boiler auxiliary system. Operators noticed that the process values occasionally froze, but the transmitters themselves continued communicating correctly in field checks.
The maintenance team initially focused on the instruments because HART diagnostics showed no obvious transmitter faults. After swapping the affected Ovation I/O channel hardware, engineers identified instability in the analog input electronics module.
A tested Emerson 5X00106G01 was installed with the existing compatible personality module. Loop simulation confirmed stable 4–20 mA readings, HART communication returned, and the affected control loops resumed normal operation.
The practical lesson: multi-channel analog input failures can look like field instrument problems. Rack-level diagnostics and spare module testing are essential.
Typical application scenarios:
- Boiler drum pressure transmitter monitoring
- Turbine auxiliary temperature and vibration-related analog monitoring
- Feedwater flow measurement systems
- Chemical process skid pressure and level instrumentation

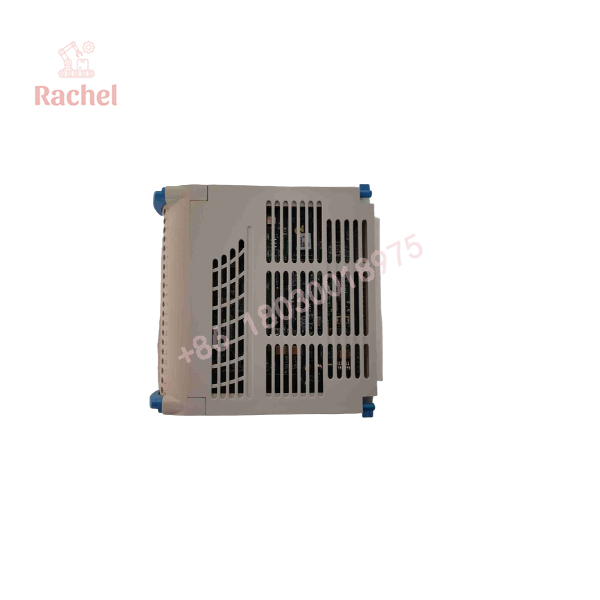

5X00106G01

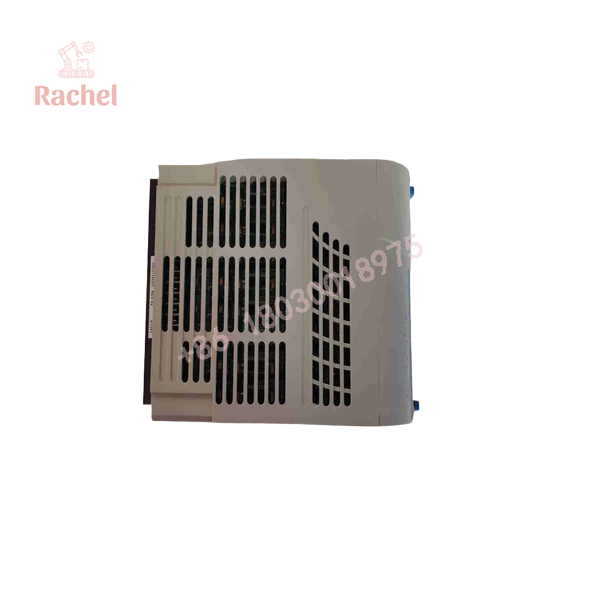

5X00106G01
Transparency SOP: QA & Testing
A DCS analog input module requires electrical and communication validation before being placed into spare inventory.
Qualification workflow:
1. Identification Check
- Confirm Emerson/Ovation labeling.
- Verify exact part number: 5X00106G01.
- Check connector condition and module housing.
2. Visual Inspection
- Inspect PCB condition.
- Check for corrosion, contamination, or damaged pins.
- Verify module locking mechanism.
3. Electrical Testing
- Verify module power consumption.
- Test channel input circuits.
- Confirm analog signal processing.
4. HART Verification
- Connect simulated HART transmitters.
- Verify digital communication.
- Check transmitter diagnostics access.
5. Documentation
- Record serial number.
- Store test reports.
- Classify inventory condition:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Mixing Up EMOD and PMOD Components
The 5X00106G01 is the Electronics Module (EMOD).
It works with the corresponding personality module:
- 5X00106G01 → EMOD
- 5X00109G01 → PMOD
Installing only one half of the assembly will not restore the complete I/O function.
⚠️ Trap #2: Assuming Any Analog Input Card Supports HART
Standard 4–20 mA input modules and HART-enabled modules are not interchangeable.
PRO TIP: Verify:
- HART requirement
- Channel count
- Input type
- Ovation I/O configuration database
A standard analog input module may read current but will not provide HART diagnostics.
⚠️ Trap #3: Ignoring Loop Power and Transmitter Wiring
A healthy input module can still show bad values if the field loop has problems.
Check:
- Loop resistance
- Transmitter power supply
- Shielding and grounding
- Field wiring polarity
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00106G01 used for?
The 5X00106G01 is an Ovation high-performance HART analog input electronics module used to collect process measurements from HART-enabled field transmitters.
Q2. How many channels does the 5X00106G01 support?
The module supports 8 analog input channels with HART communication capability.
Q3. Is the 5X00106G01 a complete HART analog input assembly?
No. It is the electronics module portion. The complete Ovation I/O assembly requires the appropriate personality module, such as the 5X00109G01 PMOD.
Q4. What type of field devices connect to the 5X00106G01?
Typical devices include HART-enabled:
- Pressure transmitters
- Flow transmitters
- Temperature transmitters
- Level transmitters
Q5. What should buyers verify before purchasing a New Surplus 5X00106G01?
Recommended checks:
- Correct Ovation part number
- EMOD/PMOD compatibility
- Connector condition
- HART communication test results
- Channel verification records
- Warranty coverage
Q6. Is refurbished 5X00106G01 suitable for critical DCS spare inventory?
Yes, provided the module has passed analog input testing, HART communication verification, and rack compatibility checks. For Ovation systems in continuous operation, a tested spare can reduce restoration time during I/O failures.
