Description
Product Introduction & Engineering Value
Temperature measurement failures are often misdiagnosed as sensor problems. The Emerson Ovation 5X00119G01 RTD Input Electronics Module provides eight-channel temperature acquisition for RTD-based field instrumentation within Ovation DCS installations. It converts resistance signals into digital values used by the control system for monitoring and automation functions.
For power generation and process facilities, this module is commonly connected to critical temperature points such as bearings, windings, pumps, and auxiliary equipment. The correct replacement requires more than matching the part number; engineers must confirm the paired personality module, RTD configuration, and existing I/O database settings.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Platform | Ovation DCS |
| Part Number | 5X00119G01 |
| Module Type | RTD Input Electronics Module (EMOD) |
| Number of Channels | 8 |
| Input Signal | RTD resistance measurement |
| Compatible PMOD | 5X00121G01 |
| RTD Wiring | 2-wire / 3-wire / 4-wire |
| RTD Types | Platinum, Nickel, Copper RTD types depending on configuration |
| Resolution | 12-bit |
| Accuracy | Approximately 0.10% at 25°C (application dependent) |
| Temperature Coefficient | 10 ppm/°C |
| Sampling Rate | System frequency dependent |
| Power Consumption | Approximately 3.6 W typical |
| Operating Temperature | 0 to 60°C |
| Mounting Location | Ovation I/O rack |
Field Application & The “Trench” Experience
A combined-cycle power plant experienced unstable temperature readings on several generator auxiliary systems. Operators noticed sudden temperature jumps on bearing monitoring displays, triggering unnecessary maintenance alarms.
The first investigation focused on the RTD sensors because the displayed values appeared abnormal. Field technicians verified the sensors and wiring resistance, but the measurements remained inconsistent.
The maintenance team replaced the affected Ovation RTD input hardware. After installing a tested 5X00119G01 electronics module with the correct 5X00121G01 personality module, temperature values stabilized and the false alarms disappeared.
The lesson from the field: a temperature loop problem is not always a bad RTD. The signal chain includes wiring, personality hardware, electronics module, and controller configuration.
Typical application scenarios:
- Steam turbine bearing temperature monitoring
- Generator winding temperature acquisition
- Boiler auxiliary equipment temperature supervision
- Cooling water and process heat exchanger monitoring

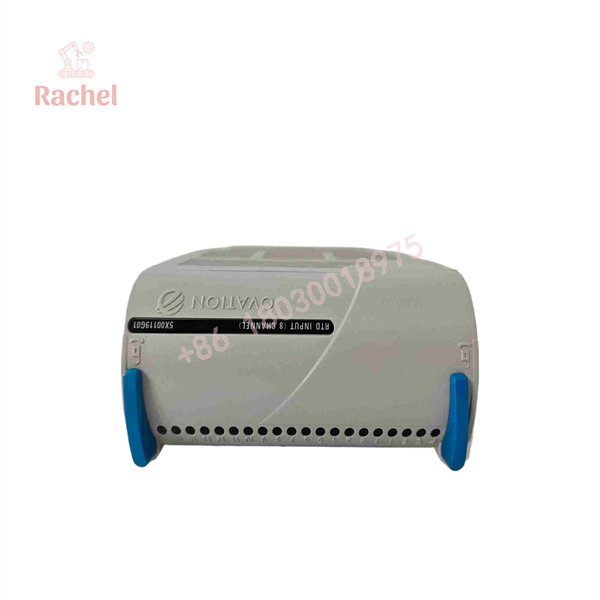

5X00119G01

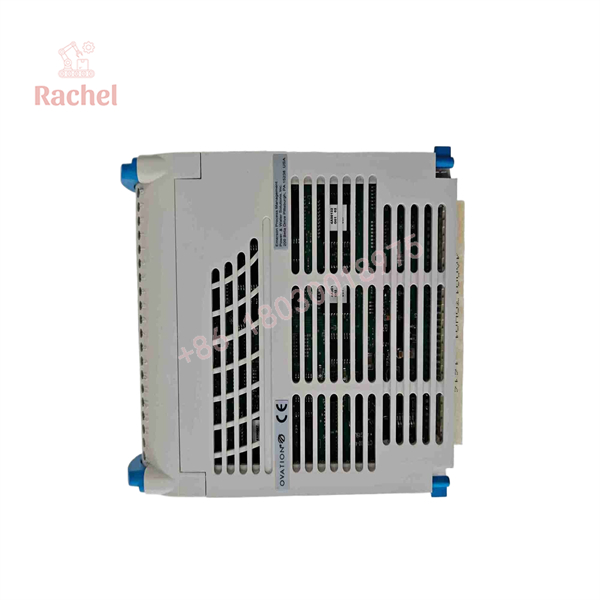

5X00119G01
Transparency SOP: QA & Testing
RTD input modules require precision signal testing before being placed into critical spare inventory.
Verification process:
1. Identification Inspection
- Confirm Emerson/Ovation marking.
- Verify exact model: 5X00119G01.
- Check connector condition and module housing.
2. Electrical Inspection
- Inspect PCB condition.
- Check for corrosion or contamination.
- Verify backplane connector integrity.
3. RTD Simulation Testing
- Apply simulated RTD resistance values.
- Verify channel response.
- Confirm measurement stability.
4. Configuration Verification
- Confirm RTD range settings.
- Test 2-wire, 3-wire, and 4-wire configurations where applicable.
- Verify communication with Ovation controller hardware.
5. Documentation
- Record serial number.
- Save test results.
- Assign inventory condition:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Installing the EMOD Without the Correct Personality Module
The 5X00119G01 is the Electronics Module only.
Required pairing:
- 5X00119G01 → RTD Input EMOD
- 5X00121G01 → RTD Input PMOD
These modules are designed to operate together. Mixing unrelated Ovation I/O components will not restore the channel function.
⚠️ Trap #2: Assuming All Temperature Inputs Are Equivalent
An RTD input module is not interchangeable with:
- Thermocouple input modules
- Analog voltage input modules
- Standard current input modules
PRO TIP: Verify the field sensor type before ordering. A Pt100 RTD and a thermocouple may look similar from the control room but require completely different input hardware.
⚠️ Trap #3: Ignoring Lead Resistance Compensation
Three-wire RTD applications depend on proper lead resistance compensation.
Check:
- Field wiring configuration
- Terminal connections
- Channel configuration parameters
Incorrect wiring can create temperature offset errors even when the module is functioning correctly.
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00119G01 used for?
The 5X00119G01 is an 8-channel RTD input electronics module used in Emerson Ovation DCS systems for temperature measurement applications.
Q2. Is the 5X00119G01 a complete RTD input module assembly?
No. It is the electronics module (EMOD). It must be paired with the appropriate personality module, typically 5X00121G01.
Q3. How many temperature inputs does the 5X00119G01 support?
The module supports eight RTD input channels.
Q4. What RTD wiring methods are supported?
The module supports 2-wire, 3-wire, and 4-wire RTD configurations depending on the application setup.
Q5. What should buyers verify before purchasing a New Surplus 5X00119G01?
Recommended checks:
- Correct Emerson Ovation part number
- EMOD and PMOD compatibility
- Connector condition
- RTD simulation test results
- Channel verification records
- Warranty coverage
Q6. Is refurbished 5X00119G01 suitable for power plant DCS spare inventory?
Yes, provided the module has passed RTD simulation testing, channel verification, and Ovation rack compatibility checks. For facilities operating legacy Ovation systems, tested RTD input modules are valuable spare assets because a single failed module can affect multiple temperature monitoring points.
