Description
Product Introduction
The Emerson 5X00121G01 is a 16-channel Sequence of Events (SOE) digital input electronic module designed for the Westinghouse / Emerson Ovation Distributed Control System (DCS). Deployed heavily in power generation plants, turbine safety trip systems, and high-consequence utility distribution, this module monitors dry contacts and 24VDC discrete field signals to track high-speed system events in real time.
Unlike standard digital input modules that scan contacts on a routine DCS sweep cycle (typically 10–100 ms), the 5X00121G01 assigns a precise 1-millisecond timestamp directly at the card level the instant a contact state changes. In our field experience, when a plant trip occurs, replacing a damaged card with an exact 5X00121G01 module maintains time-synchronization across the Ovation network, allowing engineers to reconstruct event cascades down to the exact millisecond.
Key Technical Specifications
| Parameter | Value |
| Part Number | 5X00121G01 |
| Manufacturer | Emerson Process Management (Westinghouse) |
| System Architecture | Ovation DCS I/O |
| Number of Channels | 16 Discrete Input Channels |
| Input Voltage Rating | 24 VDC (Nominal dry contact / wet contact sensing) |
| Time Resolution | 1 millisecond (1 ms timestamp precision) |
| Field-to-Logic Isolation | 1000V DC / RMS Isolation |
| Debounce Filtering | Configurable digital input filtering / chatter suppression |
| Matching Personality Module | 5X00122G01 / Corresponding Ovation Base Terminal Units |
Application Scenarios & The “Trench” Experience
A combined-cycle facility experienced an unexpected main generator trip. During post-trip investigation, the Ovation Sequence of Events recorder logged missing timestamps on four critical breaker feedback contacts, making it impossible to determine whether the turbine trip valve closed before or after the generator breaker opened. Diagnostics traced the issue to corrupted timing buffer logic on channel bank 1 of the aging SOE input card.
- Power Generation Facilities – Steam/Gas Turbine Trip Systems – Captures boiler trip, overspeed, and emergency stop interlocks down to the millisecond.
- Electrical Substation Interface – Medium/High-Voltage Breaker Feedback – Tracks auxiliary contact transitions to analyze breaker trip sequences.
- Safety Instrumented Systems (SIS) – Emergency Shutdown (ESD) Logging – Records permissive contact drops across critical process valves.
The control technician hot-swapped the faulty module with a bench-tested 5X00121G01 surplus unit. The new module instantly resynchronized its internal clock with the Ovation controller backplane time master, restoring 1-ms event recording capability across all 16 channels without disturbing surrounding I/O modules.

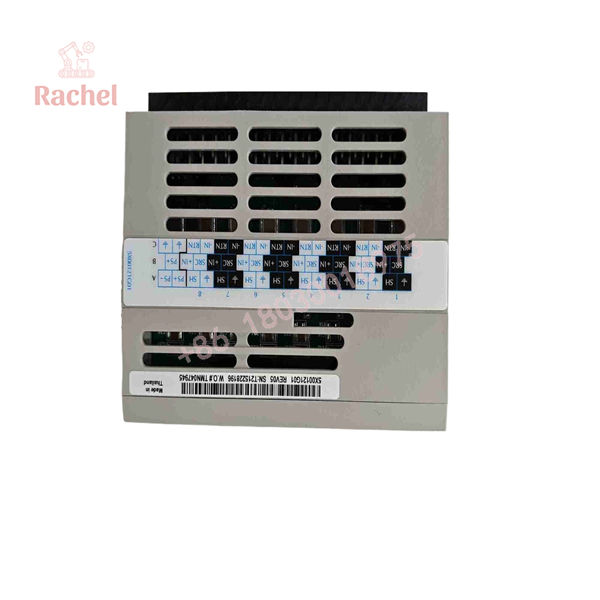

5X00121G01

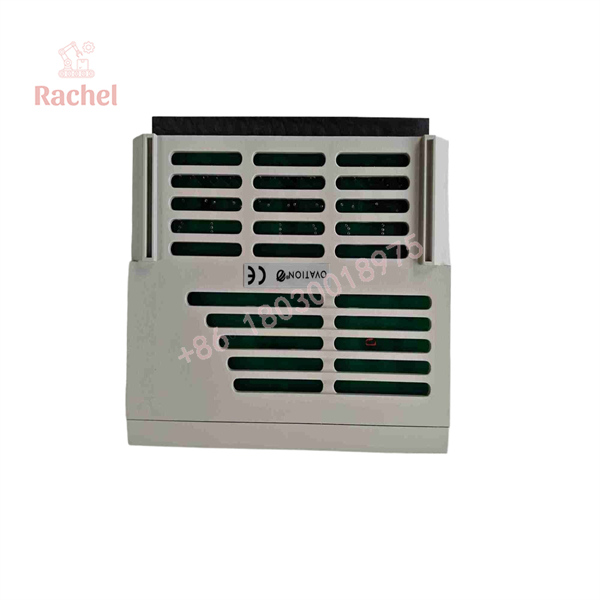

5X00121G01
Transparency SOP: Quality Assurance & Testing
We do not just ship modules; we test them on live Emerson Ovation controller test racks. Every 5X00121G01 electronic module undergoes the following verification process:
- Inbound Visual & Pin Inspection: Checking all rear backplane connectors, guide rails, and locking tabs for thermal discoloration or mechanical wear.
- Dielectric Isolation Testing: Verifying 1000V isolation between logic bus lines, power rails, and field input channels.
- 16-Channel High-Speed Switching Test: Applying rapid 24VDC step transitions across all 16 channels to confirm discrete state detection.
- 1-Millisecond Timestamp Precision Verification: Injecting time-synced pulse trains using a pulse generator to verify 1-ms resolution logging in the Ovation SOE buffer.
- ESD Protective Packaging: Sealing the module inside anti-static ESD bags and packing it within custom shock-absorbing foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do Not Confuse SOE Cards with Standard Digital Input Cards: The 5X00121G01 is an SOE module specifically designed for high-speed timestamping. Replacing it with a standard Ovation digital input card (like the 1C31107G01) will cause software point configuration mismatches in Ovation Developer Studio and lose sub-scan event resolution.
- ❗ Verify Network Time Protocol (NTP) Synchronization: SOE accuracy relies on the Ovation controller’s master clock. If your controller time master is out of sync or missing NTP updates, the card’s internal 1-ms timestamps will be accurate relative to each channel, but absolute time alignment across multiple racks will drift.
- ⚠️ Check Contact Chatter / Debounce Settings: High-speed 1-ms inputs are sensitive to noisy mechanical contacts. Ensure debounce settings in the Ovation software point configuration are set correctly to prevent buffer overflow from relay contact chatter.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the 5X00121G01 support 120VAC digital inputs?
A: No. This specific module is designed for 24VDC input signals/dry contacts. For 120VAC digital inputs, a dedicated AC digital input module with appropriate interposing relays or terminal filtering is required.
Q: Can I hot-swap this SOE module while the Ovation system is running?
A: Yes. Ovation I/O modules support online hot-swapping. Disengage the module side latches and pull the unit straight out from its base terminal housing.
Q: What LED indications are visible on the front panel?
A: The front panel features status LEDs displaying Module Health/Power (Green), Backplane Communication (Green), Fault State (Red), and individual channel input status indicators.
Q: Is a matching personality module required for operation?
A: Yes. The 5X00121G01 is the active electronic module. It mounts on an Ovation I/O base unit fitted with the corresponding personality module (such as the 5X00122G01) containing field termination blocks and protection fuses.
Q: What warranty comes with this surplus Ovation module?
A: Every new surplus and rig-tested 5X00121G01 electronic module is backed by our full 12-month replacement warranty.
