Description
Product Introduction & Engineering Value
The Emerson Ovation 5X00170G01 is a HART High Performance Analog Output Personality Module used with Ovation analog output assemblies. It provides the field connection interface required for high-performance 4–20 mA output applications, allowing control signals to reach HART-compatible field devices.
In power generation and process plants, this module is commonly installed in actuator, valve positioning, and control loop applications where analog output reliability directly affects equipment operation. The replacement process requires verifying the paired electronics module, terminal configuration, and existing Ovation I/O database settings.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Platform | Ovation DCS |
| Part Number | 5X00170G01 |
| Module Type | HART High Performance Analog Output Personality Module |
| Module Role | PMOD / Field Interface Module |
| Output Channels | 8 channels |
| Signal Type | 4–20 mA analog output |
| Communication Protocol | HART |
| Compatible Electronics Module | 5X00167G01 |
| Field Interface | Analog output terminal interface |
| Output Application | Actuator and smart field device control |
| Installation Method | Ovation I/O rack / base unit mounting |
| Diagnostics Support | Used with Ovation module diagnostics |
| Protection Function | Field interface and connection support |
| Environment | Industrial process control systems |
Field Application & The “Trench” Experience
A utility plant experienced a control issue on several steam bypass valves. Operators reported that valve commands were being generated correctly from the Ovation controller, but field actuators were not responding consistently.
The maintenance team initially checked the actuator positioners and instrument air supply. Field devices passed local inspection. The troubleshooting path moved upstream to the DCS I/O hardware, where technicians identified a problem in the analog output interface assembly.
A replacement 5X00170G01 personality module was installed together with the existing compatible HART analog output electronics module. After loop testing and HART communication verification, the valve control signals returned to normal operation.
The field lesson: analog output failures are not always caused by the controller or field device. The PMOD, terminal interface, wiring, and EMOD all form part of the signal path.
Typical application scenarios:
- Steam turbine control valve positioning
- Boiler combustion actuator regulation
- Feedwater control valve output loops
- Process skid smart valve command systems

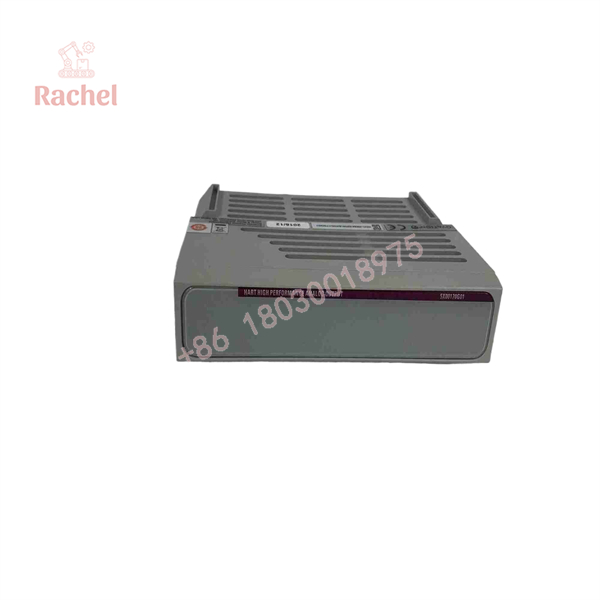

5X00170G01

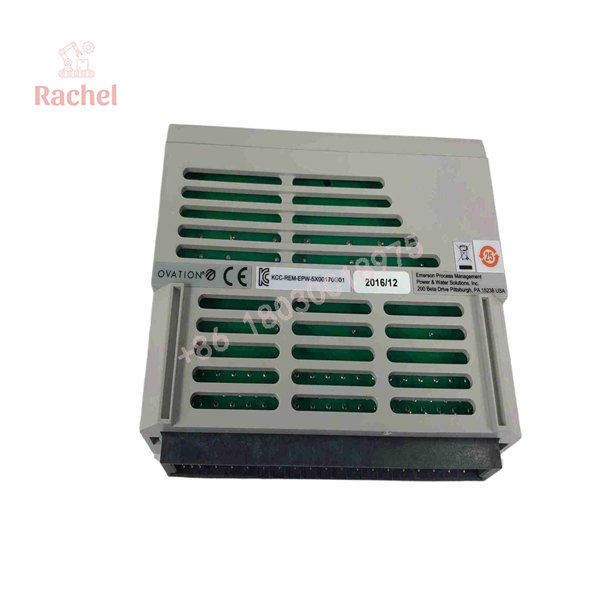

5X00170G01
Transparency SOP: QA & Testing
Personality modules are often overlooked during testing because they contain less active electronics than EMOD assemblies. They still require verification.
Quality inspection sequence:
1. Identification Verification
- Confirm Emerson Ovation marking.
- Verify exact model: 5X00170G01.
- Check terminal labeling and connector condition.
2. Physical Inspection
- Inspect terminal blocks.
- Check for corrosion or overheating marks.
- Verify mounting clips and mechanical integrity.
3. Electrical Testing
- Verify field connection continuity.
- Check output path integrity.
- Inspect protection components.
4. System-Level Validation
- Install with compatible 5X00167G01 electronics module.
- Simulate 4–20 mA output loops.
- Verify HART device communication.
- Confirm channel operation.
5. Documentation
- Record serial number.
- Store test results.
- Assign inventory classification:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing 5X00170G01 With the Electronics Module
The 5X00170G01 is a Personality Module (PMOD).
The complete HART analog output assembly requires the correct electronics module:
- 5X00167G01 → Electronics Module (EMOD)
- 5X00170G01 → Personality Module (PMOD)
Installing only one component will not create a complete functioning output channel.
⚠️ Trap #2: Assuming Any Ovation Analog Output PMOD Will Work
Ovation analog output modules vary by:
- Channel count
- HART capability
- Output type
- Current limiting requirements
PRO TIP: Match the PMOD part number exactly with the installed EMOD and I/O database configuration.
⚠️ Trap #3: Skipping Field Loop Testing
A replacement module may pass bench inspection but fail after installation because of external loop issues.
Verify:
- Actuator resistance
- Field wiring polarity
- Loop power source
- HART communication stability
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00170G01 used for?
The 5X00170G01 is an Ovation HART High Performance Analog Output Personality Module used to provide the field interface for 4–20 mA output applications.
Q2. Is the 5X00170G01 a complete analog output module?
No. It is the personality module component. A compatible electronics module, such as the 5X00167G01, is required for the complete HART analog output assembly.
Q3. How many output channels does the 5X00170G01 support?
The module supports an 8-channel HART high-performance analog output configuration.
Q4. What signal type does the 5X00170G01 handle?
It is designed for 4–20 mA analog output loops with HART communication capability for compatible field devices.
Q5. What should buyers verify before purchasing a New Surplus 5X00170G01?
Recommended checks:
- Correct Ovation part number
- PMOD/EMOD compatibility
- Terminal condition
- Output loop testing records
- HART application requirements
- Warranty coverage
Q6. Is refurbished 5X00170G01 suitable for critical DCS spare inventory?
Yes, when the module has passed physical inspection, continuity testing, and system-level verification with the correct Ovation electronics module. For facilities operating legacy Ovation systems, tested PMOD spares can shorten recovery time during analog output failures.
