Product Introduction & Engineering Value
A DCS power failure does not always start at the main power supply. In many Ovation installations, the power distribution stage is the point where multiple control modules depend on stable DC delivery. The Emerson 5X00489G01 Power Distribution Module manages regulated power distribution within Ovation control architectures, supporting reliable operation of controllers and I/O hardware.
For power plants and continuous process facilities, this module is a critical infrastructure component rather than a simple accessory. A failed PDM can remove power from multiple downstream devices at once. Maintaining a tested spare helps maintenance teams isolate failures faster and restore control system availability.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson Process Management |
| Product Series | Ovation |
| Part Number | 5X00489G01 |
| Module Type | Power Distribution Module |
| Alternate Part Number | 1P00159G01 |
| Input Voltage Range | 85–264 VAC / 90–375 VDC |
| Nominal Input | 100–240 VAC |
| Output Voltage | 24 VDC adjustable |
| Output Current | Up to 40 A total (configuration dependent) |
| Output Ripple | Less than 50 mVpp typical |
| Efficiency | Greater than 90% typical |
| Power Factor Correction | Active PFC |
| Protection | Overvoltage and overload protection |
| Redundancy Support | Yes |
| Mounting | Control cabinet / Ovation power assembly |
| Operating Environment | Industrial automation and power generation facilities |
Field Application & The “Trench” Experience
A generating station operating an Emerson Ovation control system experienced unexpected controller cabinet resets during peak operating periods. The event appeared random because individual I/O modules reported communication faults before recovering.
The maintenance team initially investigated controller hardware and network communication. However, voltage measurements showed intermittent instability on the cabinet DC distribution path. After isolating the power assembly, engineers identified the Power Distribution Module as the failure point.
A replacement 5X00489G01 was installed, followed by output voltage verification, controller restart testing, and I/O communication checks. The cabinet returned to stable operation without replacing downstream control modules.
The field lesson: power distribution faults often create secondary alarms. A module failure may look like a controller or communication issue.
Typical application scenarios:
- Ovation turbine control cabinets
- Boiler control system power distribution
- Remote I/O cabinet DC power management
- Critical process control panels requiring redundant DC feeds

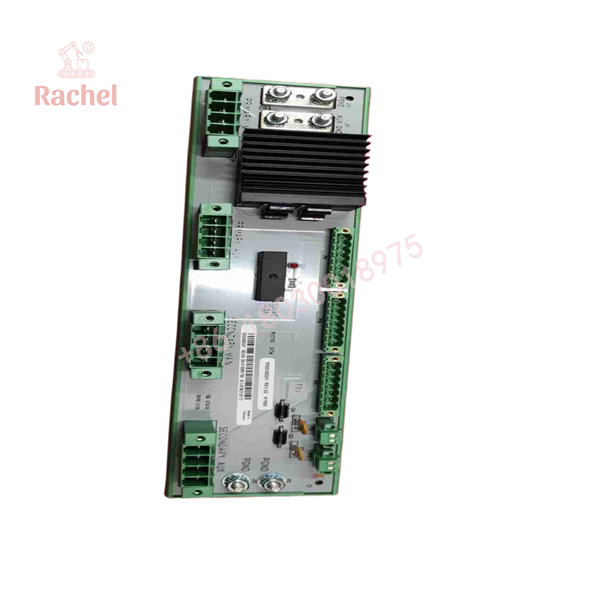

5X00489G01

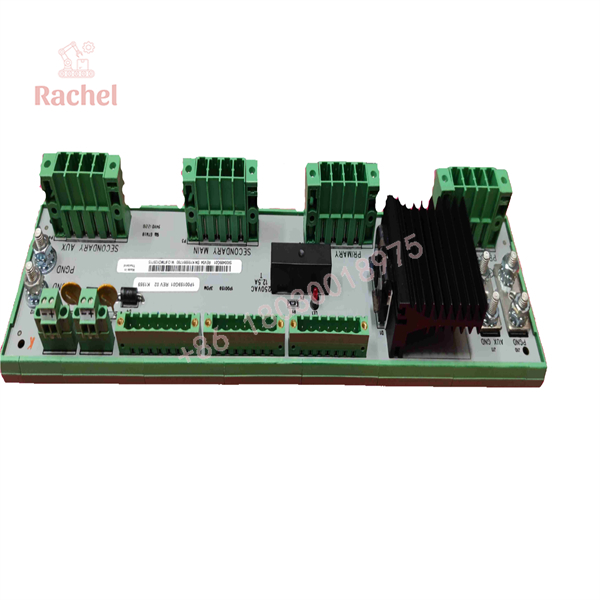

5X00489G01
Transparency SOP: QA & Testing
Power distribution modules require electrical load verification before entering spare inventory.
Testing sequence:
1. Identification and Condition Review
- Confirm Emerson Ovation marking.
- Verify part number: 5X00489G01.
- Inspect enclosure and terminal connections.
2. Input Power Testing
- Apply AC/DC input within rated range.
- Verify startup behavior.
- Check input protection operation.
3. Output Verification
- Measure 24 VDC output.
- Confirm voltage regulation.
- Check ripple under load conditions.
4. Protection Testing
- Verify overload response.
- Confirm overvoltage protection behavior.
- Check redundant feed functionality when applicable.
5. Final Documentation
- Record serial number.
- Store electrical test results.
- Assign inventory status:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Treating a Power Distribution Module Like a Standard Power Supply
The 5X00489G01 is not simply a standalone AC/DC converter.
It is part of the Ovation power architecture.
Verify:
- Compatible power assembly
- Cabinet wiring arrangement
- Redundant supply configuration
- Output distribution requirements
⚠️ Trap #2: Ignoring Downstream Loads
A replacement PDM may appear healthy with no load but fail under actual cabinet conditions.
PRO TIP: Test with representative loads whenever possible.
Check:
- Controller chassis current demand
- I/O rack loading
- Field loop power requirements
- Auxiliary devices
⚠️ Trap #3: Replacing the Module Without Checking Input Quality
A damaged PDM may be a symptom of upstream problems.
Inspect:
- AC supply stability
- DC backup system
- Cabinet grounding
- Surge protection
Repeated failures usually indicate a power quality issue, not only a bad module.
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00489G01 used for?
The 5X00489G01 is an Emerson Ovation Power Distribution Module used to distribute regulated DC power within Ovation control system cabinets.
Q2. Is the 5X00489G01 a controller or I/O module?
No. It is a power infrastructure component. It does not execute control logic or process field signals. Its purpose is power distribution for Ovation system equipment.
Q3. What input voltage does the 5X00489G01 support?
The module supports wide-range input power, including approximately 85–264 VAC and 90–375 VDC input ranges depending on configuration.
Q4. What output does the 5X00489G01 provide?
The module provides regulated 24 VDC power distribution for Ovation control components.
Q5. What should buyers verify before purchasing a New Surplus 5X00489G01?
Recommended checks:
- Exact Emerson part number
- Revision level
- Terminal condition
- Input/output electrical test records
- Compatibility with installed Ovation power architecture
- Warranty coverage
Q6. Is refurbished 5X00489G01 suitable for critical DCS spare inventory?
Yes, provided the unit has passed input, output, protection, and load testing. For Ovation installations, a verified spare PDM can significantly reduce downtime caused by cabinet power distribution failures.
