Description
Core Product Summary
The EMG ECU01 (along with variant ECU01.5) is a compact digital electronic control unit and operator panel developed by EMG Automation. Operating as a core processing node in strip guiding and strip position regulation systems, the unit receives feedback signals from optical, inductive, or ultrasonic strip sensors to maintain accurate lateral alignment of moving material webs.
Designed for metal processing and continuous strip processing lines, the ECU01 processes analog and discrete sensor inputs to drive electro-hydraulic or electro-mechanical actuators. It provides local operating mode selection—such as Automatic, Manual, Center, and External—along with system status display and strip position monitoring.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Brand / Manufacturer | EMG Automation GmbH |
| Model / Series | ECU01 / ECU01.5 |
| Product Category | Digital Control Unit / Operator Control Panel |
| Operating Power Supply | 24 VDC nominal (±10% operational range) |
| Processor Architecture | 32-bit Digital Signal Processor (DSP) execution engine |
| Analog Inputs | Configurable 0–10 V / 4–20 mA channels for sensor loops |
| Digital Inputs / Outputs | Dedicated discrete lines for interlocks, mode commands, and alarms |
| Operating Modes | Automatic (Auto), Manual, Center, External Control |
| Communication Protocols | CANopen / Profibus DP options (model dependent) |
| Operating Temperature Range | 0 °C to +50 °C |
| Housing & Ingress Rating | Industrial compact enclosure, IP20 rated |
Engineering Selection Highlights
- Strip Alignment Accuracy: High-speed signal processing loops evaluate sensor inputs continuously to prevent web drift during coil processing.
- Integrated Mode Management: Direct hardware button and indicator logic allows local toggling between manual jog, center positioning, and automated line tracking.
- Multi-Sensor Compatibility: Interfaces with standard EMG strip position sensors, including optical (IMR/EVK), ultrasonic (BUS), and inductive (SMI) sensor models.
- Actuator Command Output: Provides conditioned analog and discrete output signals to control hydraulic proportional valves or servo motor drives.
- Diagnostic System Monitoring: Features internal circuit and interlock monitoring, providing immediate “Strip Position OK” and system status signals to line PLCs.
Detailed Product Overview
The EMG ECU01 (and variant ECU01.5) is an electronic control unit built for strip position control in processing industries. Manufactured by EMG Automation, the unit combines sensor signal conditioning, control loop processing, and user mode control into a single industrial module.
Engineered around a 32-bit digital signal processor (DSP), the ECU01 processes incoming signals from strip edge or center sensors with sub-millisecond loop update rates. The controller supports multiple operating modes—including center position alignment, edge guiding, and manual jog operations—allowing operators to control web positioning during coil threading or high-speed processing. With options for serial fieldbus connectivity (such as CANopen or Profibus) alongside conventional analog and 24 VDC discrete interfaces, the ECU01 integrates into broader plant automation architectures.

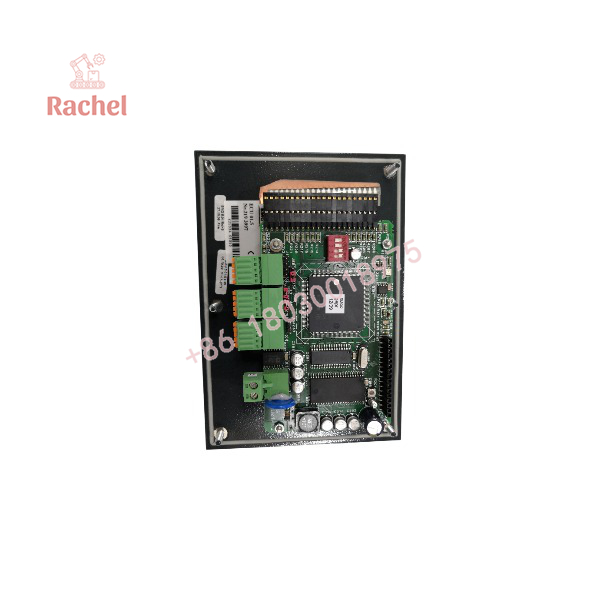

ECU01

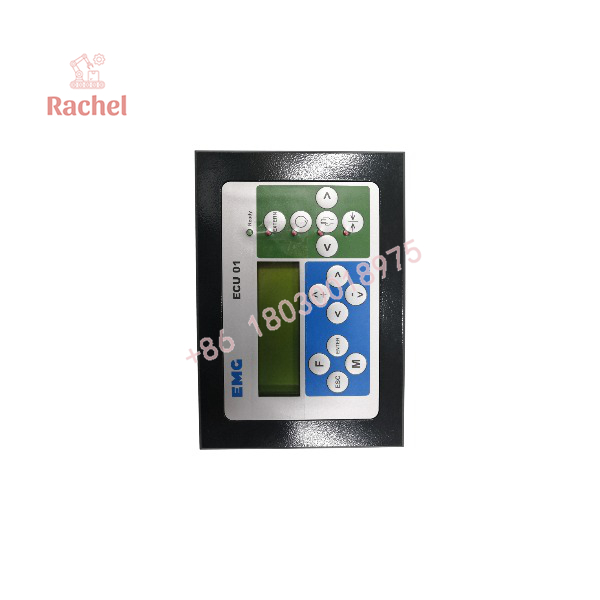

ECU01
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Strip Guiding Actuators | EMG Electro-hydraulic servo valves / Electro-mechanical linear actuators | Translates deviation signals into directional flow or drive movement commands. |
| Position Sensors | EMG Ultrasonic (BUS), Optical/Infrared (EVK/IMR), or Inductive (SMI) sensors | Sensor type must match internal jumper or software channel settings. |
| Main Line Controller | Fieldbus (Profibus/CANopen) or discrete 24V I/O link to plant PLC | Allows remote automatic/manual mode switching and line interlock monitoring. |
| Power Supply | Regulated 24 VDC industrial power source | Ensure adequate current margin to support field sensor excitation loops. |
Dimensions, Mounting & Connection Notes
- Installation Profile: Compact panel or rack-mounting profile designed for insertion into local strip-guiding operator desks or cabinet doors.
- Connection Layout: Plug-in screw terminal blocks positioned at the housing rear accept power, sensor, fieldbus, and valve driver lines.
- Panel Ingress Protection: IP20 rating across the rear housing; requires installation within a NEMA/IP-rated control enclosure for harsh washdown or dusty mill environments.
Applications & System Role
The EMG ECU01 occupies the central processing layer within automated strip guiding networks. Positioned at uncoilers, recoilers, strip edge control points, and steering frames, it evaluates continuous optical or inductive feedback against programmed setpoints.
The unit calculates error offsets and outputs corrective control signals to electro-hydraulic steering frames or linear drives. It is deployed in continuous cold rolling mills, coil slitting lines, pickling lines, galvanizing lines, and metal strip rewinding stations.
FAQ
What is the main function of the EMG ECU01?
The ECU01 is a digital control unit used in EMG strip guiding systems to regulate and align moving metal sheets or webs during coil processing.
What are the differences between the ECU01 and ECU01.5 variants?
The ECU01.5 represents a hardware/firmware revision within the ECU01 series, offering updated signal processing speeds, protocol support, and internal diagnostics while maintaining the same application role.
What operating modes does the ECU01 support?
It supports Automatic mode (continuous strip tracking), Manual mode (manual actuator positioning), Center mode (centering steering frames), and External control mode.
What sensor types can be connected to the ECU01?
It accepts analog inputs from EMG optical, infrared, ultrasonic, and inductive strip edge or center position sensors.
What power supply is required for the ECU01?
The unit operates on a standard nominal 24 VDC power supply.
