Core Product Summary
The EtherWAN EMC1600 is a 16-bay rack-mount chassis designed to house, power, and centralize compatible EtherWAN media converters and Ethernet extenders within standard telecommunications and network control rooms. Built into a durable 2U, 19-inch metal enclosure, the system organizes disparate fiber-optic and copper connections while streamlining power distribution.
Engineered for continuous industrial and commercial environments, the chassis features dual internal power supplies that support load sharing and power redundancy. Each of the 16 bays is electrically isolated and protected with fused overcurrent protection to prevent fault propagation across modules. The hot-swappable architecture allows technicians to add, remove, or replace modules without interrupting active network communications.
Key Technical Specifications
| Specification | Verified Value / Parameter |
| Brand / Series | EtherWAN / EMC1600 Series |
| Product Type | 16-Bay Media Converter and Ethernet Extender Chassis |
| Capacity | Up to 16 compatible EtherWAN modules |
| Power Input | 100–240VAC, 50–60Hz (Internal Universal PSU) |
| Redundant Power Supply | Included dual internal power supplies (Load sharing / Redundancy) |
| System Power Consumption | 5.4W maximum (installed device power requirements are additional) |
| Bay Protection | Electrically isolated bays with individual fused overcurrent protection |
| Alarm Relay Output | 30VDC / 0.6A |
| Enclosure Material | Solid metal casing |
| Dimensions (W x D x H) | 440mm x 276mm x 90mm (17.32″ x 10.87″ x 3.54″) |
| Form Factor | Standard 19-inch rack-mount, 2U height |
| Weight | 6.8 kg (14.96 lbs) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Regulatory Approvals | UL 60950-1, CE Class A, FCC Part 15B Class A |
Detailed Product Overview
The EtherWAN EMC1600 provides a consolidated infrastructure solution for control rooms, communication closets, and large-scale surveillance networks requiring multiple conversion points. By housing up to 16 individual media converters or Ethernet extenders in a single rack space, the chassis eliminates messy standalone power bricks and messy wiring tangles.
Reliability is a core focus of the EMC1600 architecture. Each slot is electrically isolated, ensuring that an electrical fault or short circuit in a single module or its tray does not impact neighboring units. Dual internal power supplies provide active load sharing and seamless redundancy, meaning the system continues uninterrupted operation if one power path fails. Network administrators can hot-swap modules via dedicated sliding holding trays, minimizing maintenance downtime.
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Measures 440mm (W) x 276mm (D) x 90mm (H) / 17.32″ x 10.87″ x 3.54″.
- Rack Installation: Standard 19-inch 2U rack-mount installation using the provided side mounting brackets and screws.
- Cooling & Ventilation: Ensure side ventilation holes and internal exhaust paths remain unobstructed to maintain an operating environment between 0°C and 45°C.
- Module Insertion: Each module must be fitted into its dedicated slide-in holding tray and secured with its retaining screw to ensure correct physical alignment and electrical isolation.

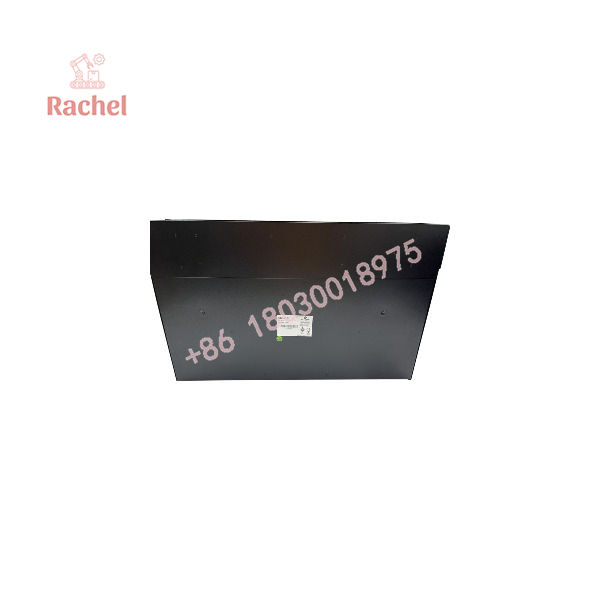

EMC1600

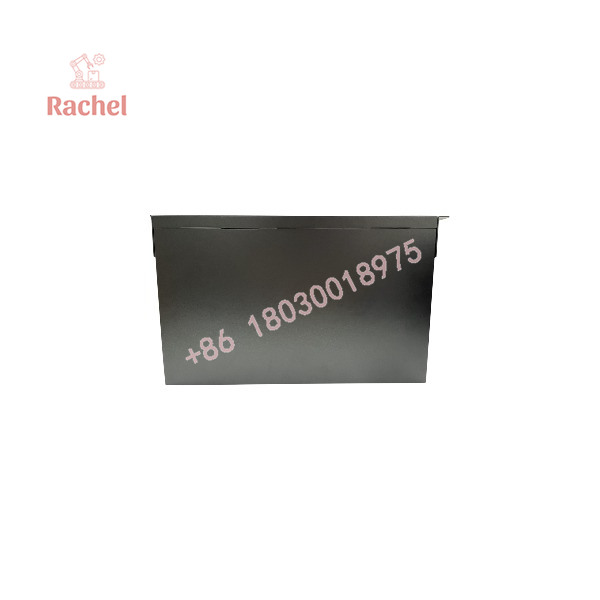

EMC1600
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Enclosure Standard | EIA 19-inch standard equipment rack | Occupies 2 rack units (2U) of vertical space |
| Supported Series | Select EtherWAN media converters and Ethernet extenders (including EL100/EL200, EL2211, EL2315, EL2321, EM120, and ED3501 series) | Must verify exact module compatibility prior to deployment |
| Mounting Trays | Required individual slide-in holding trays | Modules must not be inserted directly without their designated holding trays for proper electrical insulation |
| AC Power Supply | 100–240VAC source | Requires standard grounded AC receptacles |
| Alarm Monitoring | External alarm signaling relay (30VDC/0.6A) | Can be wired to facility management or PLC alarm inputs |
FAQ
What is the EtherWAN EMC1600?
The EtherWAN EMC1600 is a 16-bay rack-mount chassis designed to house, power, and centralize compatible EtherWAN media converters and Ethernet extenders.
How many modules can the EMC1600 house?
The chassis accommodates up to 16 compatible modules in electrically isolated, individually protected slots.
Does the chassis support power redundancy?
Yes, it includes dual internal power supplies that support load sharing and seamless power redundancy.
Can modules be hot-swapped while the chassis is powered?
Yes, the hot-swappable design allows technicians to insert, remove, or replace supported media converters and extenders without shutting down the entire chassis or interrupting active communications.
What power supply input does it require?
The internal universal power supply supports 100 to 240 VAC at 50–60Hz.
What rack space does the unit occupy?
It is designed for standard 19-inch equipment racks and occupies 2 rack units (2U) of vertical space.
Documented Performance Data
| Metric | Value / Range | Operating Condition |
| Chassis Power Consumption | 5.4 W maximum | System baseline draw (excluding installed module loads) |
| Alarm Relay Rating | 30VDC / 0.6A | External fault notification loop limit |
| Operating Temperature | 0 to 45°C (32 to 113°F) | Commercial environment rating |
| Relative Humidity | 5% to 95% | Non-condensing environment limits |
