Description
Core Product Summary
The EtherWAN EMC400 is a four-slot DIN-rail chassis designed to house and power selected EtherWAN media converters and Ethernet extenders. It supports mixed media-conversion configurations within an industrial or commercial network installation, allowing compatible devices to be organized in a single chassis.

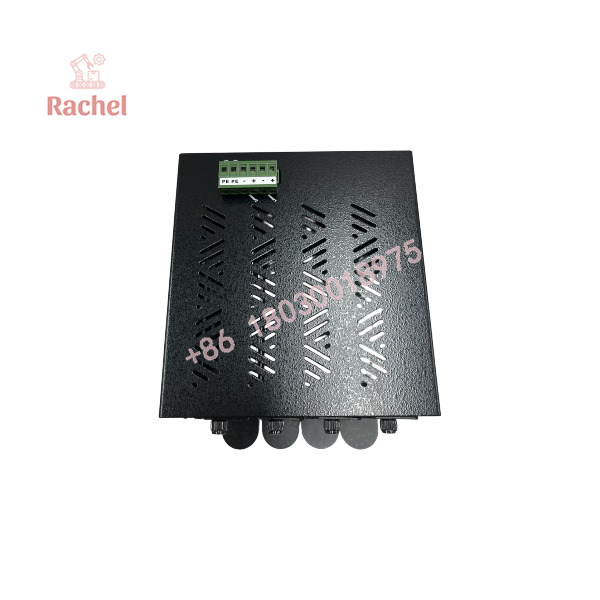

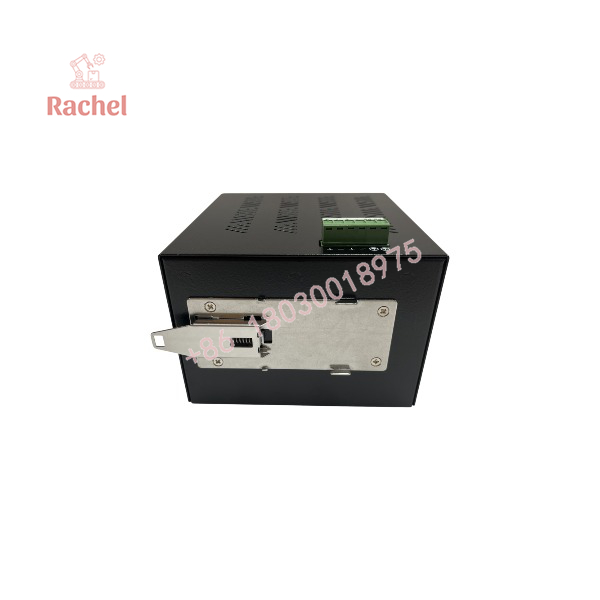

The chassis provides dual terminal-block power inputs, electrical isolation between installed devices, and fused overcurrent protection. Its hot-swap design supports installation of selected compatible media converters and extenders without interrupting existing communications, subject to the device and installation conditions. The chassis uses a metal enclosure and DIN-rail mounting, with an optional wall-mounting arrangement available through the appropriate kit.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | EtherWAN |
| Product series | EMC400 Series |
| Verified chassis model | EMC400 |
| Product type | Four-slot media converter chassis |
| Installation | DIN rail |
| Supported devices | Selected EtherWAN media converters and Ethernet extenders |
| Chassis power input | 12 VDC |
| Power inputs | Dual terminal-block inputs |
| Maximum power consumption | 19 W at full installation, depending on installed devices |
| Protection | Fused overcurrent protection |
| Enclosure material | Electrogalvanized cold-rolled steel (SECC) |
| Dimensions (W × D × H) | 130 × 164 × 92.1 mm |
| Weight | 1.37 kg |
| Operating temperature | 0 to 45°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5–95%, non-condensing |
| Power indicators | Power 1 and Power 2 status LEDs |
Engineering Selection Highlights
- Four-slot chassis: Provides space for four compatible media-conversion devices.
- Redundant power inputs: Two terminal-block inputs allow separate power connections, subject to the power-system design.
- Device compatibility: Only supported EtherWAN media converters and extenders should be selected for installation.
- Hot-swap installation: Supports installation of selected devices without interrupting existing communications, within the documented operating conditions.
- DIN-rail mounting: Fits control-panel layouts designed for DIN-rail equipment.
- 12 VDC chassis input: The supply arrangement must match the chassis input requirement.
- Temperature limits: The documented 0 to 45°C operating range should be considered when selecting a cabinet location.
System Compatibility & Integration Requirements
| Item | Verified requirement | Practical note |
|---|---|---|
| Installed devices | Selected EtherWAN media converters and Ethernet extenders | Check the exact device model against the supported-device list. |
| Chassis power | 12 VDC | Confirm the supply output and wiring requirements. |
| Redundant power | Dual terminal-block inputs | Plan separate power connections as required by the installation design. |
| Mounting | DIN rail; wall-mount kit where applicable | Allow room for device installation and cable routing. |
| Device replacement | Hot-swap support for selected compatible devices | Confirm the installed device and network configuration support the intended procedure. |
EMC400-EPW
EMC400-EPW
Detailed Product Overview
The EtherWAN EMC400 Series four-slot chassis is designed for network installations that use multiple media converters or Ethernet extenders. Rather than providing Ethernet switching itself, the chassis accommodates selected compatible devices and supplies their required chassis power.
Its four-slot design supports a combination of compatible media converters and extenders, enabling an installation to accommodate different network media within one DIN-rail assembly. Actual functionality depends on the individual devices installed; the chassis does not make unsupported converters compatible.
The dual terminal-block power inputs support a redundant power arrangement. The chassis uses a 12 VDC input, and the specified maximum power consumption is 19 W at full installation, depending on the installed devices. Power supply sizing should account for the complete installed configuration.
Hot-swap capability supports installation of selected compatible devices without interrupting existing communications. The precise procedure should follow the documentation for both the chassis and the device being installed. The metal enclosure and DIN-rail mounting support panel installation, while the specified operating temperature range of 0 to 45°C defines an important environmental constraint.
The chassis is suited to applications where several media-conversion functions must be organized in a compact assembly. Before ordering, confirm the exact model code, the supported converter or extender models, the required power supplies, and the mounting arrangement.
Applications & System Role
The EMC400 chassis serves as a physical and power platform for compatible Ethernet media converters and extenders. It is useful when a network installation requires multiple media-conversion devices to be grouped in one DIN-rail assembly.
By consolidating the devices, the chassis helps organize connections between Ethernet equipment and different transmission media supported by the installed converters. Its dual power inputs provide an option for redundant power arrangements, while the overcurrent protection and electrical isolation help separate installed-device power circuits.
FAQ
What is the EtherWAN EMC400?
The EMC400 is a four-slot DIN-rail media converter chassis for selected EtherWAN media converters and Ethernet extenders.
How many devices can it accommodate?
The chassis has four slots for compatible media converters or Ethernet extenders.
Does the EMC400 support redundant power?
Yes. It has dual terminal-block power inputs for a redundant power arrangement.
What power input does the chassis require?
The specified chassis input is 12 VDC.
Does the chassis support hot swapping?
It supports hot-swap installation of selected compatible media converters and Ethernet extenders.
What are its dimensions and operating temperature?
The chassis measures 130 × 164 × 92.1 mm (W × D × H), weighs 1.37 kg, and has a documented operating temperature range of 0 to 45°C.
Does the EMC400-EPW include power supplies?
The manufacturer’s published ordering information identifies EMC400-EPWS as the variant packaged with two HDR-30-12 power supplies. The listed model does not specify those supplies as included. The exact -EPW designation remains unresolved.
