FANUC A03B-0819-C152 AID08D 8-Point Input Module

Description

Product Introduction

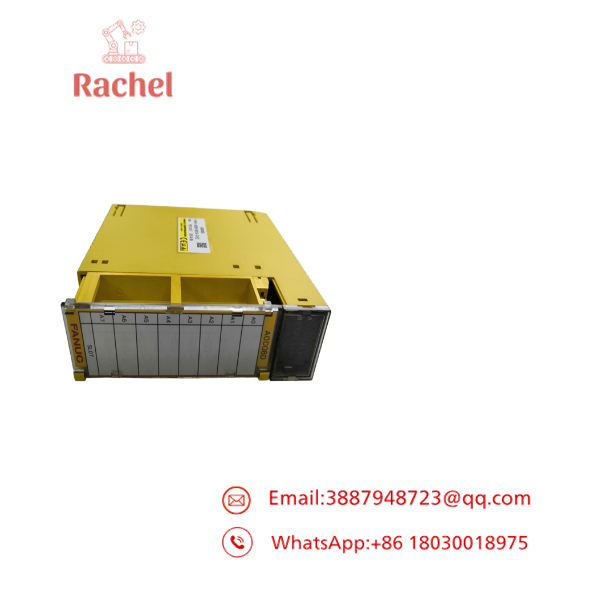

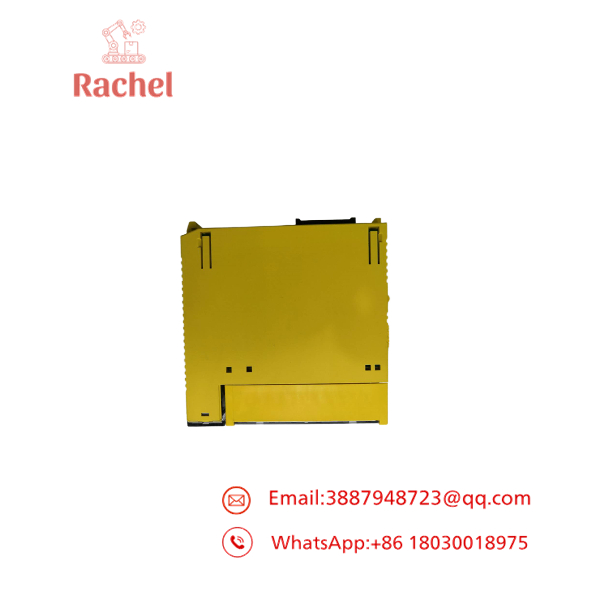

The FANUC A03B-0819-C152 (Type AID08D) is an 8-point digital DC input module operating within the modular FANUC I/O Unit Model B ecosystem. Used extensively across FANUC 0i-MC/TD, 16i/18i/21i, and 30i Series CNC control racks, this compact module routes discrete field signals—such as proximity sensors, interlock switches, and operator pushbuttons—directly into the PMC ladder logic.

Engineered for quick installation and minimal panel footprint, the AID08D features optical isolation on all 8 channels to safeguard the central CNC CPU from field noise and voltage transients. Its plug-and-play backplane interface connects directly to standard FANUC I/O backplane bases, allowing rapid field replacement and effortless I/O rack expansion.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a high-speed production run on a CNC turning center, the operator station repeatedly lost door-interlock confirmation, halting the auto-cycle with a PMC door alarm. Diagnostics confirmed that a short circuit in a flooded door switch had over-stressed channel 3 on the original input card. Replacing the faulty module with an AID08D (A03B-0819-C152) restored input signal processing immediately, preserving the rest of the PMC rack thanks to the module’s onboard optocoupler isolation.

• CNC Lathes & Machining Centers – Monitors door safety interlocks, tool setter switches, and hydraulic pressure confirmations.
• Automated Pallet Changers – Evaluates clamp/unclamp status switches and index position sensors.
• Custom Machine Operator Panels – Interfaces pushbuttons, selector switches, and foot pedals to PMC logic.

Transparency SOP: Quality Assurance & Testing

1. Housing & Backplane Pin Inspection: Yellow shell tabs, terminal strip contacts, and multi-pin backplane connectors are inspected under magnification for bent pins or plastic cracking.
2. Backplane Bus Handshake Test: The module is installed into an active FANUC I/O Model B rack connected to a 0i-D test bench to confirm backplane address recognition.
3. 8-Channel Signal Sweep: Each of the 8 input points is triggered with a calibrated 24 VDC source to verify optocoupler switching thresholds and PMC ladder status updates.
4. ESD Protection & Packaging: Verified boards are cleaned, enclosed in static-shielding bags, and packed with shock-absorbing foam.

A03B-0819-C152

A03B-0819-C152

The Veteran’s Tech Trap Guide

• ⚠️ Confirm common power wiring (Sink vs. Source). Verify whether your external sensor wiring uses 0V common or +24V common before energizing the module. Wiring incorrect polarity across the input terminals will prevent optocouplers from conducting.
• ❗ Seat the module firmly onto the base plate. Ensure both top and bottom plastic locking clips click securely into the I/O Model B base unit. A loose connection will cause intermittent PMC communication bus errors (e.g., “I/O LINK ERROR”).
• ⚠️ Never plug or unplug modules under power! Turn off main control power to the CNC rack before removing or inserting the A03B-0819-C152 to avoid damaging the backplane bus logic transceiver.

Frequently Asked Questions

• Q: Is the FANUC AID08D (A03B-0819-C152) hot-swappable?

  A: No. FANUC I/O Unit Model B modules are not hot-swappable. Always power down the control cabinet before replacing I/O units.

• Q: What is the difference between I/O Unit Model A and Model B?

  A: Model A uses larger terminal block assemblies and different rack form factors, whereas Model B uses compact modular plug-in blocks mounted on DIN-rail base plates. They are not physically interchangeable.

• Q: Are these original FANUC units?

  A: Yes, 100%. We only supply authentic OEM FANUC hardware, fully bench-tested and verified prior to shipping.
