Description
Product Introduction & Engineering Value
Large CNC machines depend on servo motors that can repeatedly deliver accurate positioning under acceleration, deceleration, and heavy cutting loads. The FANUC A06B-0268-B605 provides the torque capacity and feedback accuracy required for demanding axis-drive applications where motion stability directly affects machining performance.
This αiS30/4000 servo motor is commonly maintained as a replacement component for FANUC-controlled machine tools. Matching the motor with the correct servo amplifier, encoder feedback, brake wiring, and mechanical coupling is essential before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FANUC |
| Part Number | A06B-0268-B605 |
| Product Type | Three-phase AC Servo Motor |
| Series | Alpha i / αiS |
| Motor Model | αiS 30/4000 |
| Rated Output Power | 5.5 kW |
| Rated Voltage | 177 V |
| Rated Current | 19 A |
| Rated Speed | 3000 min⁻¹ |
| Maximum Speed | 4000 min⁻¹ |
| Stall Torque | 30 Nm |
| Stall Current | 31.7 A |
| Torque Constant | 0.95 Nm/A |
| Rotor Inertia | 0.00819 kg·m² |
| Feedback Device | α64iA encoder |
| Brake | Integrated 90V brake |
| Protection Rating | IP65 |
| Insulation Class | Class F |
| Weight | Approx. 29 kg with brake |
Field Application & The “Trench” Experience
A machining facility running large FANUC-controlled CNC equipment begins experiencing position deviation alarms during heavy cutting cycles. Operators notice the problem appears only when the axis performs rapid direction changes under load.
The maintenance team checks the servo amplifier, motor cables, and encoder feedback signals. After isolating the problem to the aging axis motor, they replace the unit with a tested FANUC A06B-0268-B605.
Before returning the machine to production, technicians verify:
- Motor mounting alignment
- Brake operation
- Encoder feedback recognition
- Servo amplifier parameters
- Axis reference and positioning accuracy
The experienced maintenance approach is not to replace parts blindly. A servo motor fault can originate from mechanical binding, amplifier tuning, feedback problems, or cable degradation.
Specific application scenarios
- Large CNC machining centers — driving high-load feed axes requiring accurate positioning.
- Die and mold processing equipment — maintaining repeatable axis movement during precision machining.
- Heavy machine tool applications — supporting high-torque servo motion systems.

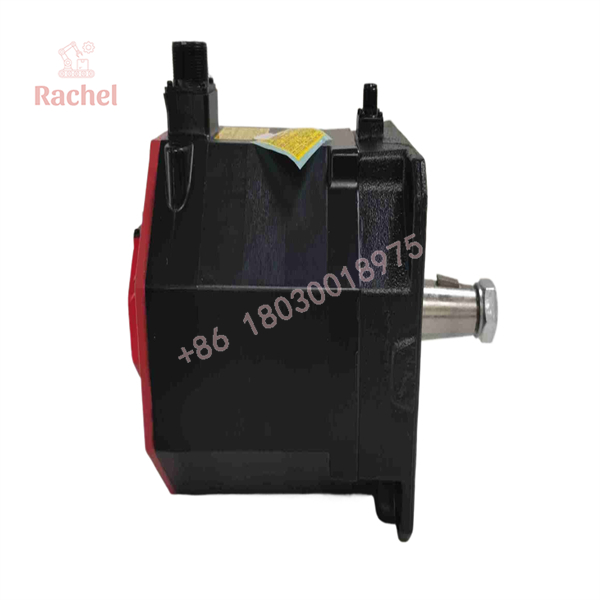

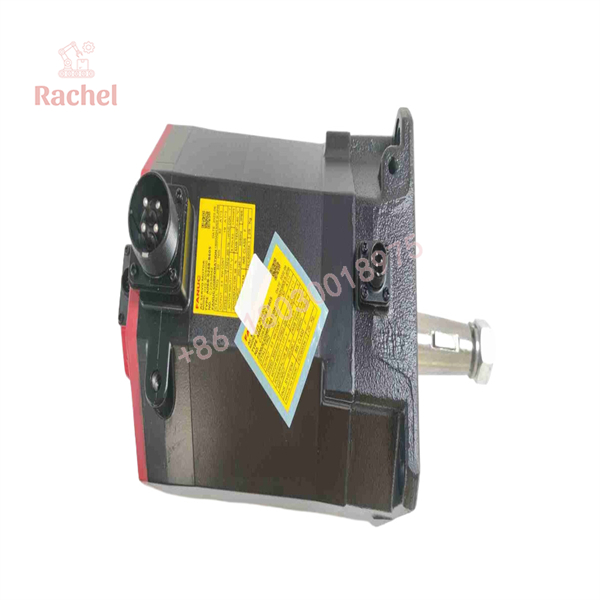

A06B-0268-B605
A06B-0268-B605
Transparency SOP: QA & Testing
For New Surplus or Refurbished A06B-0268-B605 motors, inspection should cover electrical characteristics, mechanical condition, and feedback performance.
Motor Verification Process
1. Identification Review
- Confirm FANUC label.
- Verify part number:
- A06B-0268-B605
- Record encoder and motor markings.
2. Mechanical Inspection
- Check shaft condition.
- Inspect flange mounting surfaces.
- Verify brake assembly.
- Check for impact damage.
3. Electrical Testing
- Measure winding resistance.
- Check insulation condition.
- Verify brake coil operation.
- Inspect connector condition.
4. Feedback Testing
- Verify encoder communication.
- Confirm feedback signal stability.
- Check rotation response.
5. Final Preparation
- Protect shaft surface.
- Secure connectors.
- Package using vibration protection.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Matching only the motor power rating
A 5.5 kW servo motor is not automatically interchangeable with another 5.5 kW FANUC motor.
Verify:
- αi series compatibility
- Encoder type
- Shaft design
- Brake voltage
- Amplifier matching
PRO TIP: The complete FANUC ordering code matters more than the kW rating.
⚠️ Trap #2 — Forgetting brake voltage verification
The A06B-0268-B605 includes an integrated 90V brake.
Incorrect brake wiring can cause:
- Axis release problems
- Servo alarms
- Mechanical holding failures
Always confirm brake voltage before startup.
⚠️ Trap #3 — Ignoring mechanical causes
A servo motor replacement may not solve:
- Ballscrew wear
- Coupling damage
- Axis binding
- Excessive mechanical load
Experienced technicians inspect the complete motion system before blaming the motor.
⚠️ Trap #4 — Encoder mismatch
The feedback device is part of the servo system identity. Using a similar-looking motor with a different encoder configuration may prevent proper initialization.
Dynamic FAQ
Q1: What is FANUC A06B-0268-B605?
The FANUC is an Alpha i series three-phase AC servo motor, model αiS30/4000, rated at 5.5 kW with a 90V brake and α64iA encoder feedback.
Q2: What applications use A06B-0268-B605?
This servo motor is typically used in FANUC-controlled CNC machines and industrial motion systems requiring high-accuracy axis control.
Q3: What amplifier is compatible with this motor?
Compatibility depends on the FANUC servo amplifier series, machine configuration, and parameter setup. Confirm the existing amplifier model before replacement.
Q4: Does A06B-0268-B605 include a brake?
Yes. This configuration includes an integrated 90V brake for applications requiring axis holding when power is removed.
Q5: What should be checked before buying a replacement motor?
Confirm:
- Complete FANUC part number
- Motor model
- Encoder type
- Brake specification
- Shaft configuration
- Actual nameplate photos
Q6: Is New Surplus A06B-0268-B605 unused?
New Surplus generally refers to unused industrial inventory from previous stock holdings. Buyers should verify storage condition, motor labeling, testing records, and warranty terms.
Q7: Can a refurbished FANUC A06B-0268-B605 be used in production equipment?
Yes, provided it has been properly inspected and tested. A proper refurbishment process should include electrical checks, encoder verification, brake testing, and mechanical inspection.
