FANUC A06B-0272-B605 αiS 30/4000 AC Servo Motor

Description

Product Introduction

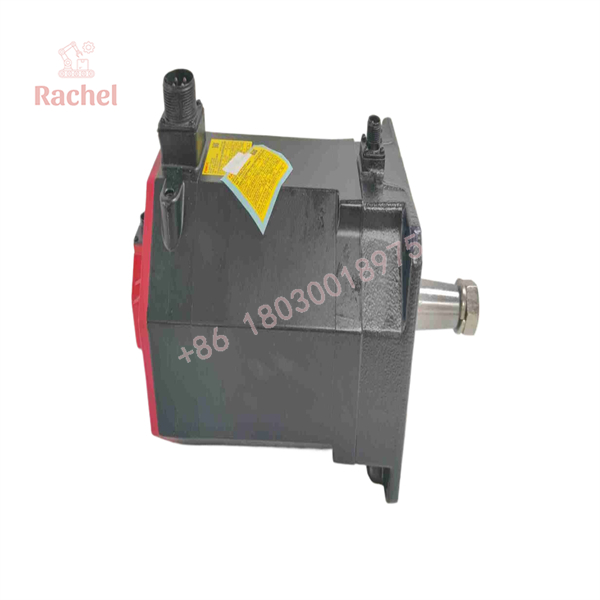

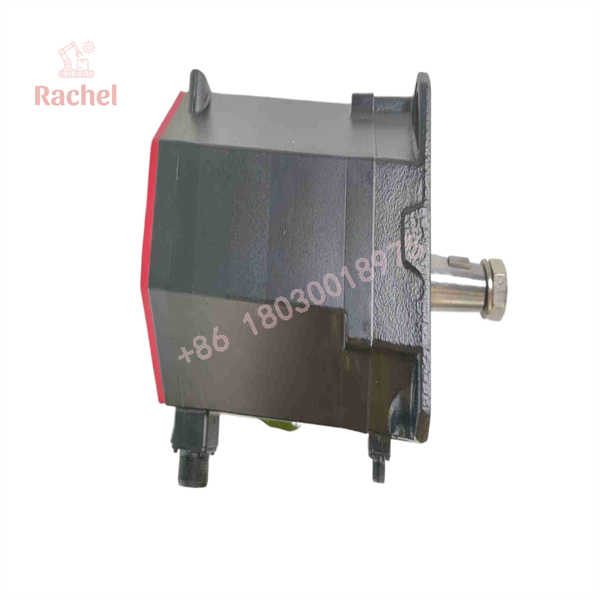

The FANUC A06B-0272-B605 is a high-performance, heavy-duty AC servo motor belonging to FANUC’s premier \alpha iS series (Model \alpha iS 30/4000). Designed specifically for heavy-duty CNC milling centers, large turning lathes, and multi-axis gantry machines, this motor pairs powerful neodymium permanent magnets with low-inertia rotor construction to deliver exceptional torque density and rapid acceleration.

Equipped with a straight output shaft, an integrated 24V DC mechanical holding brake, and a high-precision absolute pulsecoder, the A06B-0272-B605 delivers 30 Nm of continuous stall torque at speeds up to 4000 RPM. Its IP65-rated rugged enclosure and heavy-duty circular connectors shield sensitive internal stator windings and optical encoder electronics against harsh cutting fluids, chips, and workshop contaminants.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a large CNC horizontal machining center’s vertical axis motor suffers a brake failure or internal feedback fault, heavy headstocks can drop, causing tool crashes or damaging precision ball screws. The FANUC CNC controller immediately triggers a “351 SPC ALARM” or “414 SERVO ALARM” to halt operation. Installing an exact-spec FANUC A06B-0272-B605 replacement ensures immediate compatibility with matching \alpha iSV Servo Amplifiers without requiring control loop adjustments or mechanical modifications.

• Heavy-Duty CNC Machining Centers – Drives X, Y, and Z ball-screw feed axes under continuous heavy roughing and contouring cuts.
• Large CNC Lathes & Turning Centers – Powers main turret positioning, tailstocks, and heavy-duty linear cross-slides.
• Automated Transfer Lines & Gantries – Provides high-torque, synchronized positioning for multi-axis overhead gantries and robotic cell loaders.

Field Case Study

A automotive engine-block machining cell experienced intermittent “Overcurrent / Pulsecoder Communication Disconnect” alarms on the Y-axis driven by an A06B-0272-B605 motor. Fluid intrusion past a damaged connector seal had corroded the internal encoder connections, threatening weeks of production delays. A fully bench-tested surplus unit was shipped overnight. The maintenance crew swapped the motor, connected the circular military-spec plugs, performed an APZ grid zero setting, and brought the machining center back to full operational status in under an hour.

A06B-0272-B605

A06B-0272-B605

Transparency SOP: Quality Assurance & Testing

Every FANUC servo motor in our inventory undergoes testing on dedicated FANUC CNC test benches prior to stock listing.

1. Inbound Mechanical Inspection: Verify shaft runout, flange surface flatness, housing integrity, smooth bearing rotation, and connector body threads.
2. Insulation & Winding Surge Test: Perform 1000V DC Megger testing phase-to-phase and phase-to-ground, verifying matched phase resistance across all stator coils.
3. Brake Hold & Release Test: Apply 24V DC to the internal holding brake to verify crisp release torque and static mechanical holding power.
4. Closed-Loop CNC Run Test: Connect the motor to a FANUC \alpha i Servo Amplifier (\alpha iSV) and 31i/0i control setup. Execute 30-minute thermal load tests, verifying velocity feedback precision and vibration-free operation up to 4000 RPM.
5. Precision ESD Packaging: Protect the shaft with heavy-duty plastic sleeves, wrap the rear red encoder housing in shock-absorbing foam, and vacuum-seal in ESD anti-static bags before placement in custom foam-lined wooden shipping crates or heavy boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Strike the Motor Shaft or Encoder Housing: Never use a hammer or standard claw puller to force couplings or pulleys onto the shaft! The glass optical disk inside the red rear encoder cover is fragile; axial impacts will shatter the encoder disk instantly.
• ❗ Reset Reference Points (APZ Zero) After Swapping: Because this motor features an absolute pulsecoder (\alpha iA1000), replacing the motor requires setting the machine reference point (Parameter 1815 bit 4 / APZ) on the FANUC controller.
• ⚠️ Check Brake Power Supply Voltage: Verify that the 24V DC power supply feeding the internal holding brake delivers clean, regulated voltage under load. Low voltage (<20V DC) prevents complete brake release, creating excessive friction heat that can destroy stator insulation.
• ❗ Inspect Circular Connector O-Rings: Always check that the rubber sealing O-rings on the circular power and encoder plugs are intact. Missing or damaged seals allow synthetic coolants to enter the pin housing, causing short circuits and encoder fault alarms.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the “-B605” suffix indicate in the FANUC part number?

A: In FANUC nomenclature, “-B605” designates a straight (non-keyed) output shaft, an integrated 24V DC holding brake, and a standard \alpha i absolute pulsecoder.

Q: What is the primary difference between the A06B-0238 (Model 12) and A06B-0272 (Model 30)?

A: The A06B-0272-B605 is a larger frame size delivering 30 Nm of continuous stall torque compared to the 12 Nm rating of the A06B-0238-B605, making it suitable for significantly heavier axis loads.

Q: Do I need to reload machine parameters when replacing this motor?

A: No. As long as you replace the motor with the exact same part number, the motor control parameters stored in the CNC remain identical. You only need to re-perform a simple zero-point reference alignment (APZ reset).

Q: What warranty coverage comes with this surplus FANUC motor?

A: We back all clean surplus and reconditioned A06B-0272-B605 servo motors with a full 12-month operational replacement warranty.

Q: Why purchase tested surplus motors over waiting for factory lead times?

A: Factory lead times for legacy or backordered FANUC servo motors can extend to months. Installing a pre-tested, bench-verified surplus motor gets your CNC machine back into production immediately.
