FANUC A06B-6077 ALPHA Spindle Amplifier Module (SPM)

Description

Product Introduction

The FANUC A06B-6077 series encompasses the ALPHA Spindle Amplifier Modules (SPM), designed to control high-speed AC spindle motors across FANUC 0i, 16i, 18i, 21i, and 30i CNC system architectures. Functioning as part of FANUC’s modular ALPHA drive line, the SPM module receives DC bus power from a shared Power Supply Module (PSM) and converts it into precise 3-phase motor output to execute orientation, C-axis indexing, and high-torque speed regulation.

Engineered for heavy-duty metal-cutting environments, the A06B-6077 drive family utilizes internal Intelligent Power Modules (IPM) alongside high-speed optoelectronic control circuits. Front-panel 7-segment LED displays continuously broadcast drive status codes, allowing maintenance personnel to isolate overvoltage, thermal overload, or feedback errors immediately.

Common Sub-Model Variations (Power Outputs)

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a heavy roughing operation on a 4-axis horizontal machining center, the spindle drive tripped mid-cut with a “AL-12” (DC link overcurrent) alarm on the 7-segment display. Inspection showed that the cooling fan had locked up, leading to thermal degradation of the IGBT power bridge inside the original drive. Installing a bench-tested A06B-6077 module restored full 15 kW rated output and eliminated speed hunting during rigid tapping cycles.

• CNC Lathes & Turning Centers – Powers main turning spindles, supporting rapid acceleration, dynamic braking, and high-precision C-axis contouring.
• Vertical & Horizontal Milling Machines – Drives milling spindles under demanding multi-stage speed and torque demands.
• Grinding Machinery – Maintains tight surface-speed velocity control during high-load abrasive cycles.

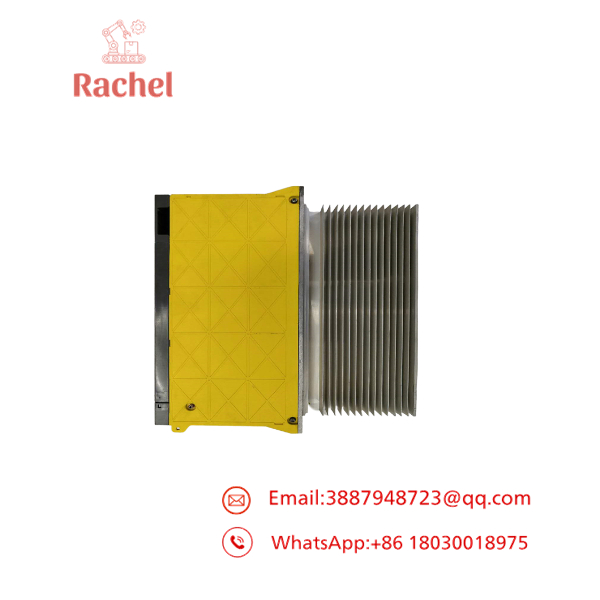

A06B-6077

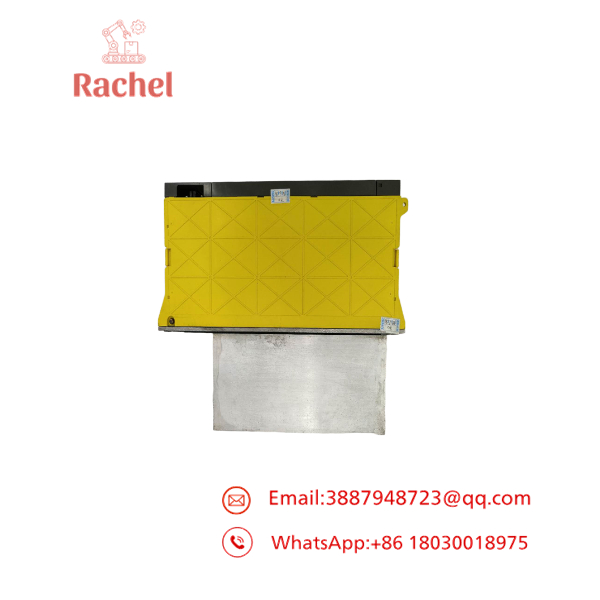

A06B-6077

Transparency SOP: Quality Assurance & Testing

1. Power Component & Capacitor Sweep: DC link capacitor banks, pre-charge relays, and IGBT transistor modules are measured for capacitance loss and junction leakage.
2. DC Bus Load Test: The module is tied into a full ALPHA drive rack (PSM + SVM + SPM) supplied with 300 VDC to test power-stage firing and pre-charge sequencing.
3. Spindle Motor Dynamometer Bench Test: The SPM is connected to an \alpha-series spindle motor and driven to max rated RPM while executing forward/reverse ramping, orientation stops, and rigid tapping sequences.
4. ESD & Protective Packaging: Cleared amplifiers are cleaned, sealed in static-shielding bags, and secured in custom foam-cushioned shipping containers.

The Veteran’s Tech Trap Guide

• ⚠️ Never unplug the DC link bus bars while powered! High-voltage DC link bars (300 VDC) store dangerous charge levels for several minutes after AC power shutoff. Always verify DC voltage across terminals drops below 50 VDC with a multimeter before touching bus hardware.
• ❗ Match control board PCB part numbers. The main control board housed inside the SPM unit (e.g., A16B-2202-0420) must match the specific sensor feedback type (MTI/HR position coders vs. standard optical encoders) used on your spindle motor.
• ⚠️ Clean heatsinks regularly. Dust and coolant mist accumulation on the external rear heatsink fins will cause thermal trips (“AL-03” or “AL-04”). Ensure cooling fans run freely before mounting the replacement drive into the cabinet backplane.

Frequently Asked Questions

• Q: What does Alarm “AL-02” mean on an A06B-6077 SPM module?

  A: Alarm 02 indicates a main circuit speed deviation error—the actual spindle motor speed is deviating significantly from the speed command issued by the CNC controller.

• Q: Can I interchange an A06B-6077 module with an A06B-6117 (SPM-i) series drive?

  A: No. The A06B-6077 belongs to the standard ALPHA series, whereas the A06B-6117 belongs to the ALPHA i series. They utilize different communication cabling, control cards, and power bus topologies.

• Q: Are these original FANUC factory amplifiers?

  A: Yes, 100%. We only supply authentic OEM FANUC hardware, fully bench-tested under real load conditions prior to shipping.
