Product Introduction & Engineering Value
Servo amplifier failures usually appear as machine downtime rather than a simple component fault. A CNC machine may lose axis movement, generate servo alarms, or stop during acceleration when the amplifier can no longer regulate motor current correctly. The FANUC A06B-6240-H209 restores the drive path between the CNC controller and connected servo motors.
As part of the αiSV 80/80-B family, this module is designed for two-axis motion control applications. Replacement requires careful verification of CNC model, amplifier revision, motor compatibility, and parameter backup before returning the machine to production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FANUC |
| Part Number | A06B-6240-H209 |
| Product Type | Servo Amplifier Module |
| Series | αiSV 80/80-B |
| Axis Configuration | Dual-axis |
| Input Voltage | 283–339 VDC |
| Rated Input Current | 39 A at 283 V |
| Output Voltage | 200–240 VAC |
| Rated Output Current | 22.5 A (L-axis) / 22.5 A (M-axis) |
| Output Frequency Range | 0–550 Hz |
| Cooling Method | Fan cooling |
| Mounting Type | CNC electrical cabinet installation |
| Operating Temperature | 0–55°C |
| Compatible System | FANUC αi CNC servo architectures |
Field Application & The “Trench” Experience
A machining center producing precision mechanical components begins stopping during rapid axis movement. Operators report that the machine completes low-speed operations but trips when two axes accelerate simultaneously.
The maintenance team checks the servo motors, encoder feedback, and mechanical load conditions. The alarm history points toward the servo drive section. After confirming the original amplifier identification, technicians replace the failed unit with a tested FANUC A06B-6240-H209.
The recovery procedure includes:
- Confirming DC bus voltage.
- Installing the replacement amplifier.
- Restoring servo parameters.
- Checking axis movement.
- Running a production verification cycle.
The field lesson: servo amplifier replacement is not only a hardware swap. The amplifier, motor, CNC parameters, and mechanical system must operate as one matched motion package.
Specific application scenarios
- Multi-axis CNC machining centers — controlling feed axes requiring synchronized movement.
- Precision milling machines — maintaining accurate positioning during high-speed operations.
- FANUC-controlled automation cells — driving auxiliary servo axes and motion mechanisms.

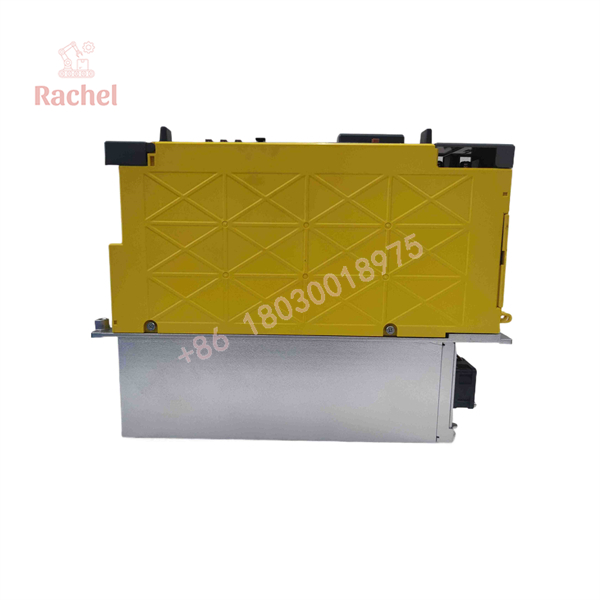

A06B-6240-H209

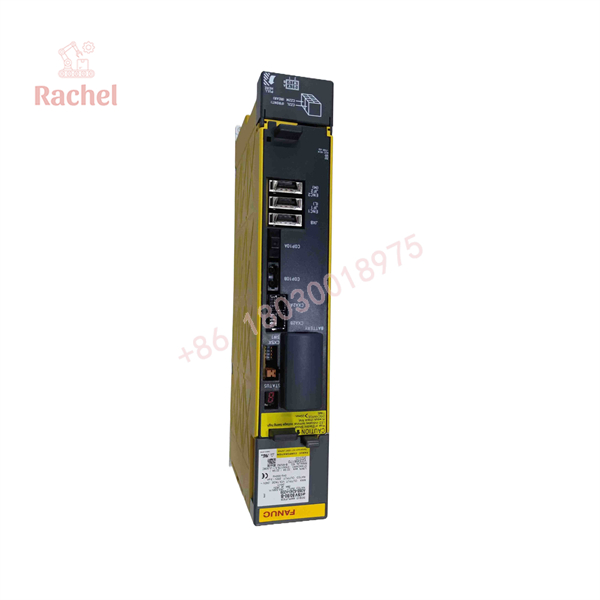

A06B-6240-H209
Transparency SOP: QA & Testing
A proper inspection process for New Surplus or Refurbished A06B-6240-H209 units should include electrical and functional verification.
Quality Check Procedure
1. Identification Review
- Confirm FANUC label.
- Verify:
- A06B-6240-H209
- αiSV 80/80-B designation
- Record revision information.
2. Physical Inspection
- Check housing condition.
- Inspect connectors.
- Examine cooling fans.
- Look for contamination or heat damage.
3. Electrical Testing
- Verify power circuit condition.
- Check DC bus section.
- Inspect output stage components.
- Test protection circuits.
4. Functional Testing
- Initialize on compatible FANUC equipment.
- Verify alarm status.
- Confirm axis drive operation.
- Test communication with CNC control.
5. Final Preparation
- Apply ESD protection.
- Secure connectors.
- Record test results.
FANUC A06B-6240-H209 units are commonly supplied as tested, refurbished, exchange, or surplus servo amplifier modules depending on inventory source.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing A06B-6240-H209 with similar amplifier models
The αiSV family contains many visually similar modules:
- A06B-6240-H208
- A06B-6240-H210
The difference is not cosmetic. Axis current capacity and motor matching change between models.
PRO TIP: Match the complete FANUC part number, not only the amplifier width or appearance.
⚠️ Trap #2 — Ignoring the “-B” revision
The H209 corresponds to the αiSV 80/80-B generation. Earlier non-B hardware may not always be interchangeable because CNC software compatibility and hardware revisions can differ.
Verify:
- CNC control generation
- Hardware list
- Existing amplifier revision
⚠️ Trap #3 — Replacing the amplifier before checking motor faults
A damaged motor or cable can destroy a replacement amplifier.
Inspect:
- Motor insulation resistance
- Servo cable condition
- Encoder feedback wiring
- Mechanical overload conditions
⚠️ Trap #4 — Ignoring cooling fan alarms
This amplifier relies on proper airflow. Fan failure or cabinet overheating can trigger servo faults or shorten amplifier life.
Dynamic FAQ
Q1: What is FANUC A06B-6240-H209?
The FANUC is an αiSV 80/80-B dual-axis servo amplifier module used for controlling FANUC AC servo motors in CNC systems.
Q2: How many servo axes does A06B-6240-H209 control?
This amplifier supports two servo axes, typically identified as L-axis and M-axis channels.
Q3: What input power does A06B-6240-H209 require?
The module uses a DC input range of approximately 283–339 VDC and provides 200–240 VAC servo output.
Q4: Can A06B-6240-H209 replace another FANUC servo amplifier?
Only after compatibility verification. Check:
- CNC controller model
- αiSV generation
- Motor specifications
- Axis configuration
- Software compatibility
Q5: What information should I provide when ordering a replacement?
Provide:
- Complete FANUC part number
- CNC model
- Existing amplifier photo
- Hardware list
- Connected servo motor models
This avoids receiving a similar-looking but incompatible amplifier.
Q6: Is New Surplus FANUC A06B-6240-H209 unused?
New Surplus normally means unused industrial inventory from previous purchasing cycles. Confirm label photos, storage condition, testing records, and warranty terms before purchase.
Q7: What warranty is available for refurbished A06B-6240-H209 units?
Warranty depends on supplier testing standards and stock condition. Refurbished units may include functional testing and limited warranty coverage, while New Surplus units depend on seller terms.
