Description
Product Introduction & Engineering Value
The FANUC A06B-6320-H332 is a FANUC servo amplifier used in CNC motion-control equipment. It operates as part of the closed-loop axis system, working with the CNC, servo motor, and feedback device to produce controlled machine movement.
This is not a part where “same family” is good enough for procurement. The H332 configuration must be matched against the original amplifier, motor model, CNC generation, axis assignment, and electrical cabinet arrangement. A physically similar amplifier can still be electrically or functionally unsuitable.
Technical Specifications
- Manufacturer: FANUC
- Part Number: A06B-6320-H332
- Product Category: CNC Servo Amplifier
- Series: FANUC Alpha i / related servo architecture
- Application: CNC axis control
- Motor Compatibility: FANUC-specific
- CNC Compatibility: System-dependent
- Feedback: FANUC servo feedback architecture
- Input Power: Verify against the exact nameplate
- Output Rating: Verify against FANUC documentation
- Axis Configuration: Machine-dependent
- Parameters: CNC/system dependent
- Installation: Electrical control cabinet
- Cooling: Forced-air/cabinet dependent
Identification matters
The A06B-6320-H332 should be ordered as a complete part number. Do not shorten it to “A06B-6320” when requesting a replacement.
For an exact replacement, compare:
Amplifier → Motor → CNC → Axis → Feedback → Power configuration
That chain determines whether the replacement is appropriate.
Field Application & the “Trench” Experience
A CNC machining center begins throwing intermittent servo alarms on its Y-axis. The maintenance team has an A06B-6320-H332 in spare inventory and schedules the replacement during a weekend shutdown.
The technician first backs up the CNC parameters and photographs the failed amplifier. The motor model and axis designation are checked against the machine drawings.
After installation, the amplifier initializes correctly. The axis is then tested at low speed before normal automatic operation is restored.
The important part was not the physical swap. It was matching the drive to the existing servo system before applying motor power.
Specific application scenarios
- CNC vertical machining centers — Feed-axis servo control for precision positioning.
- CNC horizontal machining centers — Maintaining legacy FANUC axis-control systems.
- Multi-axis production equipment — Supporting established servo architectures during maintenance.
- Machine-tool rebuilds — Preserving the original CNC platform while replacing failed drive hardware.

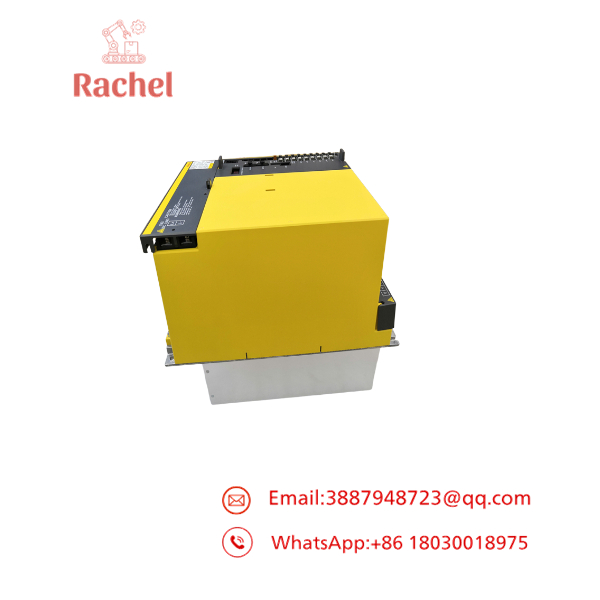

A06B-6320-H332

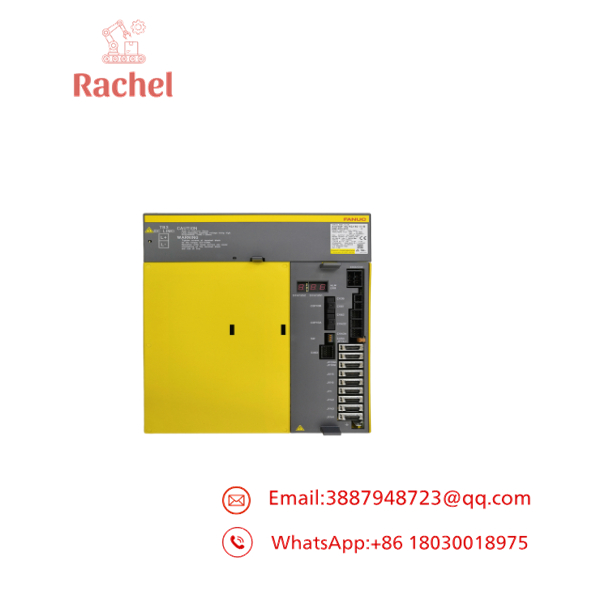

A06B-6320-H332
Transparency SOP: QA & Testing
For new-surplus or refurbished A06B-6320-H332 units, use a controlled servo-drive test procedure.
1. Part verification
- Confirm the full A06B-6320-H332 designation.
- Record serial number and hardware revision.
- Photograph the nameplate.
2. Physical inspection
- Check the power terminals.
- Inspect motor and feedback connectors.
- Inspect circuit boards.
- Check cooling components and heatsinks.
- Look for corrosion or previous repair.
3. Pre-power electrical checks
- Check for abnormal shorts.
- Verify appropriate input/output circuits.
- Inspect protection components where accessible.
4. Functional testing
- Connect to a compatible FANUC test setup.
- Verify initialization.
- Confirm CNC communication.
- Check diagnostic functions.
- Test controlled servo output with an appropriate motor.
5. Documentation
- Record test conditions.
- Record diagnostic results.
- Document serial number and revision.
For this class of hardware, a successful power-up is only the beginning of the test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by series number only.
“A06B-6320” is not enough. The complete designation must be matched.
PRO TIP: Send photographs of the original amplifier’s complete label when requesting a quotation.
⚠️ Trap #2 — Forgetting the motor model.
The servo amplifier’s suitability depends on the motor and CNC architecture. Confirm the motor model before installation.
⚠️ Trap #3 — Assuming the replacement contains the old machine parameters.
Machine-specific servo parameters are normally part of the CNC configuration. Back them up before hardware replacement.
⚠️ Trap #4 — Replacing the drive without checking the feedback chain.
Encoder/feedback problems can generate servo alarms that resemble amplifier failures. Inspect feedback cables and connectors before condemning the amplifier.
⚠️ Trap #5 — Skipping controlled commissioning.
After installation, verify the axis under controlled conditions before returning the machine to automatic production.
Dynamic FAQ
ANUC ?
It is a FANUC CNC servo amplifier used to control a compatible FANUC servo motor within an automated machine-tool axis.
Is it a motor?
No. A06B-6320-H332 is the amplifier/drive hardware, while the servo motor is a separate FANUC component.
Can I substitute another A06B-6320 amplifier?
Not automatically. The complete suffix, motor compatibility, CNC control, feedback system, and machine configuration must be checked.
What should I send a supplier for verification?
Provide the complete amplifier number, photographs of the original unit, FANUC CNC model, servo motor model, axis designation, and any current servo alarm codes.
Is refurbished FANUC hardware acceptable?
For legacy CNC equipment, refurbished servo amplifiers can be a practical maintenance option when they have been properly inspected and functionally tested.
What does “tested” need to mean?
For a servo amplifier, meaningful testing should include startup, initialization, communication/diagnostics, and controlled motor operation—not simply confirmation that LEDs illuminate.
How do I verify new-surplus status?
Request actual-unit photographs showing the FANUC label, complete A06B-6320-H332 number, serial information, connectors, cooling assembly, and overall condition.
What warranty should I request?
Ask for written coverage against functional failure, including startup, communication, and servo-output faults. For refurbished stock, request the corresponding test report.
