Description
Product Introduction & Engineering Value
A CNC system does not usually fail because of one single component. Power-related PCB faults can appear as unstable startup, random resets, control alarms, or intermittent communication problems between CNC modules. The FANUC A20B-2001-006506A serves as a replacement board option for maintaining older FANUC control systems without redesigning the machine electronics.
For aging CNC equipment, keeping the original board architecture is often the most practical repair path. Correct replacement depends on matching the complete part number, PCB revision, control generation, and machine builder configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FANUC |
| Part Number | A20B-2001-006506A |
| Product Type | CNC Printed Circuit Board Assembly |
| PCB Family | A20B Series |
| Application | FANUC CNC control systems |
| Function | Power/control circuit support |
| Installation | CNC cabinet rack or board mounting assembly |
| Interface | FANUC internal control connections |
| Construction | Industrial-grade PCB assembly |
| Replacement Category | Legacy CNC spare board |
| Compatibility | Determined by CNC model and hardware revision |
Note: FANUC A20B boards were produced in many variations. Exact interchangeability must be confirmed using the complete part number and installed CNC hardware information.
Field Application & The “Trench” Experience
A machine shop running older FANUC-controlled machining equipment begins experiencing random CNC resets during long production cycles. Operators report that the machine may run for several hours before suddenly losing control power and requiring a restart.
The maintenance team begins troubleshooting:
- Incoming electrical supply
- Cabinet cooling
- Power modules
- Internal PCB connections
After finding instability in the original control board assembly, technicians install a tested FANUC A20B-2001-006506A replacement.
The recovery process includes:
- Checking board identification.
- Installing the replacement PCB.
- Verifying power-related signals.
- Confirming CNC startup sequence.
- Running machine operation tests.
The field lesson: older CNC systems often fail intermittently before complete shutdown. Recording fault patterns can save significant troubleshooting time.
Specific application scenarios
- Legacy CNC machining centers — restoring original FANUC control electronics.
- Older turning machines — replacing unavailable PCB assemblies.
- Production equipment with long service cycles — extending machine operational life.

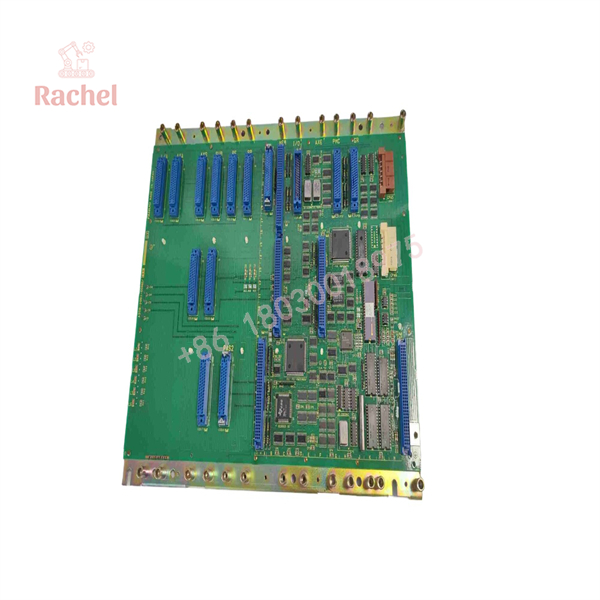

A20B-2001-006506A

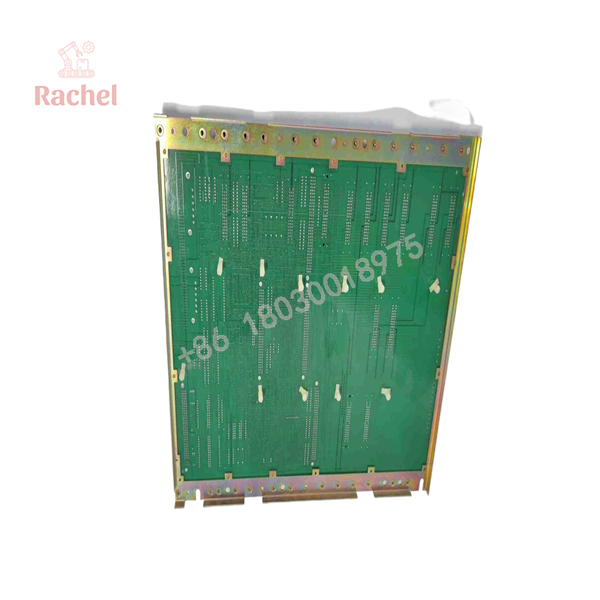

A20B-2001-006506A
Transparency SOP: QA & Testing
For New Surplus or Refurbished A20B-2001-006506A boards, inspection should focus on PCB condition and functional compatibility.
Quality Verification Process
1. Identification Review
- Confirm FANUC marking.
- Verify:
- A20B-2001-006506A
- Record board revision details.
2. PCB Condition Inspection
- Check solder joints.
- Inspect connectors.
- Examine IC components.
- Look for oxidation or contamination.
3. Electrical Evaluation
- Check power circuit sections.
- Verify component condition.
- Inspect capacitors and protection circuits.
4. Functional Testing
- Install on compatible FANUC hardware.
- Confirm startup behavior.
- Verify communication with related boards.
- Check alarm conditions.
5. Final Handling
- Use ESD-safe packaging.
- Protect edge connectors.
- Record inspection results.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Treating A20B boards as universal replacements
FANUC A20B boards can look almost identical while serving different functions.
Always verify:
- Complete part number
- Revision letter
- CNC model
- Board location
PRO TIP: A similar-looking PCB is not necessarily a compatible PCB.
⚠️ Trap #2 — Skipping parameter backup
Before replacing CNC control boards, secure available machine data:
- CNC parameters
- PMC data
- Offset information
- Machine settings
A hardware repair without proper data recovery can extend downtime.
⚠️ Trap #3 — Ignoring the original failure cause
A failed PCB may be a symptom rather than the root problem.
Inspect:
- Cabinet temperature
- Power quality
- Cooling fans
- Voltage stability
- Connector condition
⚠️ Trap #4 — Handling without ESD protection
Older FANUC boards contain sensitive electronic components.
Always use:
- Anti-static wrist protection
- ESD-safe packaging
- Proper storage procedures
Dynamic FAQ
Q1: What is FANUC -2001-006506A?
The FANUC is a CNC printed circuit board assembly used in legacy FANUC control systems.
Q2: What CNC systems use A20B-2001-006506A?
Compatibility depends on the exact FANUC CNC model, hardware revision, and machine builder configuration. The complete system identification should be checked before replacement.
Q3: Is A20B-2001-006506A a direct plug-in replacement?
Only when the original board number and system configuration match. Verify:
- PCB part number
- Revision
- Board location
- CNC series
Q4: What should I provide when sourcing this FANUC PCB?
Provide:
- Complete part number
- CNC model
- Existing board photo
- Label information
- Machine manufacturer details
Q5: Can a refurbished A20B-2001-006506A be used in production equipment?
Yes, if it has been properly inspected and function-tested. Testing should include PCB inspection, electrical verification, and operation testing on compatible FANUC hardware.
Q6: Is New Surplus A20B-2001-006506A unused?
New Surplus generally refers to unused industrial stock from previous inventory. Verify storage condition, packaging, label quality, and warranty coverage before purchase.
Q7: What are common causes of FANUC PCB failure?
Typical causes include:
- Aging electronic components
- Heat exposure
- Voltage instability
- Dust contamination
- Connector oxidation
- Cabinet cooling problems
A complete cabinet inspection is recommended when replacing legacy FANUC boards.
